12kV Automatic Recloser with Intelligent Protection for Reliable Power Distribution

What is a 12kV Auto Recloser?

Definition and Function in Power Distribution

A 12kV Auto Recloser (ACR) is a specialized, intelligent switchgear device designed for medium voltage overhead distribution lines. Functioning primarily as a pole-mounted circuit breaker, its core purpose is to protect the power distribution system by detecting and interrupting fault currents. Unlike standard breakers, an ACR is engineered with an automatic control mechanism that allows it to trip and reclose multiple times in rapid succession. This capability is essential for distinguishing between temporary issues and permanent line faults, ensuring that the 12kV distribution protection network operates efficiently without unnecessary downtime.

Importance of 12kV ACRs in Grid Reliability

In modern electrical infrastructure, grid reliability is paramount. 12kV Auto Reclosers play a critical role in minimizing the impact of momentary outages caused by transient factors such as lightning strikes, animal contact, or wind-blown debris. By automatically restoring power after a temporary fault clears, these devices significantly reduce the duration of power interruptions for urban and rural distribution networks. For utility providers, deploying reliable Vacuum Reclosers means fewer truck rolls for maintenance crews and improved service continuity indices, directly supporting Smart Grid automation goals.

How Automatic Reclosing Technology Works

The operation of a recloser relies on a sophisticated sequence of sensing and actuation. When the device detects an overload current or short circuit current, the vacuum interruption mechanism triggers to open the circuit and extinguish the arc.

• Fault Detection: The unit identifies an abnormality in the line.

• Tripping: The circuit opens to clear the fault.

• Reclosing: After a pre-set interval, the device automatically closes to test if the fault remains.

• Lockout: If the fault persists after a specific number of attempts, the recloser locks in the open position to isolate the permanent fault.

This process is managed by an intelligent electronic controller, often integrated with SCADA systems via GPRS or GSM, allowing for precise coordination and remote management of the distribution substation assets.

Key Features and Advantages of 12kV Auto Reclosers

Our 12KV Automatic Circuit Reclosers are engineered to enhance grid reliability and minimize downtime. By integrating advanced switching technology with robust outdoor housing, we ensure stable power distribution in even the most demanding environments.

Vacuum Interruption and Arc Quenching Technology

At the core of our reclosers lies precision-engineered vacuum interruption technology. Unlike oil or air-insulated switches, vacuum interrupters offer superior dielectric strength and rapid arc recovery. When a fault occurs, the contacts separate within a vacuum bottle, extinguishing the arc at the first current zero.

This design ensures a long mechanical service life and reduces the need for frequent maintenance. For a deeper understanding of this mechanism, you can explore the specific application of vacuum circuit breaker technology in modern distribution systems.

• High Dielectric Strength: Excellent insulation properties in a compact design.

• Maintenance-Free: Sealed contacts prevent contamination and wear.

• Safety: No risk of fire or explosion associated with oil-filled units.

Magnetic Actuator vs. Spring Operating Mechanisms

We offer flexible operating mechanisms to suit different utility requirements. Choosing between a magnetic actuator and a traditional spring mechanism depends on your specific maintenance capabilities and operational frequency.

Fast-Breaking Performance and Protection Coordination

Speed is critical when protecting overhead distribution lines. Our 12kV Auto Reclosers feature fast breaking capabilities to isolate fault currents before they cause permanent damage to the infrastructure.

The intelligent controller allows for precise protection coordination. It distinguishes between transient (temporary) faults and permanent faults.

• Transient Faults: The unit trips and recloses automatically to restore power.

• Permanent Faults: The unit locks out after a set number of operations to isolate the section.

• Selective Coordination: Works seamlessly with downstream fuses and sectionalizers to minimize the outage area.

Durability and Weather Resistance for Outdoor Use

Designed for outdoor high voltage applications, our pole-mounted ACR units are built to withstand harsh global climates. Whether installed in humid tropical zones or freezing industrial areas, the housing ensures consistent performance.

• Enclosure Material: High-grade stainless steel or UV-resistant epoxy resin.

• Protection Class: IP65 or higher, preventing dust and water ingress.

• Corrosion Resistance: Treated to resist salt spray and pollution.

• Insulation: Options for air or solid insulation (SF6-free) to meet environmental standards.

Common Types and Models of 12kV Reclosers

We understand that every power distribution network has unique demands, which is why 12kV auto reclosers come in various configurations. While the core function of clearing transient faults remains consistent, the physical design and control capabilities vary to suit specific installation environments, from rural overhead lines to complex urban substations.

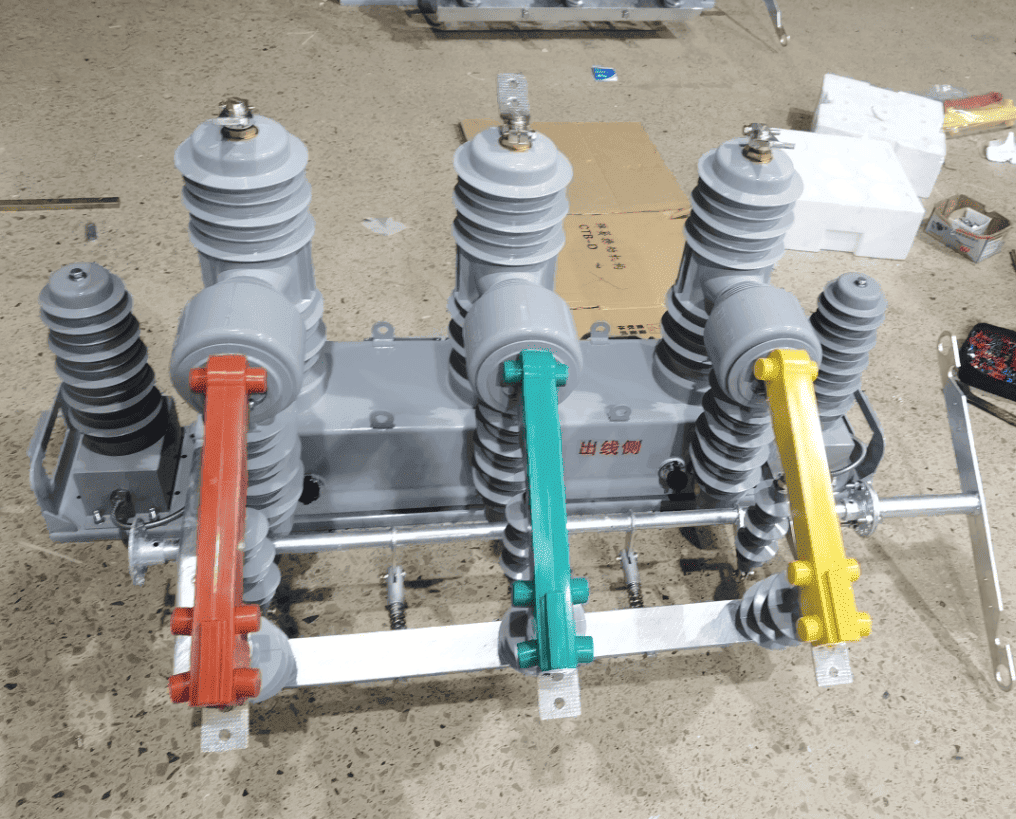

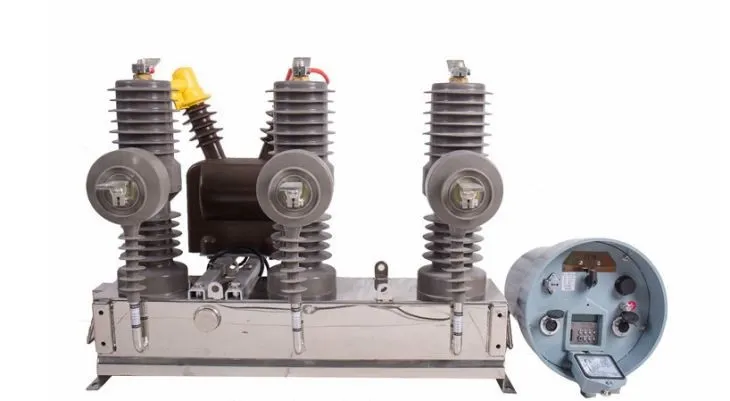

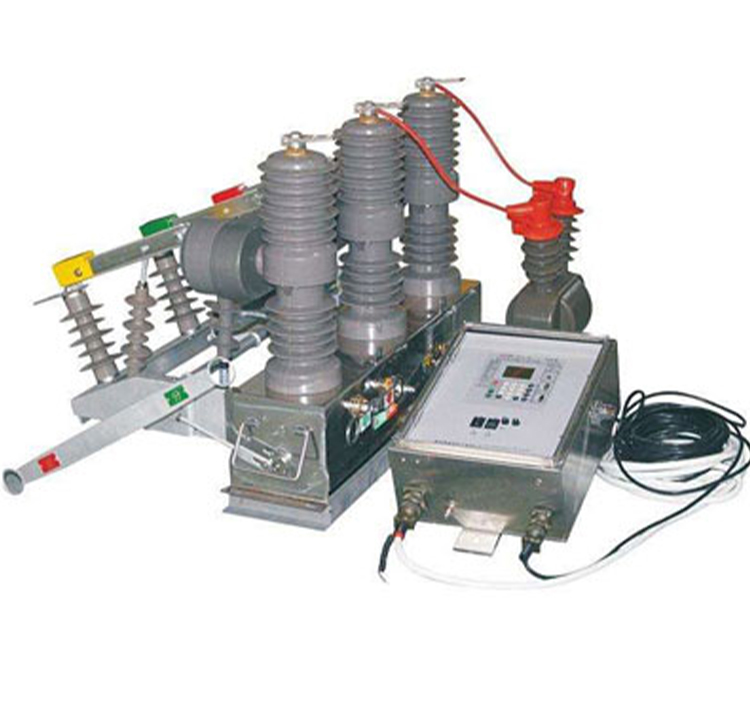

ZW32-12 Series Outdoor High Voltage Reclosers

The ZW32-12 series represents the industry standard for outdoor high voltage protection. As our flagship model, this vacuum circuit breaker is engineered specifically for 12kV distribution systems. It combines a ruggedized housing with advanced vacuum interruption technology, making it ideal for harsh outdoor elements.

• Design: Fully sealed structure to prevent moisture ingress.

• Operation: typically paired with a spring or magnetic actuator for reliable switching.

• Application: Primary protection for overhead distribution lines.

This model is the workhorse of modern grids, designed to handle a rated voltage of 12kV and rated currents typically ranging from 630A to 1250A.

Pole-Mounted vs. Kiosk-Type Recloser Units

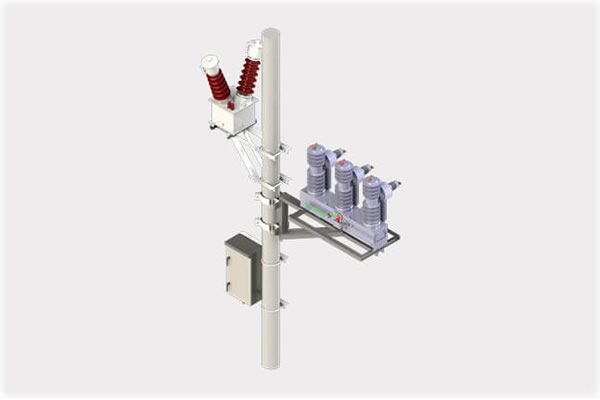

Installation location dictates the form factor of the recloser. The pole mounted ACR is the most prevalent choice for overhead networks, designed to be lightweight and compact for installation directly on utility poles. This setup minimizes the footprint and keeps high-voltage components out of reach.

In contrast, a kiosk recloser or pad-mounted unit is installed at ground level, often used where overhead lines transition to underground distribution lines. When reviewing high voltage switchgear technical points, selecting between these mounting styles depends heavily on your local terrain and accessibility requirements.

Three-Phase Vacuum Circuit Breaker Reclosers

For most utility applications, the three-phase recloser is the standard. These units operate all three phases simultaneously, ensuring that if a fault occurs on one line, the entire circuit is interrupted to prevent unbalanced loads or single-phasing issues.

Our vacuum circuit breaker technology is central to these units. By extinguishing the arc within a vacuum bottle, we ensure:

• High dielectric strength with zero risk of fire or explosion.

• Maintenance-free operation for the interrupter unit.

• Extended mechanical service life, often exceeding 10,000 operations.

Smart Reclosers with Digital Control and Monitoring

A modern 12kV Auto Recloser is more than just a switch; it is an intelligent node in the Smart Grid. These units are paired with a sophisticated controller (FTU/RTU) that provides digital control and real-time monitoring.

Key capabilities include:

• SCADA Integration: Supports protocols like Modbus, DNP3, and IEC 60870-5-104.

• Fault Analysis: Distinguishes between momentary outage events and permanent fault currents.

• Remote Operation: Allows operators to open or close the switch from a central control room via GPRS/GSM.

By integrating voltage sensors and current transformers, these smart units allow for precise sectionalizing, significantly reducing downtime for the end consumer.

Technical Specifications and Parameters

When selecting a 12kV Auto Recloser, understanding the precise technical data is non-negotiable. We engineer our units to meet rigorous international standards, ensuring they can handle the stresses of modern power distribution systems. Below are the critical parameters defining the performance of our ZW32-12 series.

Rated Voltage and Current Capacity (630A/1250A)

The core specification for our outdoor high voltage reclosers is the rated voltage of 12kV, designed for medium voltage networks operating at 50Hz or 60Hz. We offer two primary current ratings to match your specific load requirements:

• 630A: Ideal for standard rural or urban distribution lines with moderate load densities.

• 1250A: Built for heavier industrial feeders or main backbone lines requiring higher load current capacity.

These ratings ensure the vacuum circuit breaker operates within thermal limits without overheating, maintaining stability even during peak demand.

Short-Circuit Breaking and Making Capacity

Reliability during a fault is where quality counts. Our reclosers are tested to interrupt short circuit currents effectively, preventing equipment damage and widespread outages.

• Rated Short-Circuit Breaking Current: Options include 12.5kA, 16kA, and 20kA. This defines the maximum fault current the unit can safely interrupt.

• Rated Short-Circuit Making Current: Typically 2.5 times the breaking current (peak), ensuring the device can close onto a fault safely.

• Fast Breaking: The mechanism ensures rapid arc quenching, minimizing the duration of fault currents on the line.

Insulation Levels and Dielectric Strength

To withstand voltage surges and lightning strikes, our insulation systems are robust. We utilize high-grade epoxy resin or silicone rubber for external insulation, ensuring high dielectric strength.

• Power Frequency Withstand Voltage (1 min): 42kV (Dry) / 34kV (Wet).

• Lightning Impulse Withstand Voltage (BIL): 75kV.

This high level of insulation protects the internal vacuum interrupters and ensures safety for line personnel. Just as we rigorously test vacuum contactor performance to ensure reliability, every recloser undergoes strict insulation testing before leaving our factory.

Environmental Operating Conditions and Limits

Our pole-mounted ACRs are built for the harsh reality of outdoor environments. Whether it is scorching heat or freezing cold, the mechanical service life of 10,000 operations remains consistent.

These specs ensure that the 12kV Auto Recloser functions correctly in diverse climates, from humid coastal regions to arid deserts.

Installation and Maintenance Requirements

Proper installation and disciplined maintenance are critical for maximizing the mechanical service life of our 12kV Auto Recloser. While the ZW32-12 series is designed for rugged outdoor high voltage environments, following correct protocols ensures safety and grid stability.

Standard Pole-Mounted Installation Procedures

The ZW32-12 is primarily designed as a pole-mounted unit. Installation should be performed by qualified personnel to ensure the vacuum circuit breaker operates correctly under load.

• Mounting Height: Install the unit at a height that prevents unauthorized access but allows visibility for the status indicators.

• Orientation: Ensure the recloser is level. The operating mechanism box must be sealed tightly to maintain its IP rating against rain and dust.

• Lifting: Use the designated lifting lugs. Never lift the unit by the bushings or the vacuum interrupter poles.

• Grounding: Connect the grounding terminal on the casing to the pole’s earthing system immediately.

External Accessories and Connection Components

To create a complete protection system, the 12kV Auto Recloser requires specific external components. We integrate these to ensure the controller receives accurate data and the equipment remains safe from surges.

• Surge Protection: You must install a lightning arrester on both the source and load sides. This protects the vacuum interrupter from over-voltage caused by lightning or switching surges.

• Isolation: An air-break disconnect switch is often installed in series to provide a visible break point for maintenance safety.

• Support Insulation: High-quality post-type insulators are used to secure the jumper wires and drop leads, preventing line sagging that could stress the recloser bushings.

• Control Cable: The umbilical cable connecting the recloser to the control box (FTU) must be shielded and routed inside a conduit.

Routine Maintenance and Testing Protocols

One of the biggest advantages of our vacuum technology is that the interrupter itself is sealed for life. However, the operating mechanism and insulation require periodic checks to ensure the rated voltage and breaking capacity remain within spec.

Safety Precautions for High Voltage Installation

Working with medium voltage equipment demands strict adherence to safety rules. Before touching the 12kV Auto Recloser for any hands-on work:

1. Disconnect: Open the upstream disconnect switch to isolate the unit from the power distribution system.

2. Verify: Use a voltage detector to confirm the line is de-energized.

3. Discharge: Even after disconnection, residual charge may remain. Ground all phases effectively.

4. Disable Auto-Reclosing: If working on the line, the reclosing function on the controller must be blocked to prevent accidental restoration of power.

Applications of 12kV Auto Reclosers

Our 12kV auto reclosers are engineered to serve as the backbone of modern medium voltage networks. We design these units to handle the rigorous demands of outdoor environments while providing intelligent control for various grid configurations. Whether it is a sprawling rural network or a dense industrial zone, these devices ensure power continuity and system safety.

Overhead Distribution Line Protection

The primary battlefield for our 12kV Auto Recloser is the overhead distribution line. These lines are constantly exposed to environmental hazards like lightning strikes, falling tree branches, and wildlife interference. In these scenarios, the majority of faults are temporary.

Instead of shutting down an entire feeder for a momentary issue, our recloser detects the fault currents and performs a rapid open-close sequence. If the fault clears, power is restored automatically. This capability significantly reduces the need for maintenance crews to patrol lines for minor issues, effectively minimizing momentary outages and improving service reliability indices.

Substation Automation and Feeder Protection

In distribution substation environments, our reclosers function as critical feeder protection devices. When integrated with an intelligent controller (FTU/RTU), they become a vital part of Substation Automation systems. They allow operators to monitor load currents and voltage ratings remotely, ensuring the health of the power distribution system.

By acting as a sectionalizer or a primary breaker at the substation outlet, these units coordinate with other protective devices. This precise coordination ensures that if a permanent fault occurs, only the affected section is isolated. For a deeper understanding of how these protection mechanisms function within the broader grid, understanding the basics of a high voltage circuit breaker is essential for proper system design.

Rural and Industrial Power Grid Management

Managing power in rural and industrial settings presents unique challenges. Rural lines are often long and radial, meaning a single fault near the source could blackout miles of customers. We deploy pole-mounted ACRs along these lines to segment the grid. This ensures that a fault at the far end of a rural line does not trip the main breaker, keeping the rest of the community powered.

For industrial applications, power stability is non-negotiable. Our vacuum reclosers protect sensitive industrial equipment from damaging overload currents and voltage sags. By automatically isolating faults, we help factories maintain continuous operations and avoid costly production stoppages.

Selection Guide: Choosing the Right 12kV Auto Recloser

Selecting the correct protection equipment is critical for maintaining a stable power distribution system. We understand that every grid has unique demands, and choosing a 12kV Auto Recloser involves balancing technical performance with long-term operational value. Here is how we recommend approaching the selection process.

Matching Specifications to Grid Requirements

The first step is ensuring the outdoor high voltage equipment aligns perfectly with your network’s electrical parameters. An undersized unit can lead to catastrophic failure, while an oversized one is an unnecessary expense. You must verify that the rated voltage and continuous load current match your specific application, whether it is for urban and rural distribution or industrial feeders.

For a detailed breakdown of these parameters, you can refer to our comprehensive auto recloser guide.

Key Specification Checklist:

• Rated Voltage: Ensure the unit is rated for 12kV (suitable for 10kV-15kV systems).

• Rated Current: Choose between 630A for standard lines or 1250A for heavy-load trunks.

• Breaking Capacity: The short circuit current rating (typically 12.5kA, 16kA, or 20kA) must exceed the maximum potential fault current at the installation site.

• Frequency: Confirm compatibility with 50Hz or 60Hz systems.

Evaluating Manufacturer Quality and Certifications

Reliability is non-negotiable. When we manufacture our vacuum circuit breaker reclosers, we adhere to strict international standards. You should look for suppliers who provide transparent testing data and valid certifications. A high-quality pole-mounted ACR should feature a robust housing—typically stainless steel or UV-resistant epoxy—to withstand harsh outdoor elements without corrosion.

Quality Indicators:

• ISO 9001 Certification: Ensures consistent manufacturing processes.

• Type Test Reports: Verifies performance under extreme conditions.

• Mechanical Service Life: Look for units rated for 10,000 operations to ensure longevity.

• Core Technology: Ensure the use of advanced vacuum interrupters for arc quenching.

Cost-Benefit Analysis and Long-Term Reliability

While the initial purchase price is a factor, the total cost of ownership matters more. A cheaper unit that requires frequent maintenance or fails to clear a momentary outage effectively will cost more in the long run due to downtime and repair crews.

Investment Considerations:

Investing in a premium 12kV Auto Recloser ensures that your distribution substation and overhead lines remain protected, minimizing revenue loss from power interruptions.
