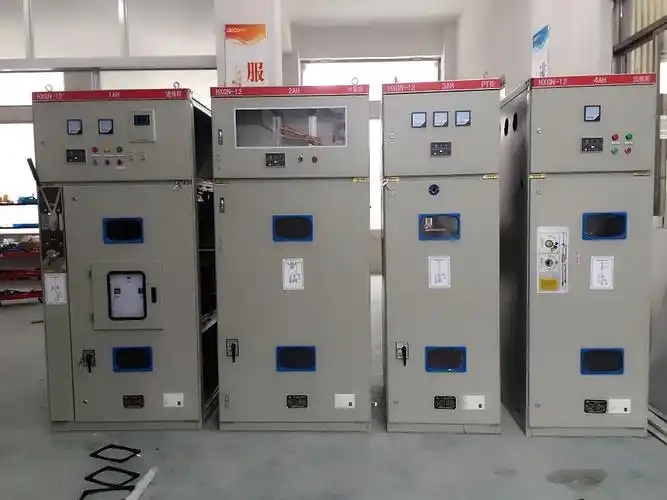

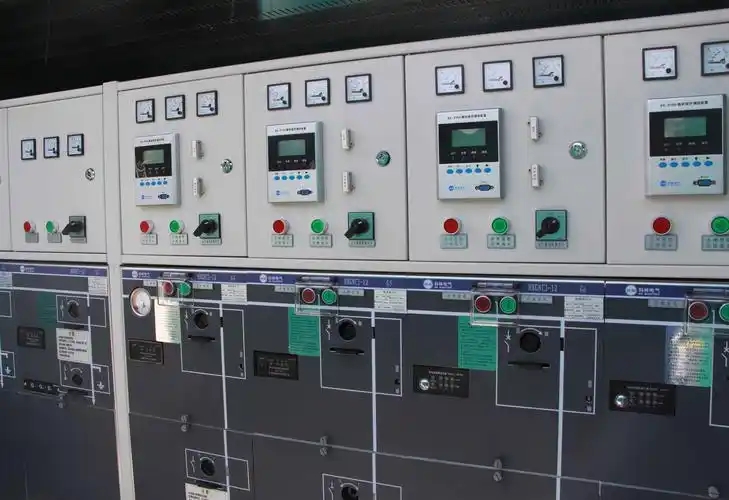

Ring Main Unit (RMU) for Smart Grids

A Ring Main Unit helps control and protect electricity in smart grids. You can find these units in medium-voltage networks. They help manage power safely and efficiently. Most RMUs work with voltages from 7,200 to 36,000 volts.

You can use RMUs inside buildings or outside. Their small, closed design makes this possible. These units help automate and make power distribution more reliable.

Key Takeaways

• Ring Main Units (RMUs) help control medium-voltage electricity. They protect the power and make sure it works well in smart grids.

• RMUs let power move in different ways. They can quickly stop problems without shutting down everything.

• RMUs have automation features that make things easier. You can watch and control them from far away. This means fewer people need to go to the site.

• Good monitoring tools in RMUs find problems early. This stops outages and keeps the system working well.

• RMUs are small and fit into tight places in cities. They work well even in small spaces.

• RMUs help systems grow easily as more power is needed. You do not need to change everything to add more power.

• Using RMUs saves money by losing less energy. They also need less fixing, which costs less.

• RMUs have strong communication protocols for sharing data fast. This helps manage the grid better and respond quickly.

Ring Main Unit Overview

Definition

A Ring Main Unit is a small device for switching power. It helps control and protect medium-voltage electricity. You often see it in networks with 11kV to 36kV. This unit links power lines in a ring shape. Electricity can move in more than one way. If one path stops working, another keeps the power on. You can use a Ring Main Unit inside or outside. Its sealed and strong design allows this. It fits well in places with little space, like cities or factories.

Components

You will find some main parts inside a Ring Main Unit:

• Switches: These help you turn power lines on or off safely. Most units have two switches. They connect the load to one or both main wires.

• Fusible Switch: This part sends power to a transformer. It also protects the transformer from problems.

• Insulation: Different types of insulation keep people safe and the system working well. The main types are:

• Gas-insulated (uses SF6 or green gas): Small, reliable, and easy to care for.

• Air-insulated: Uses air, costs less, but needs more space and can be affected by weather.

• Solid-insulated: Uses solid stuff, safe for nature, and works well, but is hard to fix.

• Hybrid: Mixes features from gas and air insulation.

• Protection Devices: These act fast when there is a problem. They cut off the bad part to keep the rest safe.

Tip: The small size of Ring Main Units makes them simple to put in and take care of, especially where space is tight.

Operation

You use a Ring Main Unit to control how power moves in a ring network. This setup lets you connect power from different ways to local transformers or loads. You can turn lines on or off for repairs without stopping the power. If something goes wrong, the unit quickly cuts off the bad part and uses a backup line. This keeps power on for homes, stores, and important places like hospitals or airports.

You will see Ring Main Units at important spots in the network. These include small factories, solar and wind plants, substations, airports, hospitals, malls, and office buildings. Their design helps keep power running safely and smoothly, even during repairs or problems.

RMU in Smart Grids

Automation

You can make your power grid smarter by using automation features in a Ring Main Unit. Automation lets you control and manage the flow of electricity without being on-site. When you use automation, you get many benefits:

• You can detect faults quickly and fix them faster.

• You can control the unit from far away, which saves time and keeps workers safe.

• You can monitor the grid in real time, so you always know what is happening.

• Motorized units let you switch loads and isolate faults without touching the equipment.

• You can connect the unit to SCADA or IoT systems for better control and predictive maintenance.

Note: Automation in smart grids helps you keep the lights on, even when something goes wrong. You do not need to send a worker to the site every time there is a problem.

Monitoring

Modern smart grids need strong monitoring tools. A Ring Main Unit gives you many ways to watch over your system. You can track important data and spot problems before they get worse. Here are some key monitoring features:

• Real-time checks of electrical values help you see how well your system works.

• Temperature sensors watch for overheating in important parts.

• Special sensors can find small problems in insulation before they cause big trouble.

• Gas-insulated units check the gas level to keep the system safe.

• You can see the status of switches at any time.

• The unit tracks the environment, like temperature and humidity, that might affect performance.

• Advanced systems find faults fast and tell you where they are.

• Smart alarms and logs help you study events and plan fixes.

• Secure communication keeps your data safe from hackers.

Tip: Good monitoring helps you avoid outages and keeps your grid running smoothly.

Control

You can control your smart grid better with a Ring Main Unit. Control means you can change how power flows, switch lines, and protect your system from faults. You do not need to be at the site to do this. You can use remote controls to open or close switches and reroute power. This makes your grid more flexible and safe.

• You can switch power lines on or off from a control room.

• You can isolate a problem area without shutting down the whole network.

• You can use data from monitoring to make smart choices about repairs and upgrades.

When you have strong control, you keep your grid safe, reliable, and ready for the future.

RMU Benefits

Reliability

You want your power to work all the time. A Ring Main Unit helps you do this. It keeps your network steady and makes sure electricity does not stop. RMUs help you control faults and switch to backup lines fast. This means your lights stay on, even if something breaks.

Here is how RMUs make your network more reliable:

You also get control over circuits and can find faults fast. These features help you avoid long blackouts. RMUs make your system safer and work better. You spend less fixing things and enjoy steady power more.

Tip: RMUs keep power on for homes, schools, and hospitals.

Safety

You need to keep workers and equipment safe. RMUs help you do this. Most units have metal cases that are sealed. These keep out dust and water. You lower the risk of electric shock and arc faults. Gas-insulated RMUs protect even more. You can work near them and feel safe.

• RMUs protect against electrical faults. This stops accidents and keeps equipment safe.

• You can fix parts of your network without turning off everything.

• The sealed case keeps out dirt and water. Your system stays safe and lasts longer.

• You save money and have less downtime. Repairs are easier and safer for everyone.

Note: RMUs protect workers and lower the risk of electric shock.

Flexibility

You want your power system to change when needed. RMUs give you this flexibility. You can add or remove units as you need. The design lets you connect new lines or loads easily. You do not need to rebuild your network.

You get a "plug-and-play" system. This makes upgrades and changes simple. You can use RMUs in cities, factories, or far away places. The small size fits tight spaces. You control your network and change it when you want.

Tip: RMUs help you build a smart grid that grows with you.

Efficiency

You want your power system to use energy in a smart way. A Ring Main Unit helps you do this. It helps your grid waste less energy and work better. You also save money and help the earth.

A Ring Main Unit gives you many ways to make things more efficient:

• Reduces Power Losses: The unit has special switches and protection devices. These parts help stop energy from being lost as it moves through the network.

• Speeds Up Fault Isolation: If there is a problem, the unit finds it fast. It quickly separates the problem part. This keeps the rest working and stops energy from being wasted.

• Supports Load Management: You can balance how much power each part uses. This means no area gets too much power. You use energy more evenly across the network.

• Enables Remote Operation: You do not need to send workers out for every change. You can control the unit from far away. This saves time, cuts down on travel, and uses less energy.

• Improves Maintenance: The unit tells you when it needs fixing. You can plan repairs before things break. This keeps your system running well and stops wasted energy.

Tip: Using a Ring Main Unit makes your grid smarter and more efficient. You get power where it is needed and waste less along the way.

You also help the planet by using less fuel and producing less pollution. You spend less money on repairs and energy bills. Your customers get steady power, and you meet new energy goals.

Here is a simple look at how a Ring Main Unit helps with efficiency:

A Ring Main Unit does more than just switch power. It helps you build a better power system. It costs less and helps keep the world clean.

RMU Features

Remote Operation

You can control your power system from anywhere. Advanced Ring Main Units let you manage your grid without being there. You get quick access to important data. You can make changes fast. These units work with smart grid platforms. They support many ways to talk to other devices. You can watch the system, switch lines, and fix problems right away. Remote operation helps you use automation. This keeps your network safe and reliable.

• You can check switches and devices from your control room.

• You can use remote monitoring to find issues early.

• Smart features help you study data and improve your network.

Remote operation saves time and keeps workers safe. You do not need to send someone out for every job.

Compact Design

You want equipment that fits in small spaces and works well. The compact design of a Ring Main Unit makes it easy to install. You can put these units in small rooms or busy city areas. The modular build lets you add or remove parts when needed. You save space and get more use from each unit.

You spend less time setting up the unit. You also need less space, which helps in cities. Maintenance is easy, so your system works longer.

Tip: Compact RMUs help you upgrade your grid without big changes to your building or site.

Scalability

You want your power system to grow as you need. Scalability means you can make your network bigger easily. Ring Main Units help smart grids grow. You can add new units or features when more power is needed. Utilities pick RMUs because they save money and work well for modern networks.

You can start with a small system and add more units later. You do not need to rebuild your network. This flexibility helps you reach new energy goals and keep up with new technology.

Scalability helps you prepare your grid for the future and handle changes in demand.

Communication

Communication is very important in modern Ring Main Units. You need good tools to help your smart grid work well. Ring Main Units use digital communication to send data to control centers and other devices. This lets you manage your power system right away.

You can connect Ring Main Units to different networks. These networks include fiber optic cables, wireless systems, and Ethernet. Each one has its own good points. Fiber optic cables move data fast and keep it safe. Wireless systems help you reach far away places. Ethernet works best in cities and buildings.

Tip: Good communication helps you find problems early and fix them fast.

Here are some common communication protocols for Ring Main Units:

• IEC 61850: This protocol lets devices in substations talk to each other. It helps share data quickly and safely.

• DNP3: You use this for remote control and checking the system. It works well over long distances.

• Modbus: This simple protocol connects Ring Main Units to many types of equipment.

• IEC 60870-5-104: This protocol helps control centers talk to field devices.

Strong communication gives you many benefits:

Smart Ring Main Units send real-time data to your control room. You get updates about voltage, current, temperature, and switch status. You use this data to make smart choices. For example, you can change how power flows if a line fails. You can also plan repairs before something breaks.

You do not have to visit each Ring Main Unit to check it. The unit sends alerts if it finds a problem. This saves you time and keeps workers safe.

Note: Secure communication is very important. Always use strong passwords and encryption to keep your data safe.

With good communication, your grid becomes smarter and more reliable. You can grow your network and add new technology. You meet the needs of your customers. Communication turns your Ring Main Unit into a smart device that helps you every day.

Implementation

Installation

You want your power system to work safely and last a long time. Installing a Ring Main Unit the right way helps you reach this goal. You need to follow clear steps to make sure everything works well from the start.

1. Choose the right place. Look at the area for good airflow, low humidity, safe temperature, and little dust.

2. Build a strong base. Make sure the ground is flat and can hold the weight of the unit.

3. Connect the wires. Follow all safety rules. Check that every wire is tight and the unit is grounded.

4. Protect the equipment. Seal the unit well. Add any extra safety devices you need.

5. Label everything. Put clear signs and warnings on the cabinet so everyone knows what to do.

6. Test the system. Run checks on all connections and see how the unit works under load.

7. Upkeep plan. Set up a schedule for regular checks on seals, cleanliness, and inside parts.

Tip: Careful installation keeps your system safe and helps you avoid problems later.

Maintenance

You want your Ring Main Unit to last for many years. Good maintenance helps you find and fix small issues before they become big problems. You should use a mix of simple checks and advanced tools.

• Check the unit often to spot any early signs of trouble.

• Lubricate moving parts so switches work smoothly.

• Use special tools to test the health of the unit.

• Make a schedule for all your checks and repairs. This helps you balance daily work with long-term care.

Regular care keeps your power flowing and your equipment in top shape.

Compatibility

You need your smart grid devices to work together. A Ring Main Unit fits well with modern systems. It connects to SCADA for real-time control and monitoring. You can use common communication protocols like DNP3 and IEC 61850. These help your devices share data quickly and safely. Newer units also improve how well your grid runs by making communication smooth and reliable.

Note: Good compatibility means you can upgrade your grid without replacing everything.

Cost

When you plan to use a Ring Main Unit (RMU) in your smart grid, you need to think about cost. The price of an RMU can change based on many things. You should look at both the money you spend at the start and the money you save over time.

Key Cost Factors for RMUs:

• Initial Purchase Price: This is the money you pay to buy the RMU. The price depends on the voltage, type of insulation, and extra features like automation or remote control.

• Installation Costs: You need to pay for setting up the RMU. This includes labor, tools, and safety checks. If you choose a compact RMU, you may save money because it fits in small spaces and needs less work to install.

• Operation and Maintenance: RMUs do not need much care. You spend less on regular checks and repairs. Gas-insulated units often last longer and need less work than air-insulated ones.

• Upgrades and Expansion: If you want to add more units later, RMUs make it easy. You do not need to rebuild your whole system. This saves money in the future.

• Energy Savings: RMUs help you use energy better. You lose less power, so you pay less for wasted electricity.

Tip: Always compare the total cost over the life of the RMU, not just the price you pay at the start.

Here is a simple table to help you see the main cost parts:

You may see that RMUs cost more at first than old switchgear. Over time, you save money because you spend less on repairs, upgrades, and wasted energy. You also avoid long power outages, which can cost a lot.

Note: If you plan well, you can get the best value from your RMU. Look for units that match your needs and budget.

You should talk to suppliers and ask for a full cost breakdown. This helps you make a smart choice. Remember, the right RMU can save you money and keep your power system strong for many years.

Applications

Urban Networks

Ring Main Units are used in many city power systems. They help control electricity in busy places with little space. You can find them in underground power systems and compact substations. They are also inside large buildings. Their small size and strong build make them great for cities.

• City power networks use these units to keep electricity steady.

• Malls and office buildings need them for safe power.

• Underground cable networks use them because they fit in tight spots.

• Metros and airports use them for lights and signals.

In Riyadh, a test project used smart RMUs to find problems fast and watch the system from far away. This helped the city keep power safe and steady, even when it was busy.

Industrial Projects

Factories and plants need steady power. RMUs give them a reliable supply. They protect machines from too much power or short circuits. You can use them in underground cables or big industrial sites.

• Factories use RMUs to run machines and keep work going.

• Hospitals and airports need them for backup power and safety.

• Wind and solar farms use them to connect to the grid.

• Smart RMUs have sensors for real-time checks, so you find problems early.

Smart RMUs help you watch your system all the time. You can fix problems before they stop your work. This keeps your plant safe and your power steady.

Utility Upgrades

When you upgrade your power grid, you want equipment that works with new technology. RMUs help you make your network modern. They support smart grids and let you add renewable energy easily.

• Utilities use RMUs to make the grid work better and waste less energy.

• You can add solar or wind power to your grid without much trouble.

• RMUs help you manage loads and find problems fast.

• Their design lets you add more units as your city gets bigger.

In Saudi Arabia, the national power company started using smart RMUs to make their medium-voltage networks digital. The project wants to cover all big cities by 2027. This will make the grid smarter and more reliable.

You can see that a Ring Main Unit works in many places. It helps you build a safer, smarter, and more flexible power system.

You help make power systems smarter. The Ring Main Unit lets you update your grid. It makes your network more reliable and helps use renewable energy. You can watch your system in real time. You can control it from far away and save money. If you want your network ready for the future, try these steps:

• Teach your team how to use RMUs safely.

• Plan regular checks and tests.

• Add digital RMUs to your grid.

FAQ

What is the main job of a Ring Main Unit (RMU)?

You use an RMU to control and protect medium-voltage power. It helps you switch power lines, keep electricity flowing, and protect your system from faults.

Can you install an RMU outdoors?

Yes, you can. RMUs have sealed, weatherproof cases. You can place them outside in harsh weather or inside buildings. Always check the manufacturer’s guidelines for best results.

How does an RMU help during a power fault?

An RMU quickly finds and isolates the faulty part. You keep the rest of your network running. This means fewer outages and faster repairs.

Do RMUs work with renewable energy sources?

Yes! You can connect RMUs to solar, wind, or other renewable sources. They help you manage and protect these connections in your smart grid.

How often should you maintain an RMU?

You should check your RMU at least once a year. Some smart RMUs send alerts when they need care. Always follow the maintenance plan from your supplier.

What types of insulation do RMUs use?

You can find RMUs with gas, air, solid, or hybrid insulation. Each type has its own benefits. Gas-insulated units are compact and reliable. Air-insulated units cost less but need more space.

Can you control an RMU remotely?

Yes, you can. Many RMUs support remote control. You use SCADA or other systems to switch lines, monitor status, and fix problems without visiting the site.

Are RMUs safe for workers?

RMUs have strong, sealed cases. They protect you from electric shocks and arc faults. You can work near them safely if you follow safety rules.
