HGGN-12 Medium Voltage Ring Main Unit – Compact SF6 Gas-Insulated RMU

Introduction

The HGGN-12 medium voltage ring main unit is engineered for safe, compact, and efficient power distribution in modern urban grids and renewable energy systems. With a sealed SF6-insulated enclosure and flexible modular design, it is widely used in secondary distribution networks such as compact substations, wind farms, and city buildings.

Product Overview

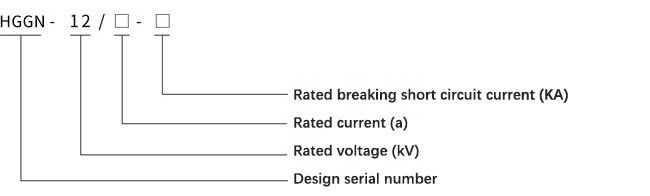

HGGN-12 is a fully enclosed, SF6-insulated, metal-clad switchgear designed for three-phase AC 50Hz, rated voltage 12kV systems. It enables ring network or terminal power supply, offering protection and sectionalizing for medium-voltage circuits. The system can be configured with load break switches, vacuum circuit breakers, and fuse combinations as needed.

Key Features

• Fully sealed and insulated: Ensures personnel safety and environmental protection

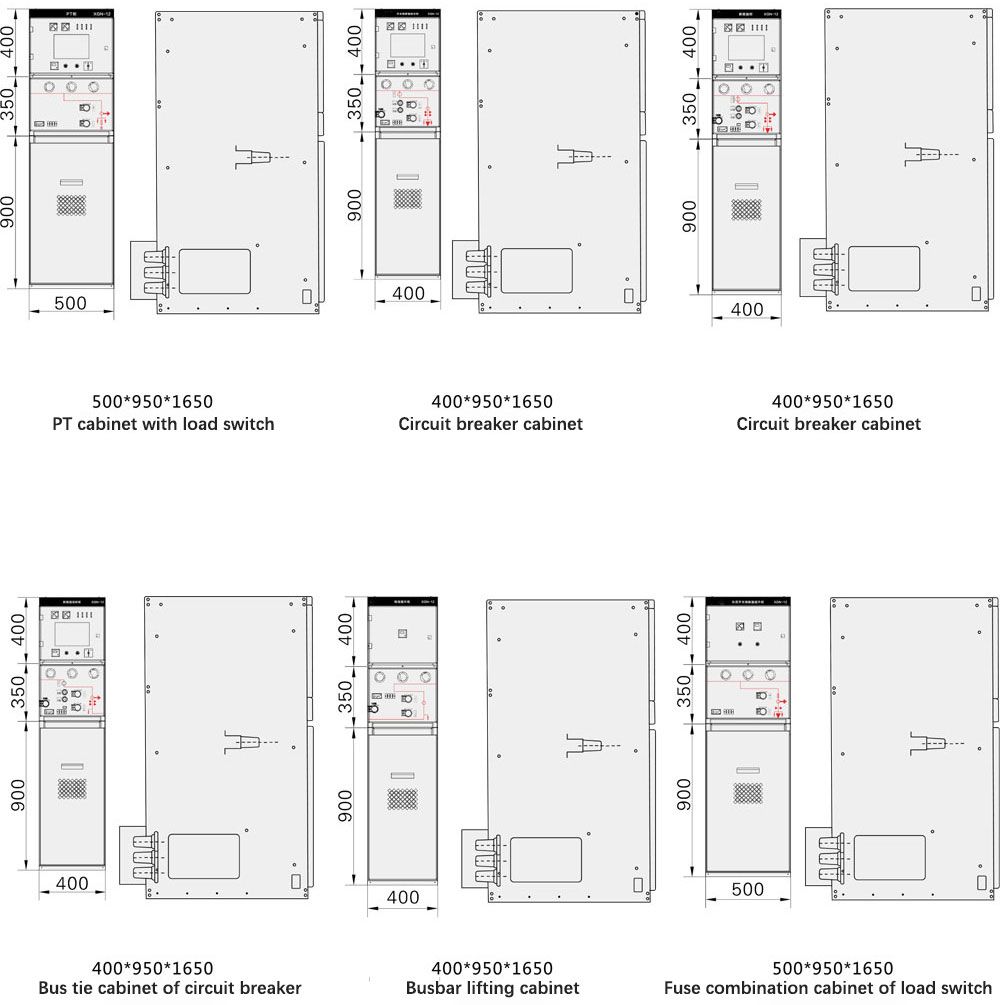

• Modular & customizable: Flexible combinations (LBS, VCB, fuse modules)

• Maintenance-free design: Suitable for underground or compact spaces

• Long service life: Rust-proof, weather-resistant stainless steel housing

• Smart grid compatibility: Supports remote monitoring and fault location

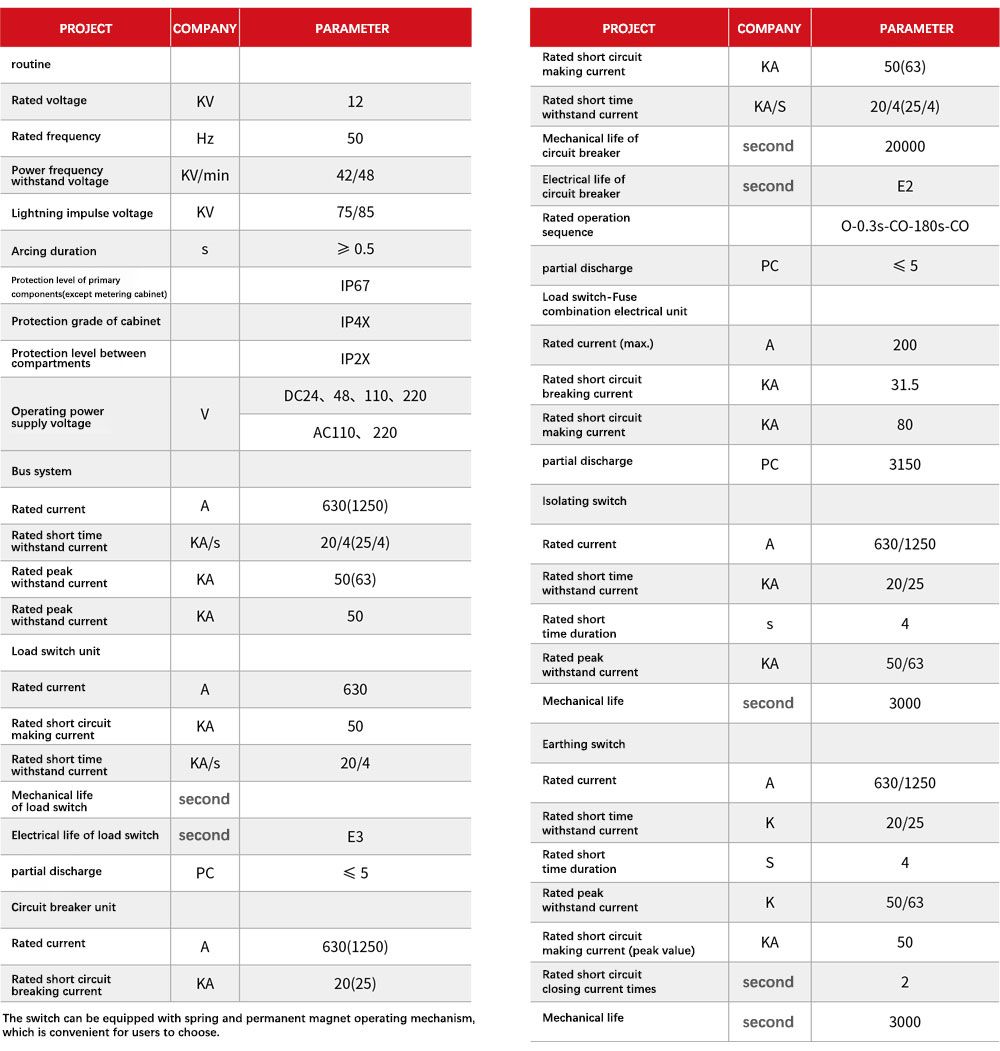

Technical Parameters

• Rated Voltage: 12kV

• Rated Frequency: 50Hz

• Rated Current: 630A

• Rated Short-Circuit Breaking Current: 20kA

• Insulation Medium: SF6 Gas

• Protection Level: IP67 (main tank)

• Installation Type: Indoor / Outdoor RMU

Application Scenarios

• Compact substations in urban areas

• Renewable energy systems (wind/solar)

• Commercial and residential buildings

• Industrial parks and mining substations

• Rail transit and data center networks

Standards & Certifications

• IEC 62271-200: Metal-enclosed switchgear

• GB/T 3906: 3–63kV AC switchgear standards

• ISO 9001, ISO 14001, ISO 45001

• Type test reports are available from certified labs

Installation & Maintenance

• Delivered fully assembled or in modules

• No need for SF6 gas refilling for 20+ years

• Operated via front-panel handle or electric actuator

• Optional SCADA integration for smart diagnostics

Customer Feedback

⭐⭐⭐⭐⭐
“Perfect fit for our 12kV solar substation project in Germany. Compact, reliable, and easy to install.”
— Markus T., Siemens Energy Contractor (Google Reviews)

⭐⭐⭐⭐⭐
“The HGGN-12 unit helped us solve space constraints in a commercial tower in the UK. Excellent after-sales support.”
— Emily S., GridPower Solutions Ltd. (Trustpilot UK)

⭐⭐⭐⭐⭐
“Reliable under harsh conditions. Used in an outdoor wind energy site in Canada with no failures in 2 years.”
— Jordan M., NovaGrid Power Systems (Google Reviews)

⭐⭐⭐⭐☆
“Would appreciate faster lead times, but performance is excellent. Good thermal isolation and minimal maintenance.”
— Carlos R., Iberica Electric (Spain)

⭐⭐⭐⭐⭐
“Clear documentation, strong design. It simplified our distribution layout across a new industrial park in Poland.”
— Anna W., Elektrobud Sp. z o.o. (Email Feedback)

Frequently Asked Questions (FAQ)

• What’s the main advantage of HGGN-12 over traditional RMUs?
It offers a more compact footprint, is fully insulated with SF6 gas, and is maintenance-free for over 20 years.

• Can it be installed outdoors?
Yes, with IP67 protection and stainless steel housing, it’s suitable for harsh outdoor conditions.

• Is this RMU compatible with automation systems?
Yes, HGGN-12 supports SCADA integration, remote monitoring, and fault indication.

• What’s the typical delivery lead time?
4–6 weeks, depending on configuration. Urgent orders can be expedited.

• Does it include a load break switch and circuit breaker?
Configurations vary. It can be customized with LBS, VCB, or fuse combinations based on your needs.
