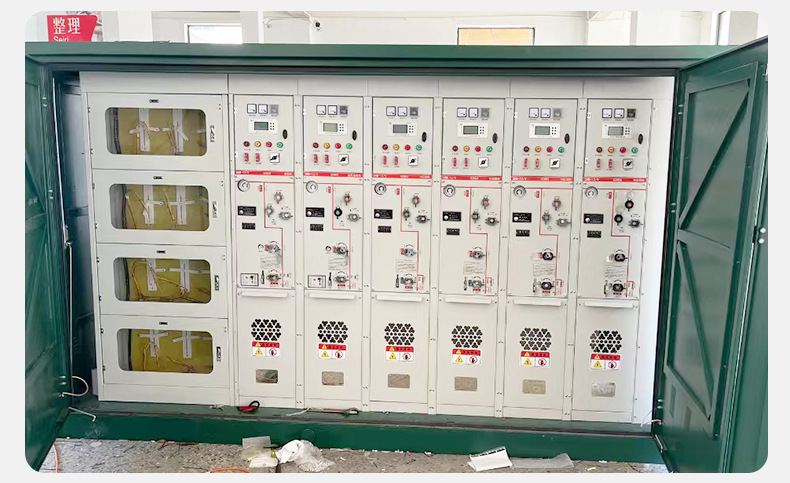

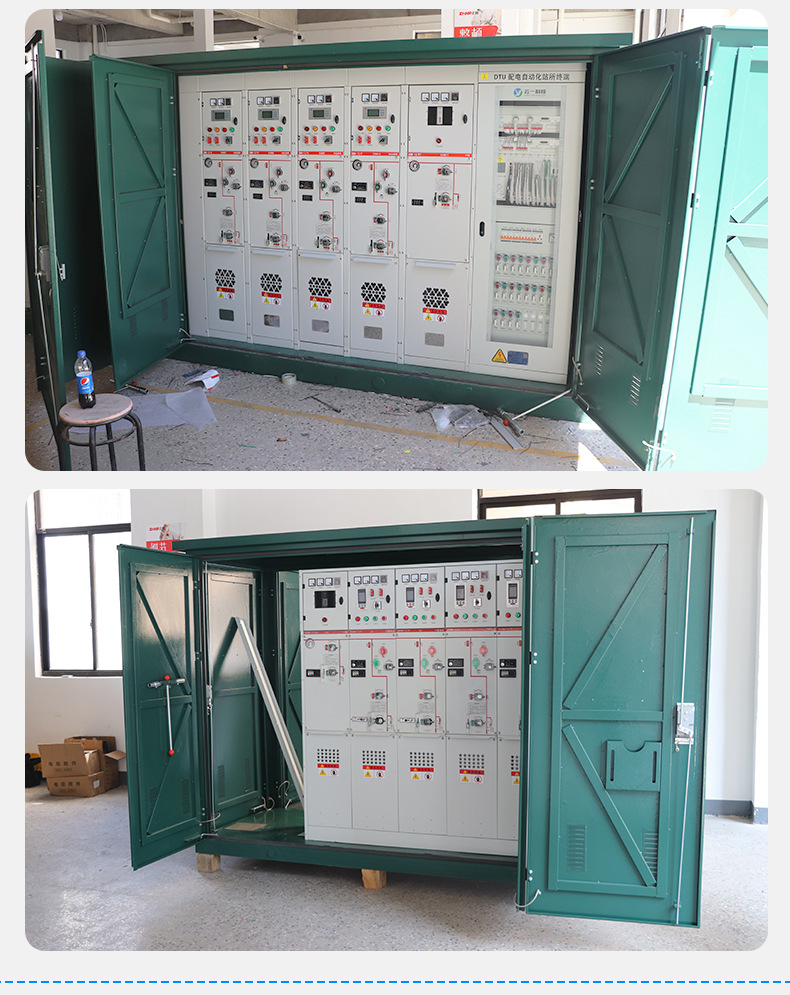

SRM6-12 Gas Insulated Fully Enclosed Ring Main Unit Compact Switchgear
The SRM6-12 Gas Insulated Ring Main Unit (RMU) is a fully enclosed and compact switchgear system designed for 12kV distribution networks. Its stainless-steel tank is completely sealed and filled with SF₆ gas (or an optional eco-friendly insulating gas), ensuring over 30 years of long-term reliability, high operational safety, and a maintenance-free service life. With its modular design, the SRM6-12 RMU is widely applied in urban substations, industrial facilities, commercial infrastructure, and renewable energy projects.
Typical Scheme Diagram
Core Features and Benefits
Compact Design: Saves up to 40% of installation space compared to Air Insulated Switchgear (AIS).
High Safety: The fully sealed enclosure prevents arc flashes and protects against external environmental effects.
Extended Lifespan: Provides over 30 years of maintenance-free service.
Modular Configuration: Offers flexible options for feeder, breaker, and transformer protection.
Eco-Friendly Option: Available with alternative insulating gases beyond SF₆.
Product Details and Craftsmanship Highlights
Outer Casing: The casing is made from high-quality cold-rolled steel plate, with a thickened, reinforced material that is stable, durable, and has excellent heat resistance, providing reliable protection for the internal core components.
Standardized Wiring: Wiring is performed by electrical engineers to ensure a stable structure and a neat, clear layout, which greatly facilitates future maintenance. The wiring components are anti-slip and anti-break, with flame-retardant, flexible, and wear-resistant properties, while the rail-mounted design makes installation easy.
User-Friendly Design: A multi-hole cooling design effectively lowers the internal temperature of the cabinet, preventing accidents. External indicator lights clearly show the operational status, and instrument tests allow for easy current monitoring. The high-strength mechanical interlock is safe, reliable, and convenient to operate. The pop-up door lock with a protective cap is rain-resistant and better protects the internal core.
Strict Production Testing: Products undergo layer-by-layer testing before leaving the factory, ensuring every unit meets high standards and provides customers with peace of mind.
Technical Specifications
Standards & Certificates
IEC 62271-200
GB/T 3906
ISO 9001 Quality Management System
CE Certification
KEMA Type Test Report
(Certificates are available upon request in PDF format.)
Applications
The SRM6-12 RMU is widely used in:
Urban Substations: A compact solution for city centers and underground facilities.
Hydropower Stations, Industrial Plants, and Engineering Projects: Provides stable and safe power distribution.
Infrastructure Projects: Hospitals, metro systems, shopping malls, and data centers.
Renewable Energy Integration: Ideal for wind and solar farms that require reliable distribution.
Installation & Maintenance
Operating temperature: –25°C to +40°C
Altitude: ≤ 2000m
The sealed tank requires no on-site refueling of gas.
It is maintenance-free throughout its service life.
Frequently Asked Questions (FAQ)
Q: Why is GIS safer than AIS?
A: GIS is fully sealed and insulated by gas, reducing risks of short circuits, corrosion, and arc faults compared to traditional AIS.
Q: What is the service life of the SRM6-12 RMU?
A: Our RMU features a fully sealed, maintenance-free design with a service life of over 30 years.
Q: Which types of insulating gases does the SRM6-12 support?
A: The standard configuration uses SF₆ gas, but we also offer eco-friendly insulating gas alternatives.
Q: What industries is the SRM6-12 suitable for?
A: It is widely used in hydropower stations, urban distribution, factories and mines, engineering projects, and the renewable energy sector.
Q: What are the advantages of the SRM6-12 compared to traditional switchgear?
A: The main advantages are its compact design (40% space savings), high safety (IP65 protection), and maintenance-free features, which significantly reduce long-term operating costs.
Case Studies
Rotterdam, Netherlands (2022): SRM6-12 RMUs reduced substation floor space by 35% compared to AIS.
Riyadh, Saudi Arabia (2021): Deployed in an industrial park, ensuring stable 12kV distribution with zero failures.
Manchester, UK (2023): Integrated with a 50MW solar farm, enhancing feeder line reliability and reducing downtime.
Customer Reviews
“The SRM6-12 RMU has been extremely reliable in our Birmingham city grid project.” — UK Power Networks
“Compact, safe, and virtually maintenance-free. A great fit for renewable applications.” — Vestas Engineer, Denmark
“Switching to SRM6-12 reduced our maintenance costs by 20% compared to AIS.” — Enel, Italy
“Delivered on time and performed flawlessly in our industrial park expansion.” — Saudi Electricity Company
“SRM6-12 meets IEC standards and runs without issue in our German substation project.” — Siemens Project Partner, Germany
Downloads
📄 SRM6-12 Technical Datasheet (PDF)
📘 Installation & Maintenance Manual (PDF)
📊 RMU Product Comparison Chart (PDF)
Ordering & Customization
Minimum Order Quantity: 1 unit
Lead Time: 30–45 days
Options: Rated current (630A / 1250A), protection schemes, insulation gas type
OEM/ODM customization supported
Contact Us
For technical consultation or project support, please get in touch with our engineer, Thor:
📞 Tel: +86-0577-62788197
📱 WhatsApp: +86 159 5777 0984
📧 Email: [email protected]
(This page was reviewed by Thor, an Electrical Engineer with over 12 years of professional experience in high-voltage switchgear design and application.)
