Metal-clad switchgear is an essential part of modern power systems. It plays a key role in ensuring safe, reliable, and efficient distribution of electricity across industrial, commercial, and utility environments. But what exactly is metal-clad switchgear, and why is it widely used in medium and high-voltage applications?
This article will walk you through the definition, structure, types, working mechanism, and real-world applications of metal-clad switchgear. Whether you're an electrical engineer, facility manager, or simply researching options for your project, this guide will help you understand how metal-clad switchgear can benefit your power infrastructure.

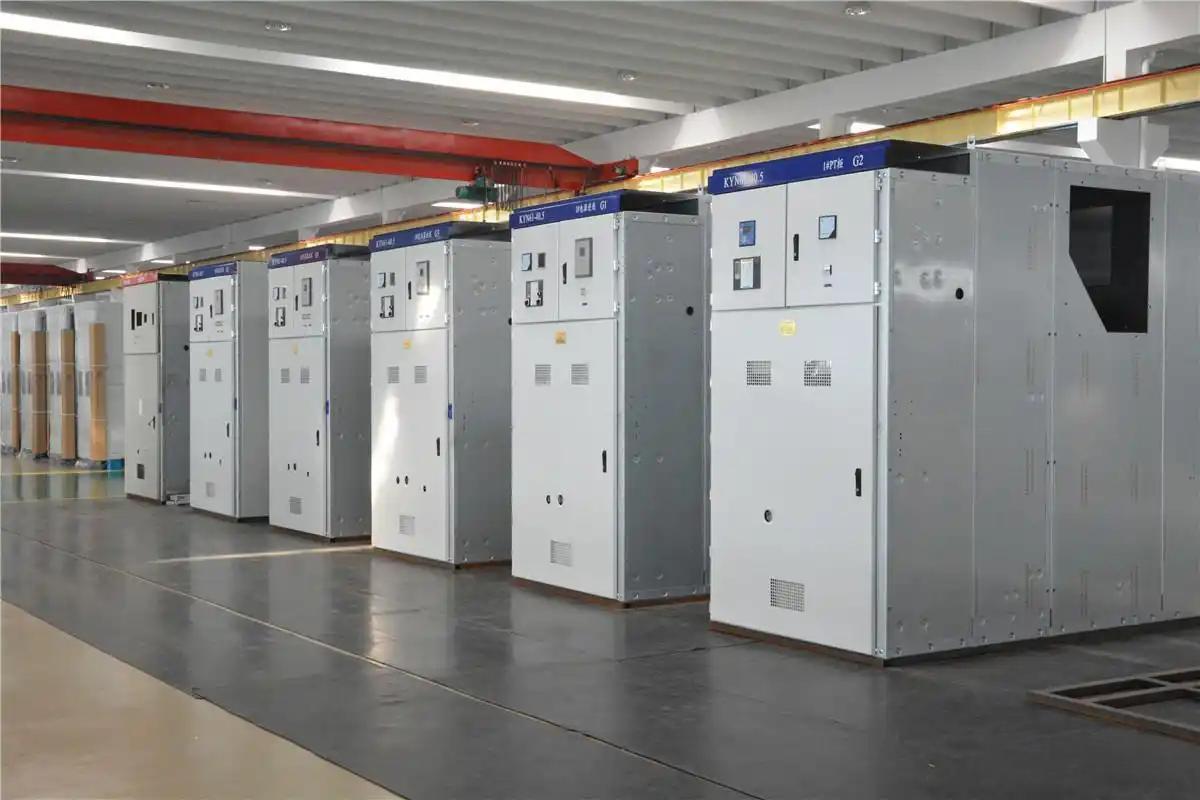

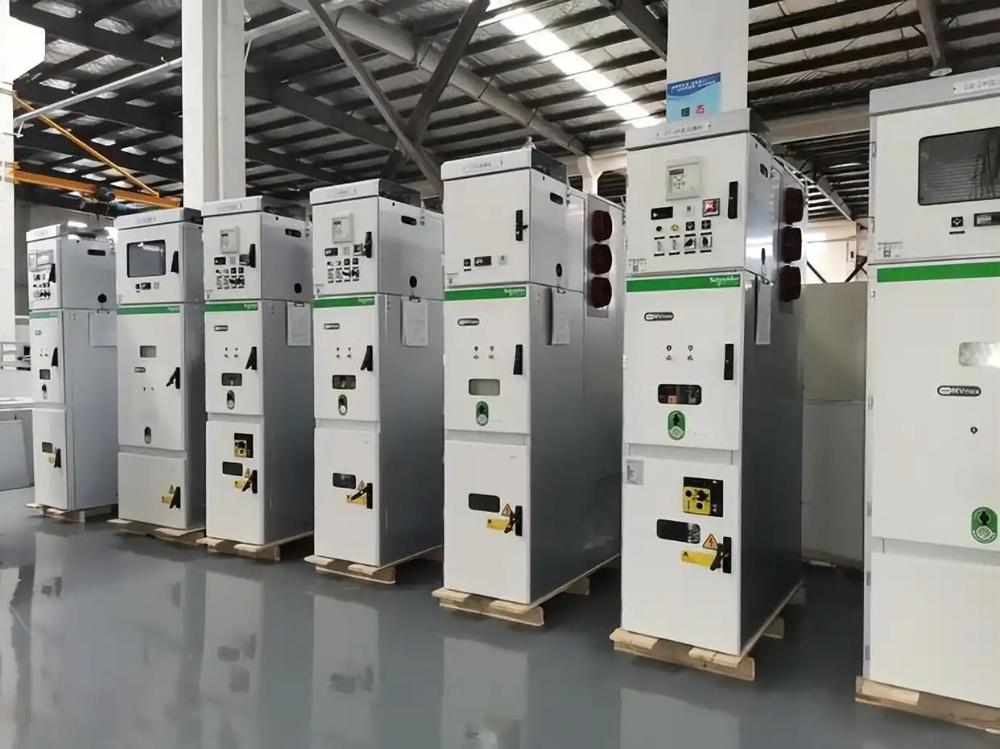

What Is Metal-Clad Switchgear?
Metal-clad switchgear is a type of high-voltage distribution cabinet used to receive and distribute electrical power, as well as to control, protect, and monitor electrical circuits. It features a robust metal enclosure that offers added mechanical strength and protection for internal components.
One of its defining features is the ability to remove or withdraw key components like circuit breakers for maintenance, which greatly improves safety and ease of service.
Each internal section of a metal-clad switchgear is physically and electrically isolated from the others. This compartmentalized design helps reduce the risk of faults spreading within the system and enhances operational safety.
Differences Between Removable and Withdrawable Switchgear
In the field of switchgear, two major design types are commonly referenced: removable (fixed-mounted) and withdrawable (draw-out) switchgear. Though they serve similar functions, their design and maintenance processes differ significantly.
Removable-Type Switchgear
In this design, either the entire cabinet or key components can be physically removed. This is particularly useful for applications that require full equipment inspection or replacement without disturbing other parts of the system.
Removable switchgear is ideal for large-scale industrial plants, data centers, or substations where reliability and easy access are critical.
Withdrawable-Type Switchgear
Withdrawable switchgear allows specific components—usually the circuit breakers—to be pulled out individually for inspection or replacement. This localized access minimizes system downtime and simplifies maintenance.
This design is commonly used in space-constrained environments such as high-rise buildings, commercial centers, or densely packed control rooms.

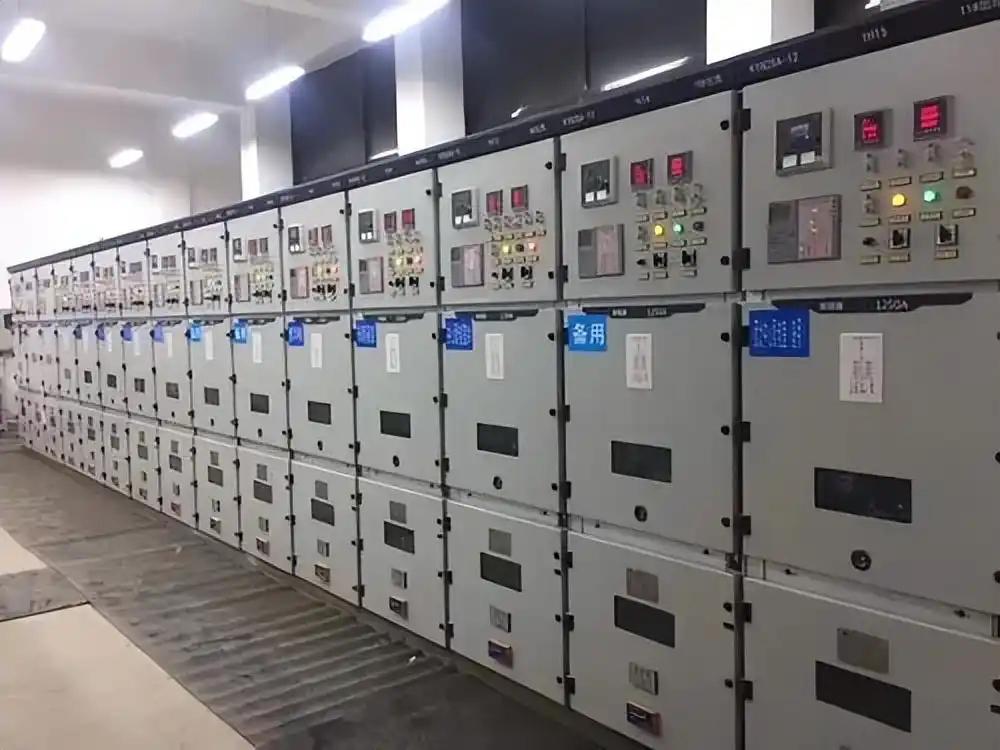

Understanding the "KYN" Metal-Clad Switchgear System
Metal-clad switchgear is often labeled using standardized model codes, such as KYN. Here's what each letter stands for:
K – Metal-enclosed, armored type
Y – Withdrawable configuration (removable components)
N – Designed for indoor installation
Let’s explore some of the common KYN series in more detail:
KYN28A Series
Voltage Rating: 3.6kV to 12kV
Features: Includes a centrally located vacuum circuit breaker. The lower section is often used as a cable chamber or for future functional expansion.
Applications: Widely used in power plants, substations, and industrial or mining enterprises.
KYN550 Series
Voltage Rating: 12kV to 24kV
Features: A more compact version of the KYN28A, ideal for installations with limited space.
Applications: Suitable for dense urban areas or facilities with restricted space.
KYN28-24 Series
Voltage Rating: 24kV
Features: Similar to KYN28A but supports higher voltage systems.
Applications: Suited for mid-to-high voltage applications needing reliable and extendable switchgear.
KYN61 Series
Voltage Rating: 35kV and above
Features: Built for high-voltage systems, offering enhanced safety and more advanced insulation technologies.
Applications: Large power stations, regional grids, or critical infrastructure with demanding power requirements.
Core Features of Metal-Clad Switchgear
Metal-clad switchgear offers several distinct advantages that make it the go-to choice for many installations:
Safety: Metal enclosures and compartmentalized design reduce the risk of arc flash and electrical faults spreading.
Ease of Maintenance: Components like circuit breakers can be withdrawn without dismantling the entire system.
Flexibility: Modular design allows for future upgrades or expansions without major overhauls.
Reliability: It offers consistent protection and performance in challenging electrical environments.
In addition, these systems often include interlocking mechanisms, ground fault protection, and automated monitoring features that enhance operational integrity.

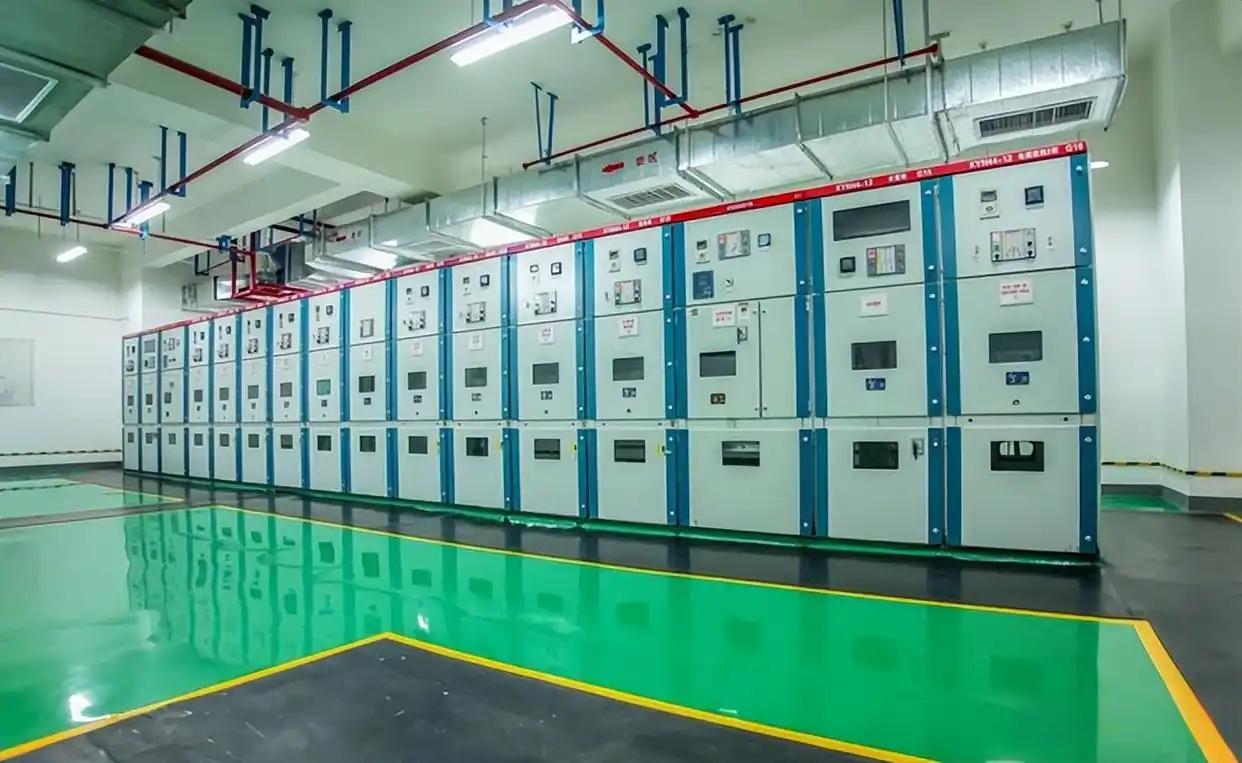

Applications of Metal-Clad Switchgear
Due to its reliability, safety, and maintenance-friendly design, metal-clad switchgear is widely adopted in a variety of sectors:
Power Generation Plants: For managing the output from turbines or generators before transmission.
Substations: Used in primary or secondary substations for stepping down voltage levels.
Industrial Facilities: Protects and controls power to heavy machinery and production lines.
Commercial Buildings: Ensures uninterrupted power supply to lighting, elevators, HVAC, and more.
Large Electric Motors: Help manage high-voltage startup and operation in mining or manufacturing.
Hospitals and Data Centers: Where electrical downtime must be avoided at all costs.
Its robust design and long service life make it a dependable option for both new installations and upgrades to existing systems.
Metal-Clad vs. Other Types of Switchgear
It’s worth noting how metal-clad switchgear compares to other types like metal-enclosed switchgear or gas-insulated switchgear (GIS):
Feature | Metal-Clad Switchgear | Metal-Enclosed Switchgear | GIS |
Safety | High (compartmentalized) | Medium | Very High |
Maintenance | Easy | Moderate | Complex |
Space Requirements | Moderate | Larger | Very Compact |
Cost | Moderate | Low | High |
Applications | General to Heavy-Duty | Commercial | Critical & Space-Limited |
Choosing the right switchgear type depends on your environment, power demands, safety regulations, and long-term cost considerations.
Conclusion: Why Choose Metal-Clad Switchgear?
Metal-clad switchgear is a proven solution for delivering safe, flexible, and efficient power distribution in medium and high-voltage environments. Thanks to its rugged construction, modular design, and ability to isolate and service individual components, it supports both high performance and easy maintenance.
If you're planning an infrastructure project, expanding a facility, or upgrading outdated switchgear, metal-clad systems offer a reliable and scalable solution.
We can help you evaluate your specific needs and recommend the best configuration for your project. Our team is experienced in designing and deploying metal-clad switchgear for a wide range of industries.
