A current transformer, or CT, is the "eye" of any electrical system. It steps down dangerous high currents to safe, measurable levels, making it crucial for energy metering and equipment monitoring. However, CT installation and wiring are no small matter. Any mistake can lead to incorrect readings or even endanger safety.
This guide will provide a complete, in-depth look at CT wiring. We'll cover everything from the basic principles to practical operations and common troubleshooting. This will ensure you can work with confidence.
Part 1: What is a Current Transformer?
Before you start wiring, let's figure out what a CT is. We’ll also cover how it works.
How do current transformers work?
Simply put, a CT is a special-purpose transformer. It works on the principle of electromagnetic induction. A large current flows through the primary winding. This is usually just the cable that runs through the CT's core.
This creates a powerful magnetic field. That field then induces a proportional, much smaller current in the secondary winding, which has many turns.
How a current transformer works and do transformers change current are common questions. A regular transformer changes voltage and current levels. A CT's main purpose is to accurately transform a high current into a measurable low current, usually 5A or 1A. It is not used for a power supply.
Understanding a CT’s basic function is the first step toward proper wiring.
Part 2: Practical CT Wiring Guide
Now that you know the basics, let's get hands-on. How are current transformers wired? Proper wiring involves several key steps.
• Identifying Polarity and Direction

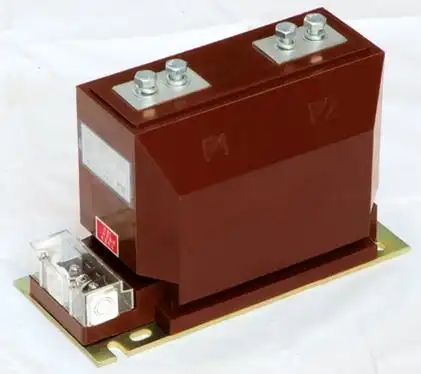

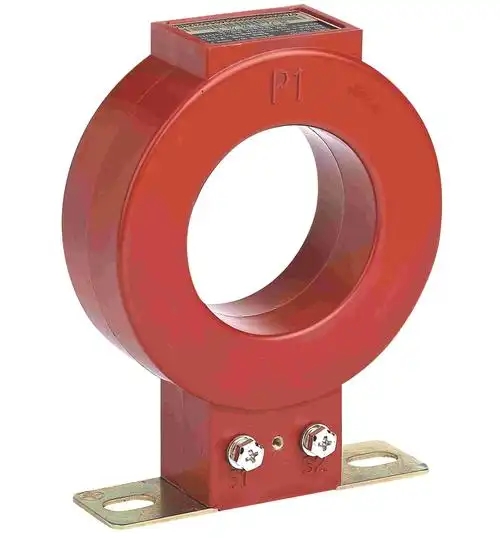

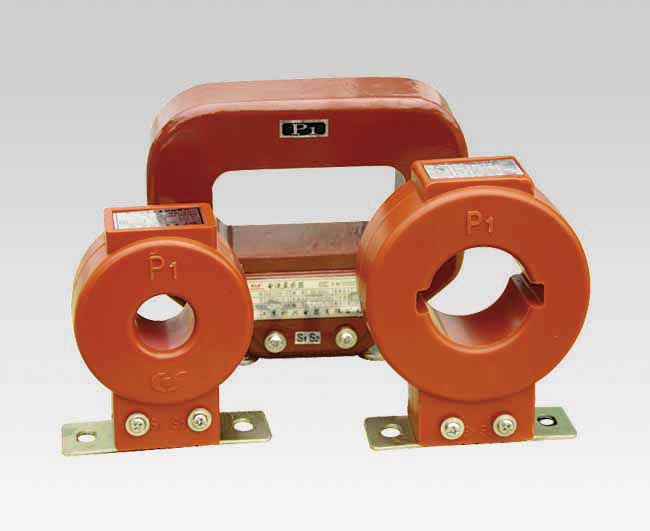

This is the most important concept in CT wiring. It directly impacts your measurement results. CTs are usually marked with polarity tags like P1/P2 and S1/S2.
P1/P2: The Primary Winding
P1 is usually marked as H1. It is the input terminal for the primary winding. P2 is marked as H2. This is the output terminal.
Which direction are P1 and P2 in CT? The rule is simple: current must flow from P1 to P2. This is usually shown with an arrow or a "This side toward source" label. If you wire it backward, the CT's output will be negative. This leads to incorrect meter readings.
S1/S2: The Secondary Winding
S1 is often marked as X1 or a white wire. It represents the positive terminal of the secondary winding. S2 is marked as X2 or a black wire. It is the negative terminal.
Which wire is positive on a CT? In most US and international standards, the white wire (S1/X1) is considered positive. When you wire it, S1 should connect to your meter's S1 input. S2 should connect to its S2 input.
• How to connect a CT transformer?
Here are the specific steps for connecting a CT.
• De-energize: Always make sure the relevant circuit is completely powered down. Do this before you start any wiring.
• Choose a Location: Mount the CT on the right conductor. This is usually on the load side. Make sure the CT’s arrow points toward the power source.
• Thread the Conductor: Pass the main power cable through the CT’s central hole.
• Connect Wires: Connect the CT’s secondary wires (S1 and S2) to your meter, electric meter, or protection relay.
• Grounding: The CT’s secondary winding must have a reliable ground at one point. This prevents dangerous high-voltage induction and protects both equipment and people.
• CT Lead Extension and Optimization
Sometimes the standard lead length isn't enough. You may need to extend the CT's wires. This seems easy, but it directly affects measurement accuracy. To ensure precision, we recommend using Twisted-Pair cable. It effectively blocks outside electromagnetic interference.
Make sure to choose the right Wire Gauge. Wires that are too thin can cause high resistance, which leads to signal loss. If you must extend the wires, use as few connectors as possible. Ensure all connections are secure and reliable.
Part 3: CT Applications, Selection & Maintenance
• What are current transformers used for?
CTs have a wide range of uses. They primarily include metering and protection.
• Metering: They work with electric meters. This helps you get an accurate measurement of energy consumption.
• Protection: CTs are a core part of protection relay systems. They provide a signal that allows the relay to quickly trip the circuit during a short circuit or overload.
• Monitoring: They're used in industrial automation and building management systems. This helps you monitor real-time current changes.
• In-Depth CT Selection Parameters
Choosing the correct CT is key to a successful project. Your specific use case determines which parameters are most important.
For metering, you need a high-accuracy class. These CTs maintain excellent precision within a range of 5% to 120% of their rated current.
For protection, the accuracy is less critical. The saturation characteristic is vital. During a short-circuit fault, a protection CT must remain linear. This ensures the relay can operate correctly. This is shown by its Accuracy Limit Factor (ALF), such as 5P10 or 10P20.
Part 4: Troubleshooting and Safety
• Troubleshooting: What if the CT is Wired Incorrectly?
If your meter shows odd readings after wiring, don't panic. This is often caused by a simple wiring mistake.
• Negative Readings: If your meter shows a negative value, the most likely cause is reversed CT polarity. You can solve this by swapping the S1 and S2 wires.
• Zero or Low Readings: Check for any loose or broken connections. If the wires aren't connected properly, the CT won't output a current.
Remember, while how to wire up a transformer is a general question, CTs have a higher standard. Their secondary circuit must never be open.
• Critical Safety Tip: CT Secondary Circuit Protection
This is the most important and dangerous point in CT use.
The Danger: If the primary winding has high current flowing through it and the secondary circuit is open, the secondary coil will produce an extremely high induced voltage. This can reach thousands of volts. This is powerful enough to break down insulation, damage equipment, and even be fatal.
Safety Measures: Before you disconnect or replace any device in the CT’s secondary circuit, you must first use a dedicated shorting block. This will reliably short-circuit the S1 and S2 terminals. This makes sure the secondary circuit stays closed at all times. It eliminates the high-voltage danger.
Part 5: Frequently Asked Questions & Community Interaction
• Frequently Asked Questions (FAQ)
• Q: Can a CT be wired backward?• A: Yes, but it will cause your meter to show a negative value. To fix it, you just need to swap the CT's secondary wires (S1 and S2).
• Q: What's the difference between a CT and a PT (Potential Transformer)?• A: A CT measures high current, and its secondary circuit must always be closed. A PT measures high voltage, and its secondary circuit must remain open.
• Q: How do I calculate a CT’s VA rating (Rated Burden)?• A: The VA rating is the maximum apparent power the CT’s secondary can safely handle. It's the secondary current squared multiplied by the total impedance of the circuit. When you're picking a CT, make sure the impedance of your meter and wires is less than the CT's VA rating.
• Q: Can I connect multiple meters to one CT?• A: Yes, but you have to make sure the total impedance of all meters and connection wires doesn't exceed the CT's rated burden. If it does, your measurement accuracy will be affected.
