A pad-mounted transformer is a special electrical device. You often see it in green metal boxes on the ground. These are in your neighborhood or near shopping centers. This equipment takes high-voltage electricity and makes it safe. It helps homes and businesses use electricity safely. You find these transformers in many places. They help protect you and others from dangerous high-voltage wires.
Almost half of the city and town power systems use them. They are used because they are safe and work well.
These transformers lower the chance of accidents. They keep high-voltage parts locked up and use fire-resistant materials.
Key Takeaways
A pad-mounted transformer is a safe device. It lowers high-voltage electricity for homes and businesses. These transformers are often in neighborhoods and shopping centers. They blend in with the area using green metal boxes. Safety features include a locked cabinet. This stops people from touching dangerous parts. Pad-mounted transformers give steady power, even in bad weather. They help keep lights and electronics working. They are made to fit in small spaces. This makes them good for cities where wires cannot go overhead. Regular maintenance is needed to keep them safe and working well. These transformers help protect people from high-voltage accidents. Always stay away from pad-mounted transformers. Tell the utility company if you see any damage.
Definition
Overview
A pad-mounted transformer looks like a big metal box. It sits on a concrete pad and is locked. This device connects to power lines underground. It changes high-voltage electricity to a lower voltage. You can use this electricity at home or work. You see these transformers in neighborhoods and shopping centers. They are also in business parks. The locked box keeps dangerous parts away from people. This helps keep everyone safe.
Here is a table that shows what a pad-mounted transformer usually has:
Characteristic | Specification |
|---|---|
Type | Pad-mounted, compartmental-type distribution transformer |
Voltage Rating | Up to 34.5 kV (high-voltage), up to 15 kV (low-voltage) |
Frequency | Three-phase, 60 Hz |
Cooling Method | Liquid immersed, self-cooled |
Rating | 10 MVA or smaller |
Usage | Steps down the voltage from underground cables |
Coverage | Works with radial or loop-feed systems |
Dimensions | Meets minimum or specific size requirements |
A pad-mounted transformer sits on the ground. It does not hang on a pole. The case is strong and hard to open. This design helps keep you and your neighbors safe.
Purpose
A pad-mounted transformer does many important jobs. Its main job is to make electricity safe for you. You get many benefits from its design:
The box is low and blends into your neighborhood.
The locked cabinet stops people from messing with it.
The closed system keeps out rain and animals.
It brings electricity to homes and businesses.
It helps busy places like shopping centers and factories.
It keeps the voltage steady so your lights work well.
Here is another table with more details:
Purpose/Advantage | Description |
|---|---|
Enhanced Safety | Uses self-protecting fuses and locked cases to keep you safe |
Aesthetic Considerations | Blends with the landscape, reducing visual impact |
Efficient Power Delivery | Brings electricity safely and reliably to your home or business |
Strategic Placement | Ensures steady power in busy areas |
A pad-mounted transformer also helps your electronics work better. It lowers the chance of accidents or damage. You get safe and steady power every day.
Pad-Mounted Transformer Features
Design
A pad-mounted transformer is shaped low to the ground. This shape helps it fit in with homes and stores. It sits right on a concrete pad. You do not need a building or fence for it. The cabinet is made of strong steel and locks tightly. This stops people from opening it without permission. Inside, the transformer has different sections. High-voltage and low-voltage parts stay apart. This makes the setup safer and more organized.
Here is a table that shows some common design features:
Feature | Description |
|---|---|
Low-profile design | Makes it look better and saves space. |
Compartment-type construction | Let it fit in small places easily. |
Outdoor mounting capability | No need for extra covers, so it is easy to install. |
Compliance with standards | Follows rules for safety and reliability. |
Robust construction | Keeps it safe from bad weather and people trying to break in. |
You will also see that it is hard to break into. The doors have locks and hinges. There are small holes for air, but they are covered. These things help keep the transformer safe and working well in public places.
Components

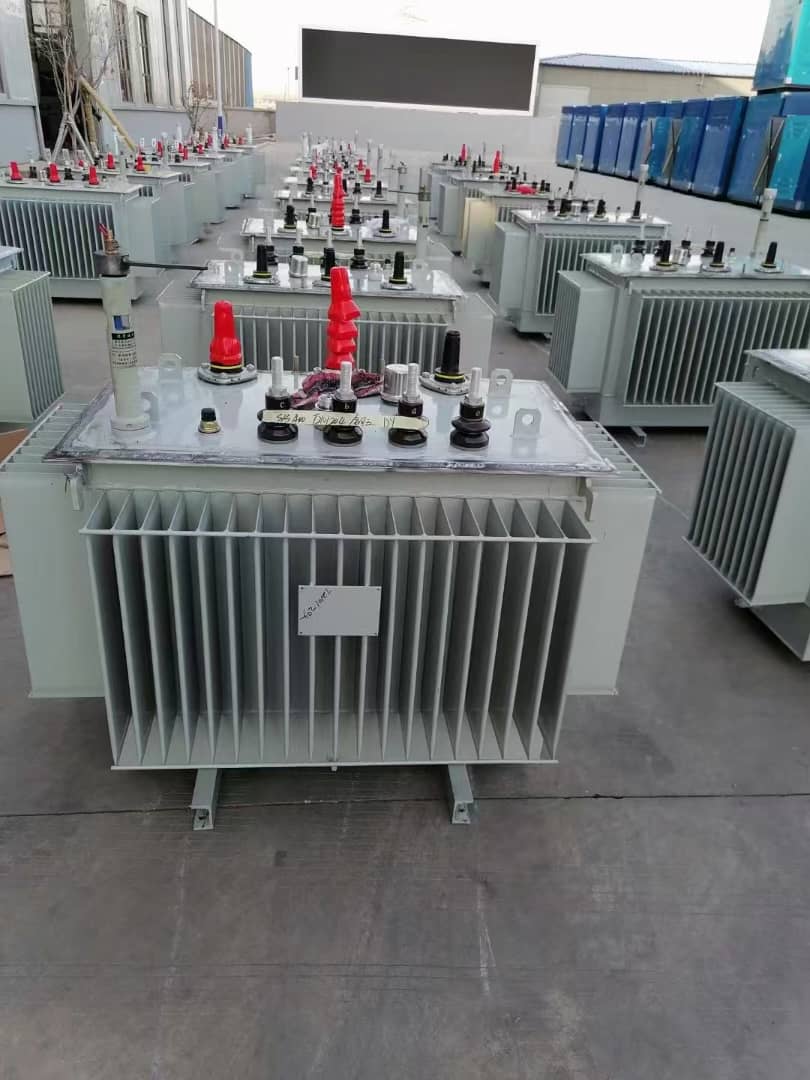

A pad-mounted transformer has many important parts inside. The core and coils are in the middle. The core is made of iron and guides energy. The coils change high voltage to low voltage. Oil covers these parts to keep them cool and stop sparks. Bushings connect the transformer to the wires underground. The outside box keeps out rain and dust. Cooling fins help move heat away so it does not get too hot.
You will find these main parts inside:
Core and coils to change voltage
Oil for cooling and safety
Bushings to connect cables
A strong box for protection
Cooling fins to get rid of heat
Each part helps make sure your power is safe and steady.
Safety Features
Safety is very important for a pad-mounted transformer. The cabinet is locked and hard to open. This keeps out people who should not be there. It sits on the ground, so you do not need to climb to reach it. All the wires are hidden inside the box.
Here is a table that shows how these safety features help you:
Safety Feature | Benefit |
|---|---|
Locked, tamper-resistant cabinet | Stops people from getting inside |
Ground-mounted installation | Lowers the chance of electric shock |
Fully enclosed design | Hides wires and keeps you safe |
You also get protection from too much electricity. Fuses and surge arresters stop dangerous spikes. Some transformers have lights to show if there is a problem. These features make pad-mounted transformers safe for parks, schools, and busy streets.
Tip: If you see a pad mounted transformer nearby, stay away from it. The locked box and strong build keep you safe, but never try to open or touch it.
Operation
How It Works

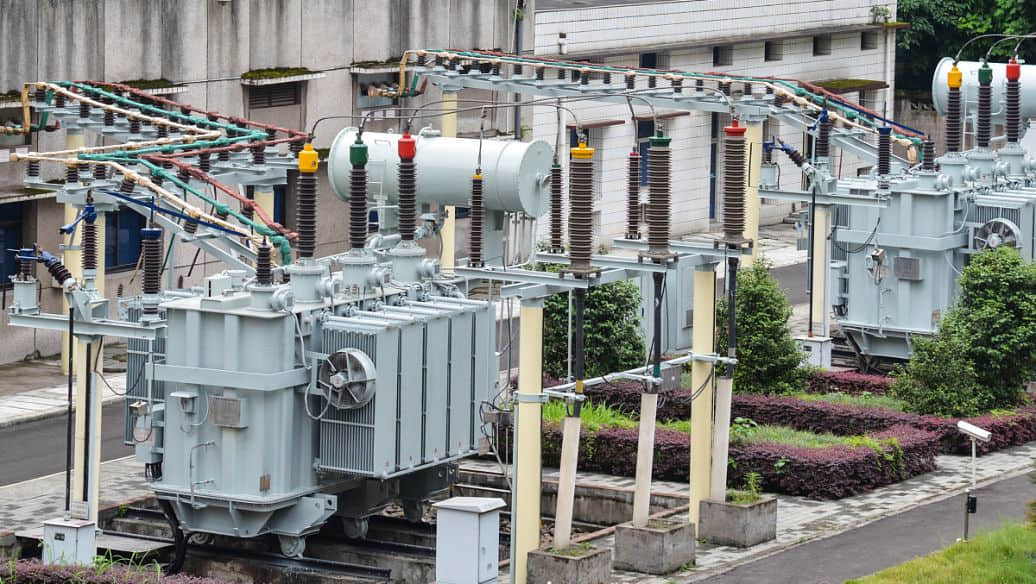

You may wonder how a pad-mounted transformer works. Electricity comes from a power plant with very high voltage. This voltage is too strong for homes and stores. The pad-mounted transformer helps make it safe. It gets high-voltage electricity through underground cables. Inside, there is a core and coils. These parts use magnetism to change the voltage. The transformer lowers the voltage before sending it out. Then, your house or business gets safe electricity.
Here is an easy way to see what happens:
High-voltage electricity goes into the transformer from underground cables.
The core and coils use magnetism to lower the voltage.
The transformer sends out safer electricity to homes, schools, and stores.
The locked steel box keeps all the parts safe.
You may not see these parts in action, but you receive safe power every day. The transformer is quiet and does not need much care. Its strong case helps it last for many years, even in bad weather.
Voltage Step-Down
The main job of a pad-mounted transformer is to lower high voltage for local use. Most transformers can handle up to 46,000 volts. This is much more than you use at home. The transformer makes the voltage safe for lights and electronics.
Here is a table that shows how the voltage changes:
Stage | Voltage Level | Where It Goes |
|---|---|---|
Incoming Power | Up to 46,000 volts | From power plant to transformer |
After Step-Down | 120-480 volts | To homes and businesses |
Pad-mounted transformers are found in many places. They fit well in small areas. Their small size makes them good for neighborhoods and shopping centers. You also see them where safe and steady power is needed. Some transformers can be made special for different needs, so they work well in many places.
Note: The transformer’s strong box helps it work in rain, snow, or heat. You get steady power no matter the weather.
Applications
Residential
Pad-mounted transformers are found in many neighborhoods. They sit on concrete pads near sidewalks or driveways. These devices give safe power to homes. You do not see high-voltage wires above you. The transformer lowers the voltage for your lights and electronics. Many homes in cities and suburbs use these transformers. You get steady electricity even during storms. The locked box keeps kids and pets safe. The transformer blends in with the area, so it does not look out of place.
Commercial
Pad-mounted transformers are used in shopping centers and offices. They help power big places where people work or shop. Here are some ways they are used:
Power large buildings and utility systems.
Lower voltage from high levels like 33kV or 11kV to safer levels like 480V/277V or 208V/120V.
Support factories, shopping centers, and data centers.
Stores and offices get steady power from these transformers. They keep the equipment working and the lights on. The locked box adds extra safety.
Tip: If you see a green box near a store, it is probably a pad mounted transformer helping the business.
Industrial
Factories and warehouses use pad-mounted transformers. These places need lots of power for machines. The transformer lowers the voltage for heavy equipment.
Here is a table that shows where you find these transformers and what they do:
Application Type | Description |
|---|---|
Residential Power Distribution | Gives safe and steady power to homes in cities and suburbs. |
Commercial Complexes | Powers malls, offices, and other business places. |
Industrial Facilities | Supports factories and warehouses with lots of power. |
Renewable Energy Integration | Works with solar farms and wind turbines. |

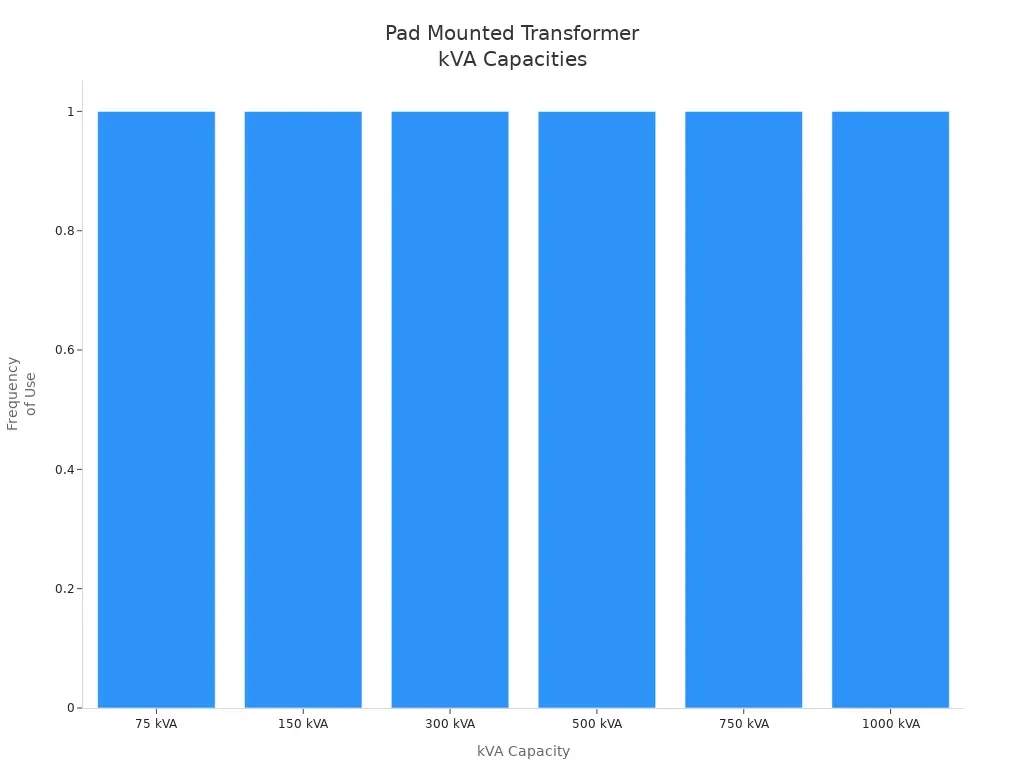

Factories need transformers with bigger capacities. Here is a table showing different kVA ratings for different needs:
kVA Capacity | Suitable Applications |
|---|---|
75 kVA | Small neighborhoods or light business use |
150 kVA | Bigger neighborhoods or small businesses |
300 kVA | Small factories or medium businesses |
500 kVA | Large businesses or light factories |
750 kVA | Big factories or business centers with high power needs |
1000 kVA | Heavy factories or large business centers |
Pad-mounted transformers work for homes, stores, and factories. They help give safe and steady power wherever it is needed.
Underground Systems
Pad-mounted transformers look like green boxes on grass or near sidewalks. They also work underground, where you cannot see them. In many cities, power lines are not above your head. The wires run under the ground instead. Pad-mounted transformers connect to these underground wires. They lower the high voltage so you can use electricity safely at home, school, or work.
Cities do not have much extra space. You need equipment that fits in small places. Pad-mounted transformers are small and easy to fit. Workers can put them in special rooms or vaults underground. This is good for busy city blocks and shopping centers. It also helps keep streets free of wires and poles.
Here are some reasons why pad-mounted transformers are good for underground systems:
They fit in tight spaces where other equipment cannot go.
Their strong cases keep people safe in busy areas.
The sealed box keeps out water, dirt, and animals.
They give steady power even when placed underground.
Their small size helps workers install and fix them easily.
When you walk in a city, you may not see the power system. Pad-mounted transformers help hide it from view. They stay in vaults or behind bushes. This keeps the streets looking nice and safe. You do not have to worry about wires above you. The locked box and strong build keep everyone safe.
Note: Underground systems are safer and look better. You get fewer blackouts because storms and accidents cannot reach the wires and transformers.
Pad-mounted transformers help cities grow bigger. When more people move in, you need more power. These transformers let workers add new connections fast. They do not need to dig up the whole street. Workers can fix or upgrade the transformer quickly. This means less trouble and faster repairs.
You use underground systems every day. Your lights work, your phone charges, and your neighborhood stays clean. Pad-mounted transformers make this happen by working quietly and safely where you cannot see them.
Advantages
Safety
Pad-mounted transformers give you strong safety. The locked steel cabinet keeps people safe from shocks. No one can touch the dangerous parts inside. Animals and vandals cannot get in. The transformer sits close to the ground. This makes it safer in busy places like parks or sidewalks.
Here is a table that shows how these safety features help you:
Feature | Advantage |
|---|---|
Enclosed Design | Stops people from touching dangerous parts. |
Locked Cabinets | Keeps out people who should not get in. |
Weather Resistance | Keeps rain, snow, and dirt out, so it works well. |
Height | Makes it safer in crowded places than ones on poles. |
Tamper Resistance | Stops animals and people from messing with it. |
Pad-mounted transformers are good for places where many people walk or play. The strong, closed box helps keep everyone safe.
Reliability
You can trust a pad-mounted transformer to give steady power. The sealed cabinet keeps out rain, snow, and dirt. This helps the transformer work in any weather. You do not have to worry about storms or animals causing problems. The transformer is made from strong materials that last a long time. You get fewer blackouts and less trouble with your power.
The transformer keeps out water and dust, so it lasts longer.
Locked cabinets stop people from breaking it.
The design helps stop accidents that could turn off your power.
You can feel sure your lights and devices will keep working.
Aesthetics
A pad-mounted transformer helps your neighborhood look nice. It sits low to the ground and has a simple shape. Most are painted green or brown to blend in. You see them near grass, bushes, or sidewalks. Unlike big poles or wires, this transformer does not block your view. You can enjoy parks, streets, and stores without seeing messy wires above.
The transformer fits in with plants and city design.
Its low shape looks good in homes and business areas.
The locked box looks neat and does not stand out.
Tip: You might not even notice a pad mounted transformer nearby because it blends in so well.
Disadvantages and Considerations
Installation
When you want to put in a pad-mounted transformer, there are many steps. You have to pick a good spot for it. The transformer should be close to where power is needed. Workers must also be able to get to it easily. If the cables are too long, you can have problems. Long cables can cause a voltage drop and cause heat.
Before you install the transformer, you need to get the site ready. Here are some important things to do:
Pour a concrete pad that meets the rules.
Make sure water can drain away from the pad.
Leave space around the transformer for air to move.
Put in and test the ground grid for safety.
Line up the conduit stub-ups with the cabinet.
Make sure workers wear safety gear and use Lockout/Tagout.
In cities or crowded places, it can be hard to find space. You also have to follow local rules and utility codes. Sometimes, the price of materials can change fast. This can make your project cost more. If you add digital features, you need to think about cybersecurity.
Maintenance
Pad-mounted transformers need regular checks to keep working well. You should look at them often to find problems early. Here is a table that shows what to check and how often:
Frequency | Maintenance Tasks |
|---|---|
Daily | Check oil and temperature, look at voltage and current, check relays |
Weekly | Check oil level, look at the outside, check relays, look at gaskets and radiators, check the relief device |
Monthly | Test oil strength, look at the cable box and bushings |
Yearly | Check all parts, clean boxes, test insulation, check fan or oil pump motors |
If the transformer is in a tough place, you may need more checks. Bad weather, dust, and animals can mean more work. These things can change how often you need to look at the transformer.
Drawbacks

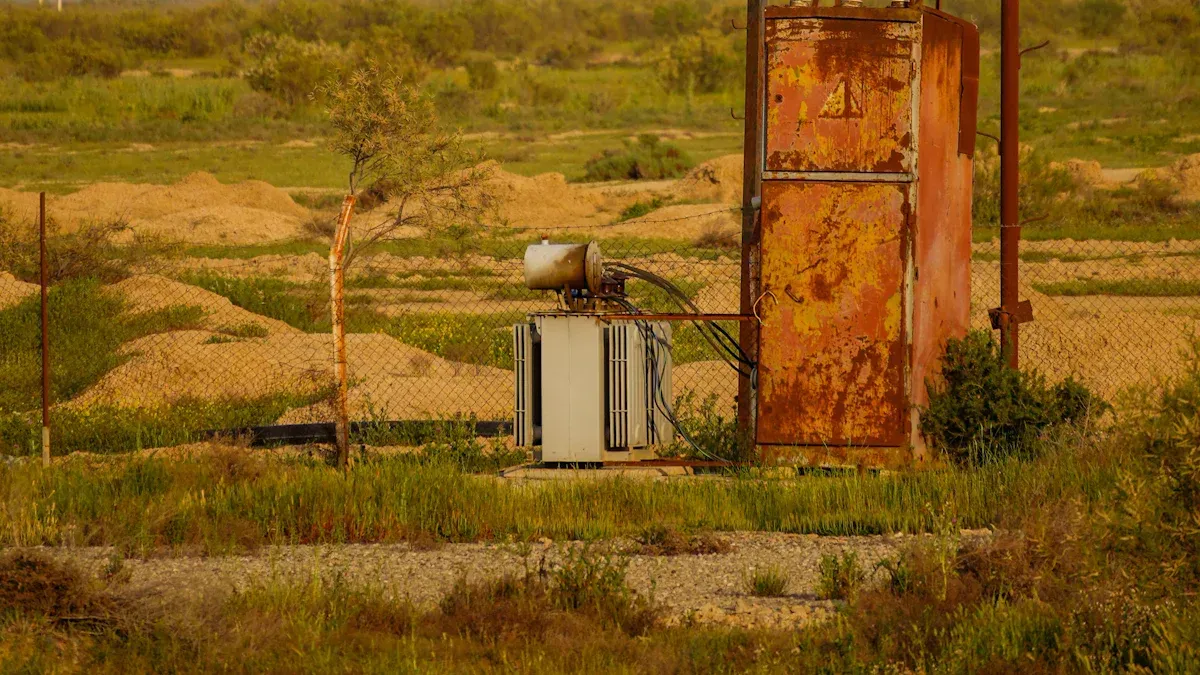

Pad-mounted transformers are helpful, but they have some downsides. Flooding can be a problem if the transformer is in a low spot. Water can hurt the unit, but good drainage helps stop this. Vandalism is another worry, especially if the box is not strong.
Here is a table that shows some risks:
Risk Type | Vandalism Risk | |
|---|---|---|
Pad Mounted | Medium (can be lowered) | High (if not built strongly) |
You should also think about what is around the transformer. Chemicals, wind, and plants can make it wear out faster. Always check that the transformer fits your power needs and follows safety rules.
Note: Good planning and regular checks help stop most problems with pad mounted transformers. Always use trained workers for putting in and taking care of the transformer.
Comparison
Pad vs. Pole Mounted
Differences
Pad-mounted transformers sit on the ground. They are usually on a concrete pad. Pole-mounted transformers are high up on poles. Each type works best in different places. Pad-mounted transformers are good for cities and busy neighborhoods. Pole-mounted transformers are better for country or small towns.
Here is a table to show the main differences:
Feature | Pole-Mounted Transformers | Pad-Mounted Transformers |
|---|---|---|
Installation | High on utility poles, out of reach | On the ground, on a concrete pad |
Safety | Elevated, less risk from floods or vandalism | Enclosed, protects from weather and tampering |
Application Scenarios | Rural/suburban, overhead lines | Urban, underground distribution |
Maintenance | Access with bucket trucks | Needs ground space and careful access |
Aesthetic Impact | It can look messy in cities | Blends in with neighborhoods |
Pole-mounted transformers are common where wires are above ground. Pad-mounted transformers are used where wires run underground. The locked box on pad-mounted transformers keeps people safe. It also hides the equipment from view.
Pros and Cons
You might wonder which one is better. Each type has good and bad points.
Pole-Mounted Transformers:
Cost less because they use the pole already there.
Workers can fix them with bucket trucks.
Good for places with fewer people around.
Wind, rain, and animals can reach them.
They do not look nice in cities.
Pad-Mounted Transformers:
Safer because the box is locked and closed.
Look better in parks and neighborhoods.
Cost more to put in because of the concrete pad.
It can have problems if water floods the area.
Tip: In cities, you see more pad mounted transformers. In the country, pole mounted ones are more common.
Pad vs. Dry-Type
Cooling
Pad-mounted transformers use oil or a special liquid to cool down. The liquid moves heat away from the inside parts. The sealed box keeps the oil in and protects the transformer. Dry-type transformers do not use oil. They use air to cool off. These transformers have vents or fans to help with cooling.
Cooling Method | Pad-Mounted Transformer | Dry-Type Transformer |
|---|---|---|
Oil/Liquid Cooled | Yes | No |
Air Cooled | No | Yes |
Sealed Cabinet | Yes | Sometimes |
Applications
Pad-mounted transformers are made for outside use. You see them in neighborhoods, shopping centers, and factories. Their strong cases keep out rain and people. Dry-type transformers are used inside buildings. You find them in schools, hospitals, and offices. They do not need oil, so they are safer for indoor use.
Pad-Mounted Transformers:
Works great outside.
Can handle lots of power.
Protect against weather and tampering.
Dry-Type Transformers:
Best for inside rooms.
No worry about oil leaks.
Easy to put in small spaces.
Note: Pick a pad mounted transformer for outdoor, high-power needs. Choose a dry-type transformer for indoor, clean, and safe places.
Safety
Public Safety
Pad-mounted transformers are found in many neighborhoods and parks. These boxes help protect you from dangerous high-voltage electricity. You need to follow some safety rules when you are near one.
Stay away from the transformer box. High-voltage electricity is very dangerous.
Make sure nothing blocks the path to the transformer. Workers need to get to it for repairs.
Do not plant bushes or trees close to the transformer. Plants can block workers and make it hard to check the box.
Leave at least 10 feet open in front of the transformer. Keep about 4 feet clear on the sides and back.
City workers should keep tools and trash at least 15 feet away from the transformer.
Always call 8-1-1 before digging or planting near a transformer. Underground wires can break easily.
Tip: Never touch or play near a pad mounted transformer. The locked box and warning signs are there to keep you safe.
These easy steps help keep you, your family, and your neighbors safe. When you follow these rules, utility workers can do their jobs faster and safer.
Standards
Pad-mounted transformers must follow strict rules to keep everyone safe. These rules cover how the box is made and how it works in bad weather.
Standard | Description |
|---|---|
UL 50 | Make sure the box protects against weather and rust. |
UL 1741 | Checks if the transformer works safely with solar or wind power. |
IEEE C57.12.28 | Focuses on making the box hard to break into and safe to touch. |
ANSI C57.12.34 | Lists how strong and safe the transformer must be. |
10 CFR Part 431 | Sets rules for saving energy in transformers. |
NEMA TR 1 | Limits how loud the transformer can be in homes. |
NEMA 250 | Make sure the box keeps out dust and water. |
There are other important rules for pad-mounted transformers, too:
IEC 60076 tells how to test and build power transformers.
IEC 60216 checks how well insulation handles heat.
NEC gives rules for putting in electrical systems safely.
National Electrical Safety Code (NESC) has rules for safe design, even in earthquakes.
International Building Code (IBC) gives rules for strong buildings.
These rules help every pad-mounted transformer work safely and last a long time. You can trust that your power system follows these rules to protect you and your community.
You count on a pad-mounted transformer to get safe power at home. These transformers help keep you safe and save energy. They also help lower costs as time goes on. Their small size makes them fit well in crowded cities. Skilled workers like electricians and substation technicians put them in and check them. The table below shows why more cities use these transformers as they grow and need more power.
Key Trend | Impact on Pad-Mounted Transformers |
|---|---|
Urbanization | More need for small, dependable transformers |
Energy Efficiency | New tech helps them work better |
Renewable Energy Integration | Helps meet rising power needs |
Always let trained workers handle installation or repairs. Pad mounted transformers are very important for today’s power systems.
FAQ
What does a pad-mounted transformer do?
You get safe electricity from a pad-mounted transformer. It lowers high voltage from underground cables so you can use power at home, school, or work.
Where can you find pad-mounted transformers?
You see pad-mounted transformers in neighborhoods, shopping centers, parks, and factories. They sit on concrete pads near sidewalks or buildings.
Is it safe to touch a pad-mounted transformer?
You should never touch a pad-mounted transformer. The locked cabinet keeps you safe from high-voltage parts. Always stay away and follow warning signs.
How often do pad-mounted transformers need maintenance?
You need regular checks for pad-mounted transformers. Workers inspect them daily, weekly, monthly, and yearly to keep them working safely and reliably.
Can pad-mounted transformers work in bad weather?
You get steady power from pad-mounted transformers even in rain, snow, or heat. The strong, sealed cabinet protects the inside parts from weather.
Why do cities use pad-mounted transformers instead of pole-mounted ones?
Cities use pad-mounted transformers because they look better, fit in small spaces, and keep wires underground. You get safer and more reliable power in busy areas.
What should you do if you see damage on a pad-mounted transformer?
You should stay away and call your utility company if you see damage. Never try to fix or open the box yourself.
How do pad-mounted transformers help with underground power systems?
Pad-mounted transformers connect to underground cables. You get safe, steady power without overhead wires. This helps keep streets clean and neighborhoods looking nice.
