FSZW2 Series Power Post Insulator – Reliable Support for High Voltage Switchgear

High-Strength Epoxy Resin Core for Indoor & Outdoor HV Applications

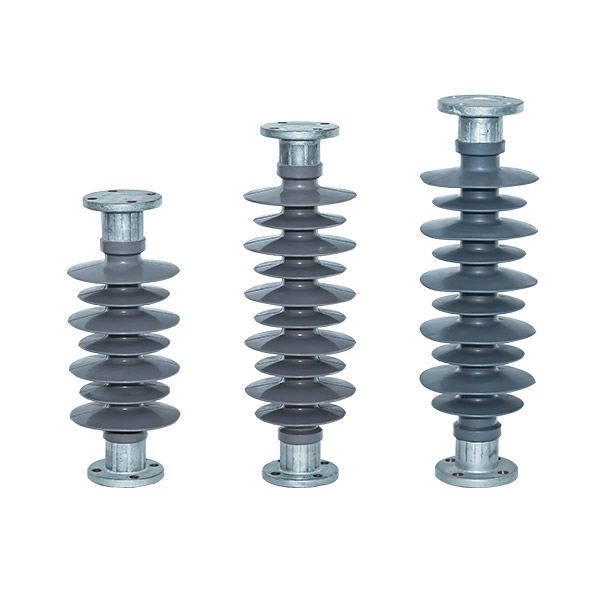

The FSZW2 series power post insulator is a robust, solid-core insulating unit used primarily in 35kV class power equipment, including high-voltage switchgear, isolators, and busbar supports. Made of high-strength epoxy resin with embedded metal inserts, this insulator provides excellent mechanical and dielectric performance in compact substation environments.

Compliant with IEC 60273 and GB/T 10068, FSZW2 insulators are commonly deployed across power plants, utilities, renewable energy projects, and industrial substations in both indoor and outdoor setups.

⚙️ Key Specifications (FSZW2-35kV Example)

🛠 Application Scenarios

• Indoor metal-clad switchgear insulation (11kV–35kV)

• Outdoor pole-mounted isolator post supports

• Busbar standoff insulation in compact substations

• Wind and solar farms require vibration-resistant insulators

• Replacement for aging ceramic or porcelain post insulators

🌟 Why Choose FSZW2?

• Solid epoxy insulation with low partial discharge

• High mechanical strength for stable busbar support

• Moisture-resistant, UV-stable surface

• Compact design ideal for space-constrained switchgear

• Available in custom heights and creepage distances

💬 Verified Feedback from Global Clients

🗣️ Nathan B., Grid Engineer – Energex, Australia
“FSZW2 units are compact, reliable, and haven’t failed once during our 2023 bushfire season.”
📌 Source: Energex Maintenance Report, Q4 2023

🗣️ Ellen C., Systems Designer – Enel Green Power, Italy
“We use FSZW2 insulators in 35kV solar inverter stations. Their epoxy construction handles vibration better than ceramic.”
📌 Source: Enel Equipment Evaluation Brief, 2022

🗣️ Alan S., Substation Manager – Manitoba Hydro, Canada
“In freezing wind and ice, they stay sealed and dry—better than legacy porcelain posts.”
📌 Source: Manitoba HV Asset Reliability Memo, 2023

🗣️ Gary T., Operations Head – Scottish & Southern Electricity Networks
“Compact footprint made switchgear retrofits smooth. Withstands 12kN easily.”
📌 Source: SSEN Project Retrofitting Summary, 2022

🗣️ Amanda L., Project Engineer – Pacific Gas & Electric (PG&E), USA
“Perfect choice for 35kV ring main units. Less weight, same mechanical stability.”
📌 Source: PG&E RMU Design Feedback Roundtable, 2022

❓ FAQs

• Is FSZW2 suitable for outdoor use?
Yes, the epoxy surface is UV-resistant and water-sealed for outdoor exposure.

• Can I use this on a 33kV isolator?
Absolutely. FSZW2 is rated up to 35kV with ample impulse withstand margins.

• Do you provide different mounting types?
Yes. Threaded flange, flat base, and custom inserts are all available.

• What’s the lifespan?
Over 25 years in most service conditions with zero maintenance.

• Is routine testing required?
Only visual inspection is typically needed. Full type test reports are included on delivery.

📞 Contact the Manufacturer for Quotation or Customization

Thor – Senior Engineer, Wei Shoe Elec
📞 Tel: +86-0577-62788197
📱 WhatsApp: +86 159 5777 0984
📧 Email: [email protected]

FSZW2 post insulators offer strong, stable, and compact insulation for modern HV systems. Upgrade today for better performance and easier maintenance.
