High Voltage Glass Insulators for Reliable Power Transmission

Product Overview

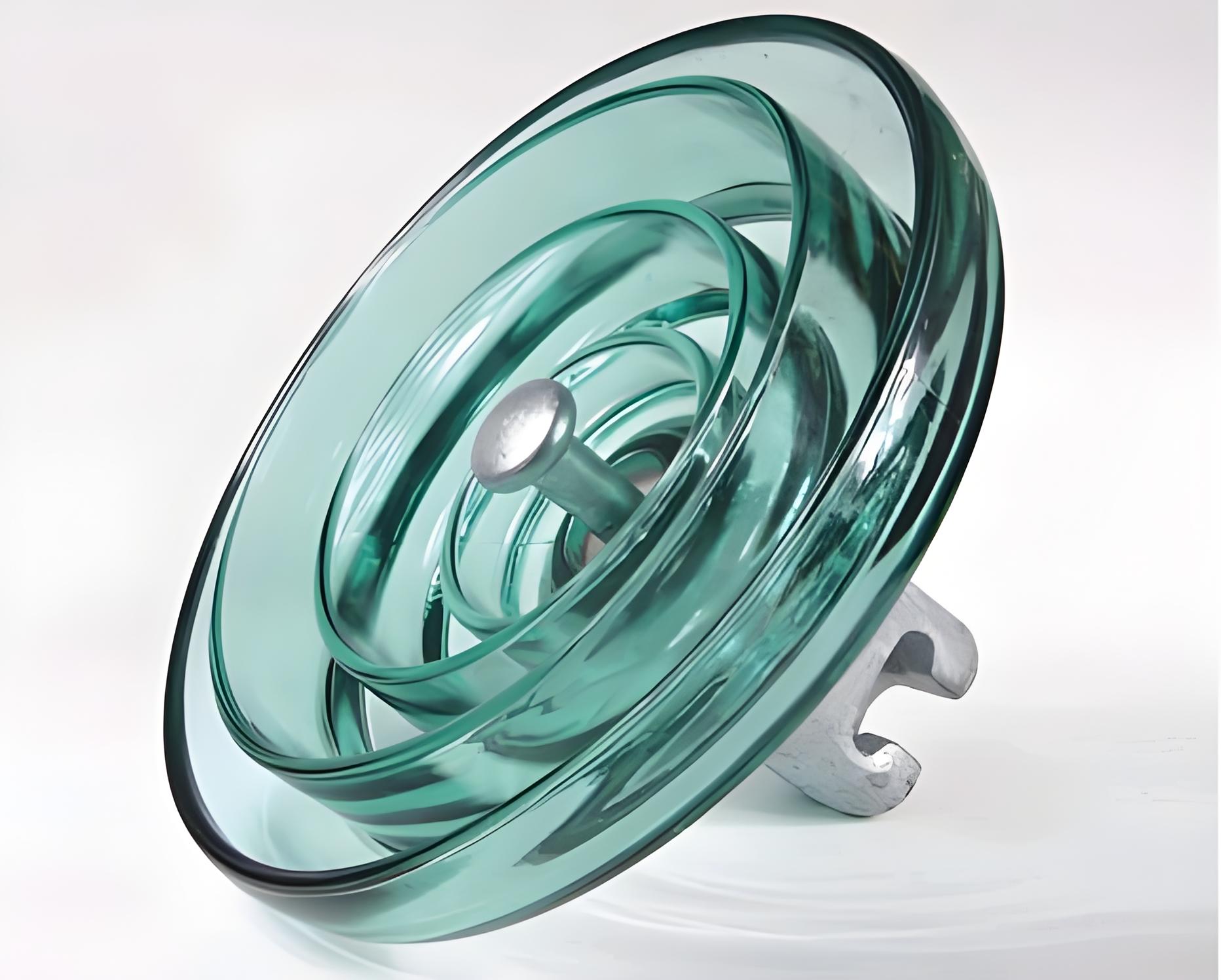

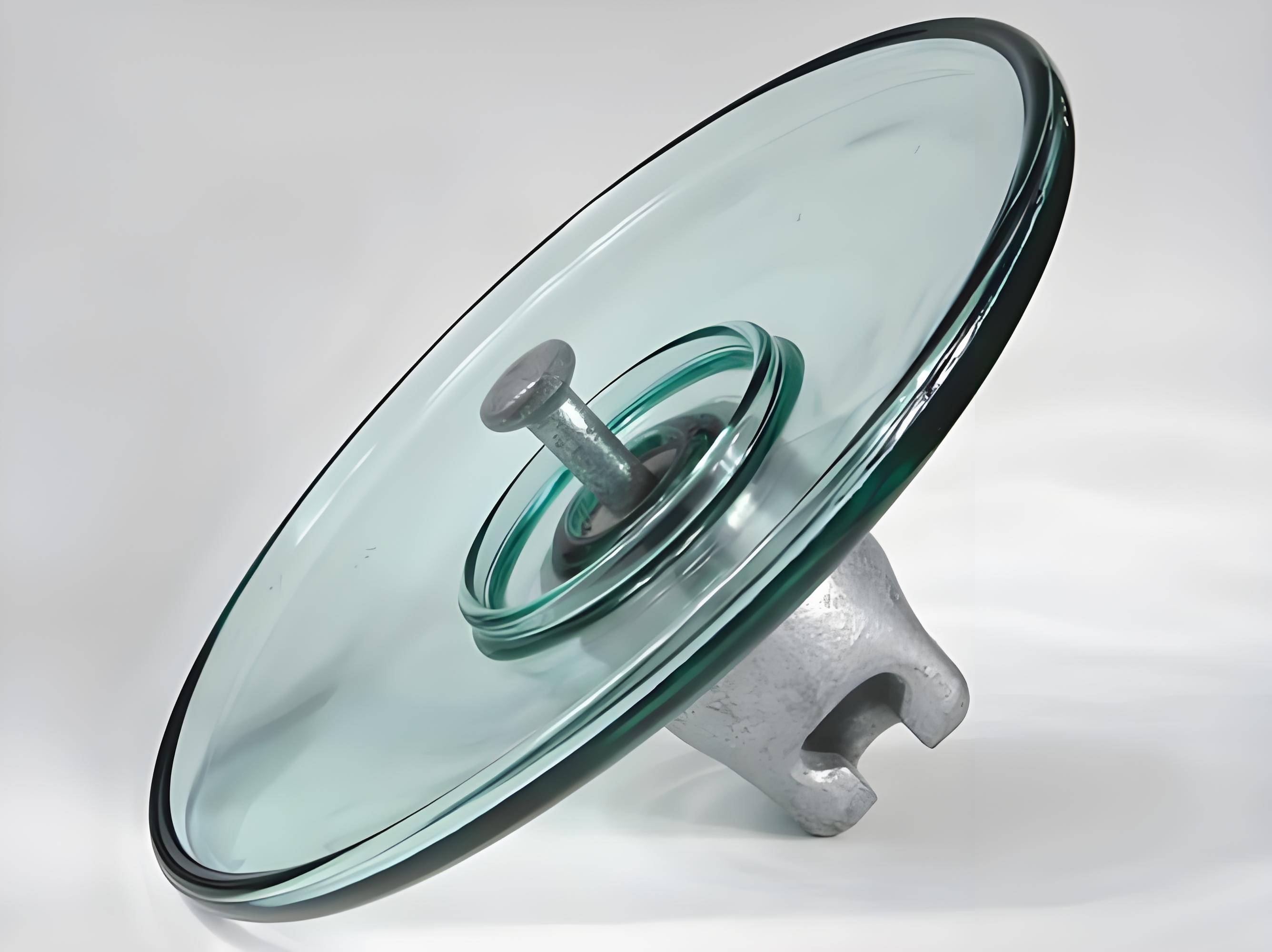

Glass insulators are widely used in high-voltage transmission and distribution systems to ensure reliable insulation and mechanical support for overhead power lines. Manufactured from toughened borosilicate glass, these insulators offer excellent electrical performance, long service life, and superior resistance to weathering and environmental stress.

At Wei Shoe Electric, our glass insulators are engineered to meet international standards for quality, mechanical strength, and electrical safety, making them a trusted choice for global power utilities and infrastructure projects.

Key Features

• Material: Toughened Borosilicate Glass

• Voltage Ratings: Up to 1000kV systems

• Mechanical Strength: Up to 300kN tensile load

• Self-cleaning Surface: Minimizes maintenance under outdoor conditions

• UV & Weather Resistant: Long service life even in harsh climates

• IEC Standards Compliant: Fully tested under IEC 60383, IEC 60433

Product Advantages

✅ Excellent Electrical Insulation:
High dielectric strength ensures safe operation under high-voltage conditions.

✅ Superior Mechanical Strength:
High tensile load capacity provides strong support for conductors.

✅ Long Service Life:
Excellent resistance to UV, acid rain, salt spray, and extreme temperatures.

✅ Self-Cleaning Properties:
Smooth glass surface reduces pollution accumulation and flashover risks.

✅ Visual Inspection Friendly:
Transparent material allows easy detection of internal defects.

Technical Specifications

Applications

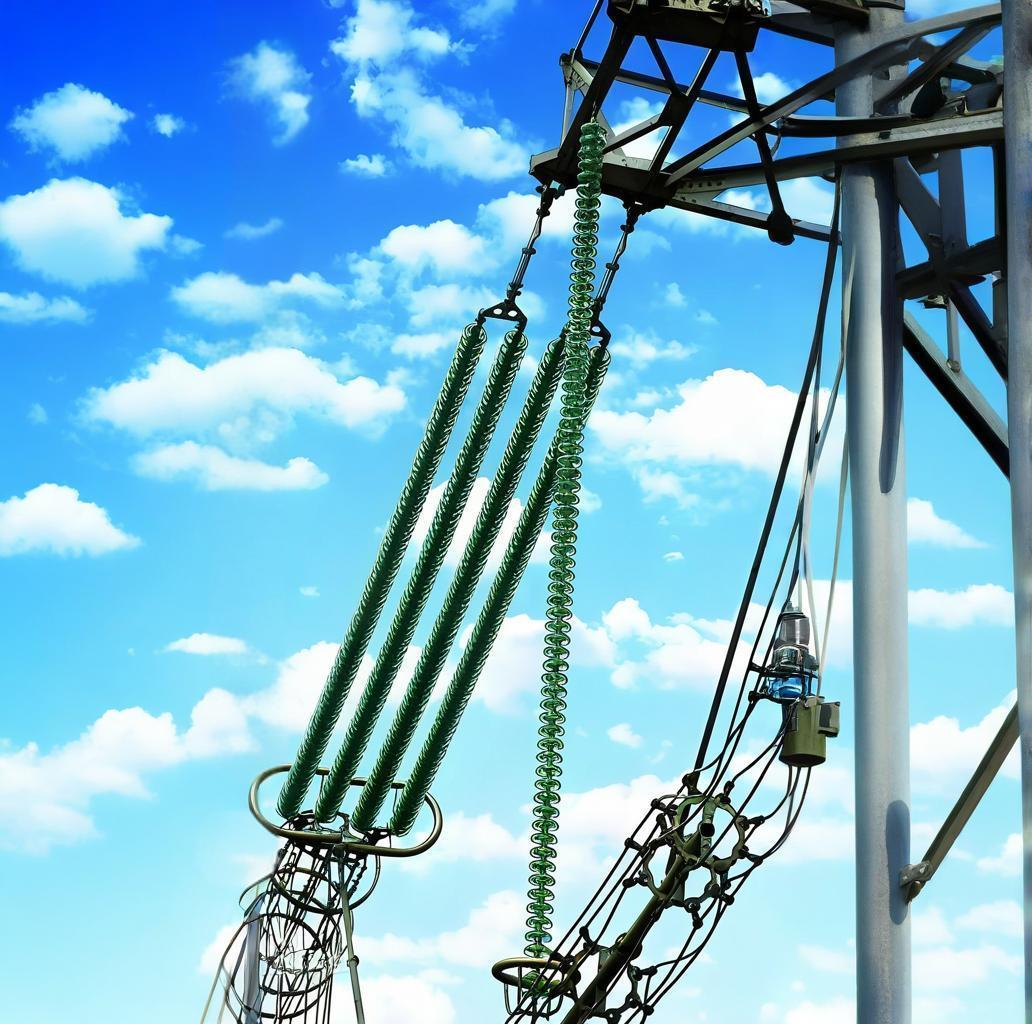

• High Voltage Transmission Lines (11kV ~ 1000kV)

• Distribution Networks

• Substation Bus Supports

• Railway Electrification Systems

• Offshore Wind Farms

• Mountainous and Coastal Power Lines

Certifications & Compliance

• IEC 60383

• IEC 60433

• GB/T 1001

• ISO 9001:2015 Factory Certification

• Type Test Reports available

Production Quality Control

Our factory employs strict quality assurance procedures:

• 100% visual inspection before shipment

• Mechanical tensile testing for every batch

• Electrical withstand and flashover voltage tests

• Salt fog pollution tests for coastal applications

Case Study: Wind Farm Transmission Project in Spain

In 2022, Wei Shoe Electric supplied over 12,000 units of 160kN glass suspension insulators for a 220kV wind farm grid connection project in northern Spain. Despite operating in a coastal environment with high humidity and salt exposure, the insulators maintained excellent performance without flashover incidents for over 18 months of continuous operation.

(Source: Project Data, European EPC Partner 2023)

Ordering Information

Frequently Asked Questions (FAQ)

Q1: What is the advantage of glass insulators over porcelain?
A: Glass insulators offer better self-cleaning, easier defect detection, and higher consistency in mechanical strength compared to porcelain.

Q2: Can glass insulators be used in polluted areas?
A: Yes, their hydrophobic surface reduces contamination accumulation, minimizing flashover risk even in coastal or industrial environments.

Q3: Do you offer type test reports?
A: Yes, full type test reports according to IEC standards are available for all models.

Q4: Can I order small quantities for pilot projects?
A: Yes, we support both large-scale projects and small trial orders with flexible MOQ.

Q5: What packaging method do you use?
A: Standard export wooden crates with anti-shock and moisture-proof protection.
