FXBW Series Rod-Type Composite Suspension Insulator for 11–220kV Transmission Lines

Lightweight, Pollution-Resistant Solution for Overhead HV Networks

The FXBW series rod-type composite suspension insulator is a high-performance insulating device widely used in 11kV to 220kV overhead transmission systems. Featuring a silicone rubber housing and fiberglass rod core, this insulator offers superior mechanical strength, excellent hydrophobicity, and outstanding anti-pollution performance compared to traditional porcelain models.

Each unit conforms to IEC 61109 and GB/T 19519 standards, making it suitable for use in polluted, coastal, alpine, and high-altitude environments.

⚙️ Key Features

• Rated voltage range: 11kV–220kV

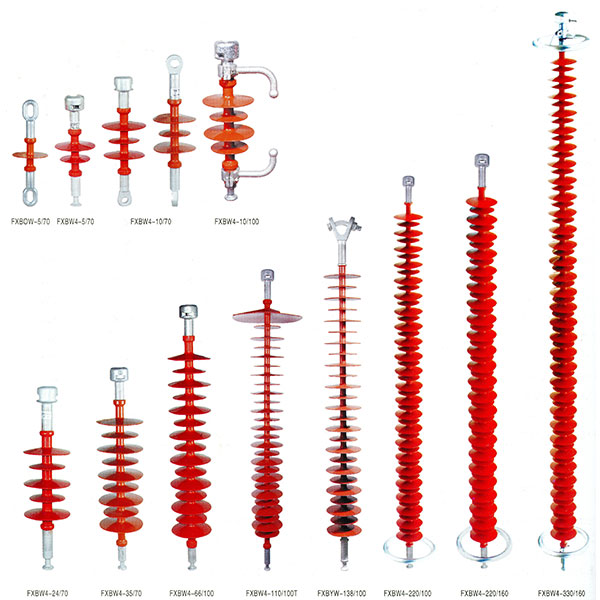

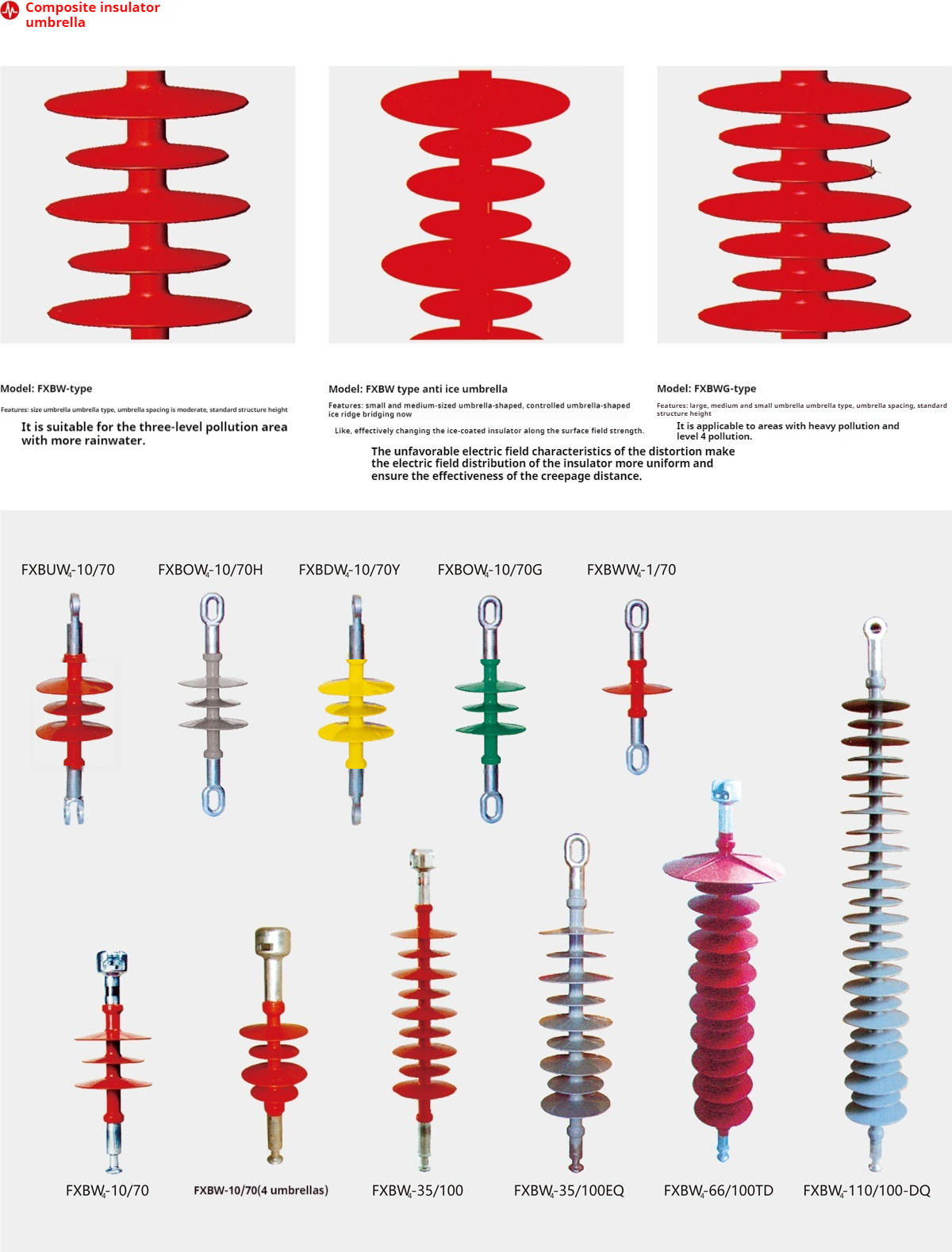

• Standard models: FXBW-11/70, FXBW-35/100, FXBW-110/160, FXBW-220/210

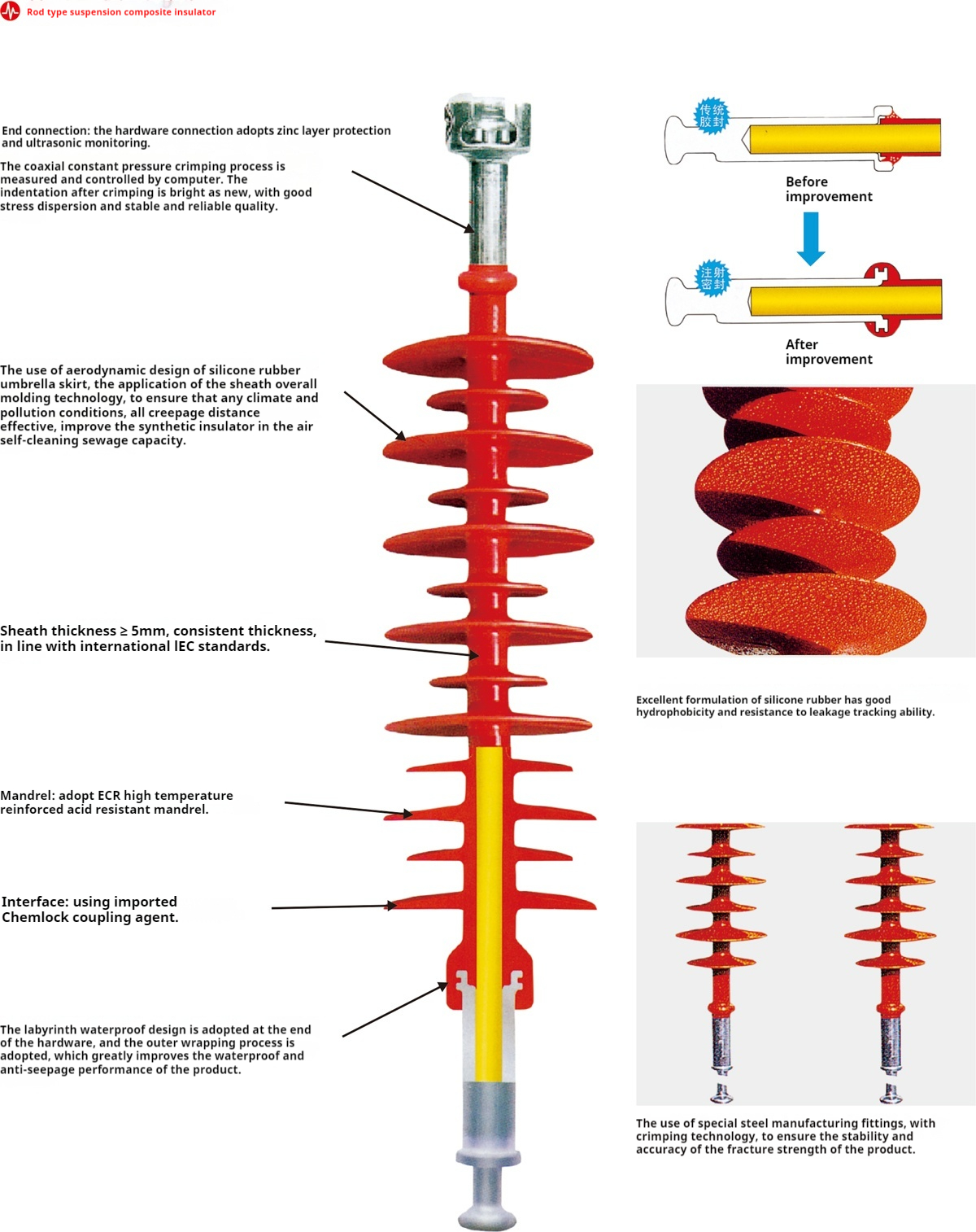

• Rod core: High-strength epoxy fiberglass

• Housing: High-temperature vulcanized (HTV) silicone rubber

• Metal fittings: Hot-dip galvanized steel or aluminum alloy

• Tensile strength: 70–210kN

• Design lifespan: 30+ years, maintenance-free

• Pollution flashover resistance: Excellent

📐 Technical Parameters (Sample Model: FXBW-35/100)

🌍 Application Scenarios

• Urban and rural overhead lines (11kV, 33kV, 66kV, 110kV)

• High-pollution industrial zones and coastal corridors

• Renewable energy transmission structures (wind/solar)

• Subzero alpine regions or areas with heavy icing

• Retrofitting porcelain insulators on aged towers

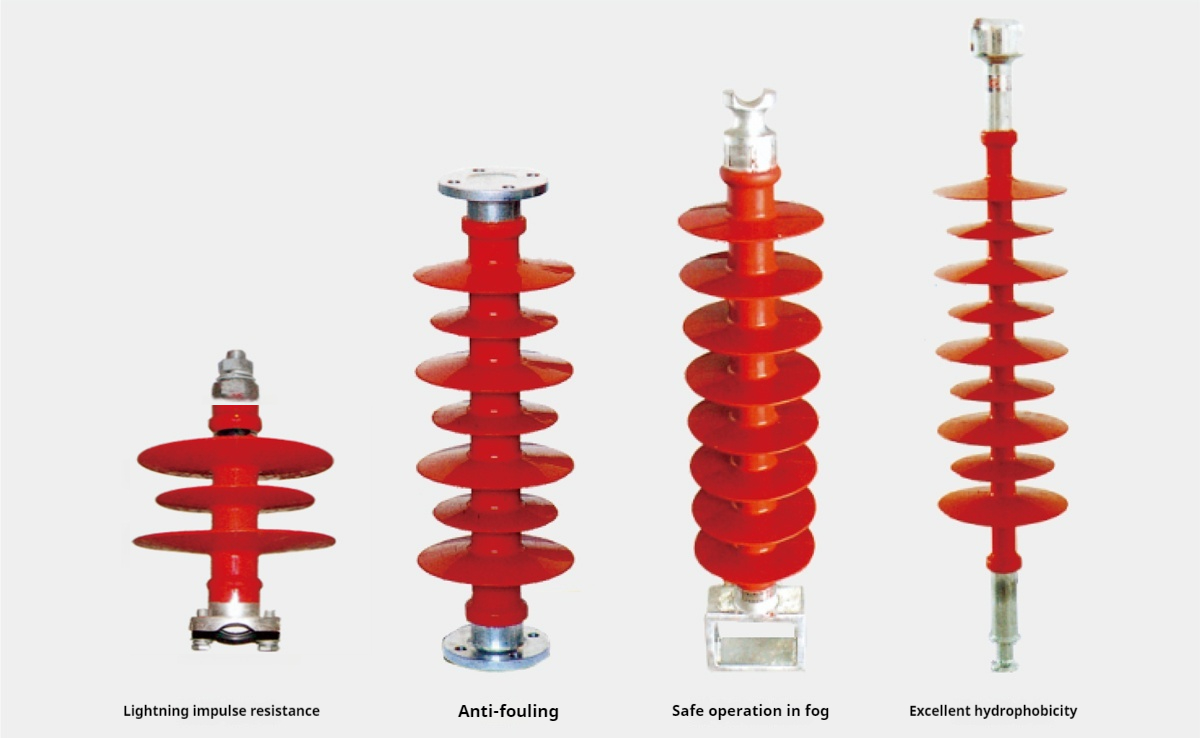

🧩 Advantages Over Traditional Porcelain

• 60–70% weight reduction: Easier transport & installation

• Superior anti-pollution properties: Hydrophobic silicone resists dust/water adhesion

• Shatterproof and safe: No risk of explosion or ceramic breakage

• Minimal maintenance: No regular washing required

• Better UV and acid resistance: Ideal for industrial or desert environments

💬 Verified Customer Feedback

🗣️ Liam C., Grid Inspector – ESB Networks, Ireland
“We’ve replaced aging porcelain units on 33kV feeders with FXBW models. Reduced flashover incidents and simplified our annual inspection routines.”
📌 Source: ESB Equipment Upgrade Bulletin, 2023

🗣️ Danielle M., Maintenance Engineer – Hydro-Québec, Canada
“The FXBW insulators show excellent performance through freezing rain and temperature swings in the Laurentians.”
📌 Source: Hydro-Québec Winter Grid Resilience Study, 2022

🗣️ Masato H., Technical Buyer – Tohoku Electric Power, Japan
“With silicone housing, even our coastal towers on salt-laden wind paths report stable leakage current.”
📌 Source: Tohoku HV Line Maintenance Report, 2023

🗣️ Theo R., Asset Planner – TransnetBW, Germany
“They weigh a fraction of our old ceramic units and install twice as fast. Ideal for limited-access terrain.”
📌 Source: TransnetBW Modernization Project Field Notes, 2022

🗣️ Sarah L., Renewable Project Manager – EDP Renováveis, Spain
“Used on wind farm collector lines. Corrosion-proof and zero service complaints in 18 months.”
📌 Source: EDP Wind Infrastructure Performance Review, 2023

❓ Frequently Asked Questions

• Can I use FXBW insulators on wood or steel poles?
Yes. Models are available with ball/socket or clevis-type fittings for all structures.

• What’s the maximum service voltage supported?
Standard FXBW units are available up to 220kV. Custom models up to 330kV can be supplied.

• How does silicone housing improve performance?
It maintains a water-repellent surface even under contamination, reducing flashover risk.

• Can these replace existing porcelain units directly?
Yes. Mechanical and electrical equivalence is ensured. Retrofit brackets are available.

• Are test certificates available?
Each product includes full type/routine test reports by IEC 61109.

📞 Contact Us for Technical Guidance or a Quote

Thor – Electrical Engineer, Wei Shoe Elec
📞 Tel: +86-0577-62788197
📱 WhatsApp: +86 159 5777 0984
📧 Email: [email protected]

Upgrade to FXBW insulators for a safer, lighter, and more reliable high-voltage line experience.
