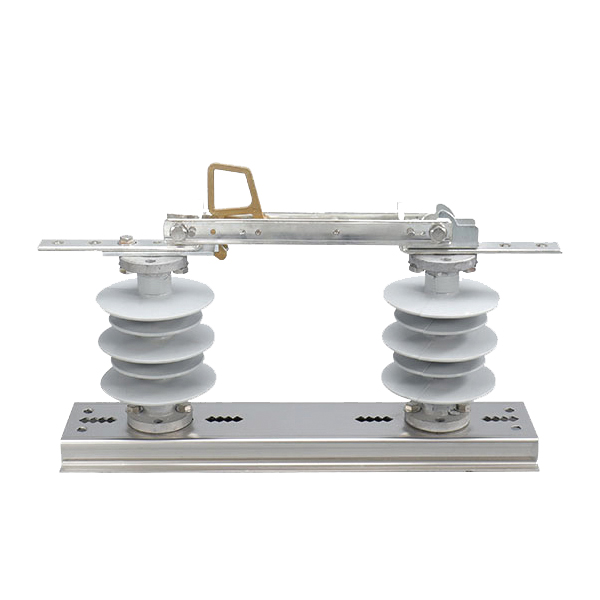

HDCR-12-630 Outdoor 12kV Single-Pole Isolator Switch

⚡ Reliable Manual Isolation for 12kV Overhead Networks

The HDCR-12-630 Outdoor Single-Pole Isolator Switch is designed to provide visible disconnection and manual isolation in medium-voltage overhead distribution systems. With a rated voltage of 12kV and current capacity of 630A, it is ideal for rural grid feeders, branch lines, or emergency bypass applications.

This switch features high-strength porcelain or polymer insulators, corrosion-resistant metalwork, and a weatherproof operating mechanism, ensuring long-term performance in challenging environments.

🔧 Key Technical Parameters

🌍 Application Highlights

• Feeder and Tap Line Isolation
  Allows safe maintenance by isolating sections of 12kV overhead lines.

• Emergency Disconnection
  Enables manual cut-off during fault or maintenance scenarios.

• Compact and Easy to Install
  Suitable for installations on concrete, steel, or wooden poles.

• Weather-Resistant
  Withstands high humidity, UV radiation, and industrial pollution.

• Flexible Configurations
  Available with single-throw or double-throw blades based on system design.

✅ Field Use Example

Kenya Rural Electrification Authority deployed HDCR-12-630 on feeder branches to reduce the load during transformer replacement, ensuring safe working without needing full feeder shutdown.

Source: Kenya Power Sector Case Report 2023

🌟 Customer Testimonials

🔹 Marcus B. – Utility Supervisor, National Grid UK
"Installation took less than 30 minutes, great visibility of open position—safe and straightforward."

🔹 Olivia H. – Technical Engineer, Eskom (South Africa)
"Reliable in remote highland regions, even during high wind and storm events."

🔹 Adam S. – Contractor, Pacific Power (Australia)
"Easy operation and low maintenance. A solid component for medium-voltage isolation."

🔹 Caroline T. – Grid Engineer, PLN Indonesia
"Helped reduce our switching times and isolated faults quickly. Very useful in forested areas."

🔹 John E. – Maintenance Lead, ENEE Honduras
"The rugged build of HDCR-12 makes it ideal for tropical and coastal climates."

❓ FAQ – HDCR-12-630 Isolator Switch

• Can this switch be used in three-phase systems?
Yes, install three units (one per phase) for full 3-phase isolation.

• Is remote control possible?
This version is manual only. Motorized variants can be offered on request.

• Is this suitable for windy mountain zones?
Yes, tested against mechanical vibration and fitted with anti-wind locks.

• What maintenance is required?
Only visual checks and blade lubrication are required annually.

• What’s the open distance between contacts?
Typically >280mm, sufficient for visible disconnection per IEC standards.
