H-GW9-10 Outdoor High Voltage Isolator Switch 10kV Outdoor Breaker Hot-Dip Galvanized Anti-Cor

In outdoor power transmission and distribution systems, Isolator switches serve as core switching devices, fulfilling the critical responsibility of isolating high-voltage circuits and ensuring equipment maintenance safety. Their performance directly impacts grid operational reliability and personnel safety. Weisho Electric, leveraging its 12 years of profound experience in high-voltage switchgear and outdoor power solutions, proudly introduces the H-GW9-10 Outdoor High Voltage Isolator Switch.

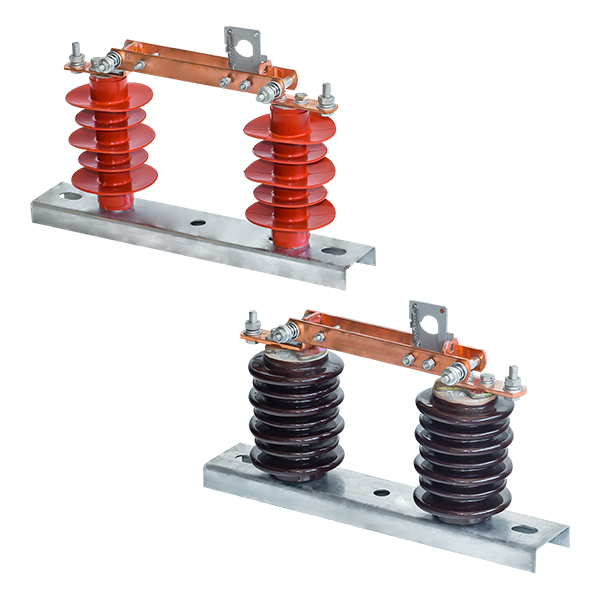

The H-GW9-10 outdoor Isolator switch is specifically designed for outdoor AC power systems with voltage levels of 10kV and below. It offers reliable capabilities for making and breaking power circuits, as well as switching electrical lines, particularly suitable for no-load conditions or situations with minor voltage fluctuations. The design of this model thoroughly considers the severity of outdoor environments; from material selection to manufacturing processes, every detail reflects Weisho Electric's unwavering commitment to product reliability and durability. Notably, key iron components utilize advanced hot-dip galvanization technology, providing exceptional anti-corrosion performance to ensure the equipment's long-term stable operation in harsh outdoor conditions such as wind, rain, humidity, and salt spray.

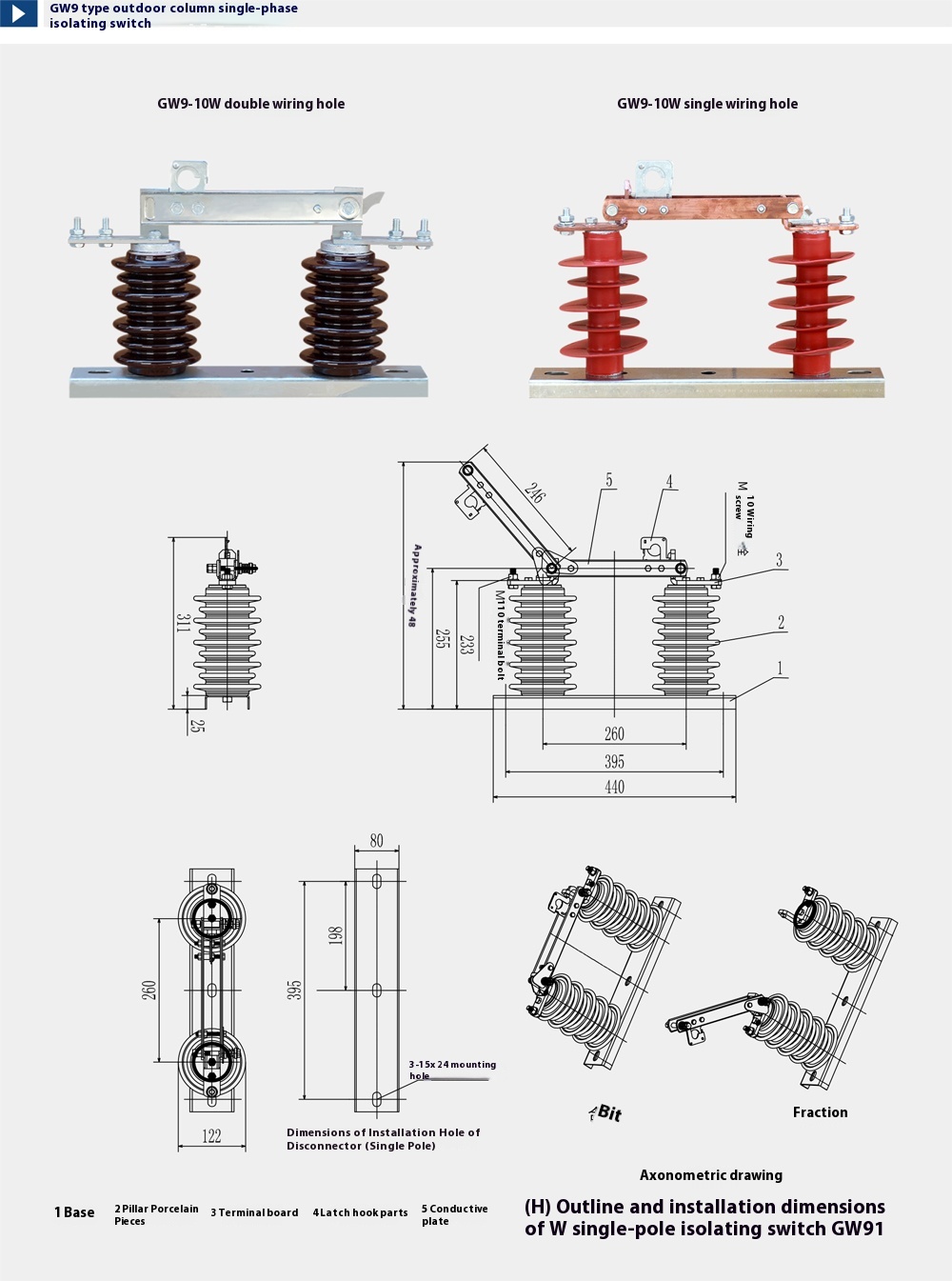

H-GW9-10 Outdoor High Voltage Isolator Switch 10kV Outdoor Breaker Hot-Dip Galvanized Anti-Cor

Core Advantages & Features: Robust, Weather-Resistant, Safe, and Reliable

Weisho Electric's H-GW9-10 Outdoor High Voltage Isolator Switch, integrating cutting-edge technology with rigorous craftsmanship, offers you the following core advantages:

1. Excellent Outdoor Environmental Adaptability and Anti-Corrosion Capability:

Technical Detail: Key iron components, such as brackets, bases, and operating rods, undergo hot-dip galvanization surface treatment. The hot-dip galvanized coating provides excellent adhesion, wear resistance, and superior electrochemical protection. The porcelain insulators feature a special glazed surface, offering hydrophobicity and anti-pollution flashover capabilities.
Key Benefit: Ensures that the H-GW9-10 Isolator switch maintains long-term stable electrical and mechanical performance in harsh outdoor environments, including high temperatures, low temperatures, humidity, salt spray, direct UV radiation, and industrial pollution. This significantly extends the equipment's service life and reduces maintenance costs.

2. Highly Reliable Electrical Isolation with Clear Disconnection Point:

Technical Detail: When opened, the Isolator switch creates a visible air insulation gap, ensuring complete isolation of the equipment from the power source. The contact system uses highly conductive materials and a self-cleaning design to ensure reliable contact and disconnection during opening and closing operations.
Key Benefit: Provides high-standard electrical isolation assurance, eliminating the risks of live working, and safeguarding the personal safety of maintenance personnel and the safety of downstream equipment during overhaul, in strict compliance with electrical operating procedures.

3. Robust Mechanical Structure and Stable Operating Performance:

Technical Detail: Employs a sturdy frame structure and high-quality components, ensuring the stability and durability of mechanical operation. The operating mechanism is rationally designed for light and reliable opening/closing operations, and can be equipped with manual or motorized operating mechanisms.
Key Benefit: Guarantees smooth operation of the Isolator switch even under strong winds or freezing conditions, reducing outages caused by mechanical failures and enhancing grid operational reliability.

4. Easy Installation and Convenient Maintenance:

Technical Detail: Features a simple design and standardized structure, facilitating on-site installation and wiring. Porcelain insulators require low maintenance, and the hot-dip galvanized coating significantly reduces the need for routine anti-corrosion coating maintenance.
Key Benefit: Dramatically shortens installation time and costs, lowers the complexity of daily inspection and maintenance, saving substantial human and material resources for power companies.

5. Compliant with International and National Standards:

Advantage: Product design, manufacturing, and testing strictly adhere to relevant IEC (International Electrotechnical Commission) and GB (Chinese National Standard) standards, ensuring that product performance reaches advanced international levels.

Applications: Critical Component of Outdoor Power Systems

Weisho Electric's H-GW9-10 Outdoor High Voltage Isolator Switch, with its excellent performance and flexibility, is widely applied in outdoor power systems with voltage levels of 10kV and below, making it an ideal choice for the following scenarios:

Transmission and Distribution Lines: Used as isolation protection for line branches, sections, or terminals, facilitating line inspection and fault isolation.
Outdoor Substations and Distribution Stations: For isolating the high-voltage side of transformers and feeder circuits, coordinating with circuit breakers to enable safe maintenance.
Power Cable Line Terminals: Provide isolation protection at the connection points between cable lines and overhead lines.
Outdoor Switching Stations: As a component of outdoor switchgear, they achieve power source switching and line isolation.
Rural Power Grid Modernization: Simplifies the maintenance and management of outdoor lines, enhancing power supply reliability.
Industrial Parks and Large Mines: Provides reliable electrical isolation in outdoor power distribution areas.

Technical Specifications & Standard Compliance

Weisho Electric's H-GW9-10 Outdoor High Voltage Isolator Switch strictly adheres to relevant international and domestic standards, ensuring its excellent performance and reliability.

Environmental Conditions

No.	Item	Value
1	Extreme Max. Air Temperature (°C)	+40
2	Extreme Min. Air Temperature (°C)	-30 (Lower temperatures customizable)
3	Altitude (m)	＜1000 (Customization needed for higher altitudes)
4	Max. Wind Speed (m/s)	≥ 34 (Beaufort Scale 12, higher speeds with special design)
5	Ice Thickness (mm)	10 (or as per customer requirements)
6	Seismic Intensity	8 degrees
7	Pollution Level	Class IV and above

Main Electrical & Mechanical Parameters (H-GW9-10)

Parameter	Value/Description
General Parameters
Rated Voltage	10kV
Rated Current	200A, 400A, 630A, 1000A, 1250A, etc. (depending on specific model)
Rated Frequency	50Hz
Current Parameters
Rated Short-Time Withstand Current (KA)	16 (depending on rated current)
Rated Short-Time Withstand Duration (S)	4
Rated Peak Withstand Current (KA)	40 (depending on rated current)
Insulation Performance
Lightning Impulse Withstand Voltage (KV) (Phase-to-Phase, Phase-to-Earth)	75
1min Power Frequency Withstand Voltage (KV) (Phase-to-Phase, Phase-to-Earth, Across Isolating Distance)	42
Materials & Structure
Insulators	Outdoor porcelain insulators or composite insulators
Conductive Components	High-quality copper, silver-plated surface
Iron Components	High-quality steel, hot-dip galvanized anti-corrosion treatment
Mechanical Performance
Mechanical Endurance	≥ 2000 operations
Operation Method	Manual operation or motorized operation

Quality Assurance & Authoritative Certifications

At Weisho Electric, our commitment to product quality is our cornerstone. The H-GW9-10 Outdoor High Voltage Isolator Switch adheres strictly to international quality management systems and industry standards, from design and raw material procurement to precision manufacturing and factory testing.

ISO 9001 Quality Management System Certification: Ensures that every stage, from design and production to delivery, meets the highest quality standards.
IEC 62271-102 Standard Compliance: Our product design and testing strictly conform to the latest International Electrotechnical Commission standards for AC high-voltage disconnectors and earthing switches, ensuring global compatibility and reliability.
GB/T 11022 and GB/T 1985 Standard Compliance: Product performance meets the requirements of China's national standards for "Common Specifications for High-Voltage Switchgear and Controlgear Standards" and "AC High-Voltage Disconnectors and Earthing Switches."
CE Certification (Conformité Européenne)

Every Weisho Electric H-GW9-10 Outdoor High Voltage Isolator Switch undergoes rigorous mechanical endurance tests, temperature rise tests, short-time withstand current tests, lightning impulse withstand voltage tests, power frequency withstand voltage tests, and stringent outdoor environmental simulation tests before leaving the factory, ensuring reliable and safe isolation protection under all operating conditions. We possess advanced production lines and high-voltage testing laboratories, guaranteeing excellent quality from core components to the final product.

Installation & Maintenance: Simplified Deployment, Ensuring Continuous Operation

Weisho Electric's H-GW9-10 Outdoor High Voltage Isolator Switch is robustly designed for durability and ease of installation, adaptable to pole-mounted or structure-mounted configurations. Its unique anti-corrosion design and high-quality materials significantly reduce the frequency and cost of routine maintenance. We provide detailed installation manuals and professional on-site/remote technical support services to ensure the product operates safely and efficiently, offering long-term, reliable service.

Customer Testimonials: Professional, Trustworthy

Hear what our global customers have to say about Weisho Electric's H-GW9-10 Outdoor High Voltage Isolator Switch:

We used Weisho Electric's H-GW9-10 Isolator switches for a remote transmission line project in Alberta, Canada. Despite severe cold and strong winds, the equipment's mechanical operation remained very smooth, and the hot-dip galvanized treatment performed excellently with no signs of corrosion. We are highly satisfied with the product's reliability."

— John D. Smith, Field Engineer, Canadian Power Infrastructure Company

"In the extremely high-temperature and high-humidity environment of Dubai, UAE, corrosion resistance of outdoor equipment is our top priority. Weisho Electric's H-GW9-10 Isolator switch, with its outstanding hot-dip galvanization process, perfectly met the local climate challenges, operating stably and reliably with very low maintenance to date."

— Fahad Abdullah, Procurement Manager, UAE Municipal Power Authority

Weisho Electric provided the H-GW9-10 Isolator switches for our power distribution network expansion project in the Amazon region, Brazil. In the humid and rainy environment, its insulation performance and anti-pollution flashover capability proved exceptional, effectively ensuring stable line operation. We highly commend Weisho Electric's product quality and professional service."

— Maria P. Silva, Project Manager, Brazilian Power Engineering Company

Expert Insight: Content Authored by Industry Professional

The detailed content on this page regarding the H-GW9-10 Outdoor High Voltage Isolator Switch is proudly presented by Engineer Thor from Weisho Electric.

Mr. Thor is a key technical backbone at Weisho Electric Co., Ltd., a prominent Chinese foreign trade manufacturer dedicated to serving clients across Europe, the Americas, the Middle East, Belt and Road Initiative countries, and globally. With 12 years of invaluable industry experience, he specializes in the R&D, design, testing, and application of outdoor high-voltage Isolator switches, switchgear, and other outdoor power solutions, possessing a profound understanding and practical expertise in product technology, outdoor environmental challenges, and customer requirements.

Should you have any inquiries about our H-GW9-10 Outdoor High Voltage Isolator Switch or require customized outdoor power protection solutions, please feel free to contact Thor:

Phone: +86-577-62788197
WhatsApp: +86 159 5777 0984
Email: [email protected]

Contact Weisho Electric Today to Upgrade Your Outdoor Line Protection!

Contact our expert team for a personalized consultation, detailed technical solutions, or a customized quote. Let's work together to build safer, more durable, and more efficient outdoor power systems for your project!
