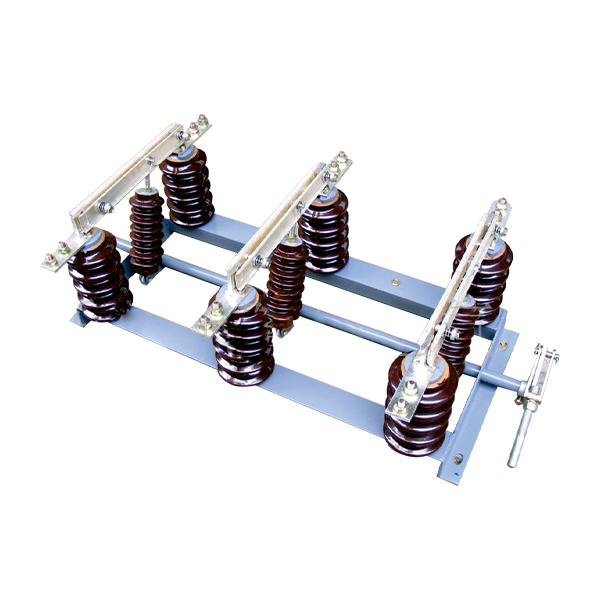

GW1-10(DDW)-630/1250 Split/Combined Outdoor HV Isolator Switch
Core Overview: Essential for Safe Isolation in Outdoor High Voltage Lines.
In outdoor high-voltage transmission and distribution systems, especially for overhead lines and substation equipment, a crucial device is needed to provide reliable isolation. The GW1-10(DDW)-630/1250 Split-type/Combined-type Outdoor High Voltage Isolator Switch from Weisho Electric is precisely engineered for this purpose.
It is a critical component for ensuring the safe isolation of circuits during maintenance or operational changes. This switch is ideally suited for outdoor power systems with a rated voltage of 10KV and below, and an AC frequency of 50Hz, providing a clear, visible break for enhanced safety.
Product Features & Core Advantages: Flexible Configuration, Uncompromised Safety
Every aspect of the GW1-10(DDW)-630/1250 Isolator switch is designed to provide robust, versatile, and safe isolation solutions for outdoor high-voltage systems.
Split-type/Combined-type Structure for Flexible Adaptation: The "Split-type" design allows for separate installation of individual poles, offering adaptability for various site conditions and reducing transportation challenges. The "Combined-type" provides a unified structure, simplifying installation in certain scenarios.
This structural flexibility ensures the switch can be integrated seamlessly into diverse outdoor power network layouts, optimizing space and installation efficiency.
Reliable Isolation Point with Clear Visibility: As a Isolator switch, its primary function is to create a physical, visible gap in the circuit, ensuring absolute isolation. When opened, the contacts are separated, providing undeniable visual confirmation that the line is de-energized.
This visible break is fundamental for safety protocols, allowing maintenance personnel to work confidently on downstream equipment without residual risk.
Robust Performance in Outdoor Environments: Designed to withstand the rigors of outdoor conditions, the GW1-10(DDW) utilizes high-strength porcelain or composite insulators. It is built to resist environmental factors such as wind, rain, snow, ice, UV radiation, and atmospheric pollution.
Its durable construction and anti-corrosion treatments ensure long-term, stable performance even when continuously exposed to harsh weather.
Manual Operation with Ease and Reliability: The switch is designed for manual operation using an insulated hot stick, making it a straightforward and reliable component for field personnel. Its mechanical design ensures smooth opening and closing actions.
This manual operation method is widely adopted for its simplicity and robustness in providing a clear physical disconnection.
Cost-Effective Solution for Line Sectionalizing: The GW1-10(DDW) provides an economical approach to sectionalizing high-voltage lines. It allows for isolating specific sections of the network for maintenance or fault clearance without affecting the entire grid.
This makes it a practical and efficient choice for enhancing the operational flexibility of distribution networks.
Working Principle: Creating a Safe, Visible Break
The GW1-10(DDW) outdoor high voltage Isolator switch operates on the principle of providing a secure, visible air gap in a circuit. In its closed position, the switch's contacts complete the electrical path, allowing current to flow.
When maintenance or a planned outage is required, an operator uses an insulated hot stick to physically open the switch. The contacts separate, creating a clear and visible air gap for insulation. This gap ensures that no current can flow through the switch, thus safely isolating the downstream section of the line or equipment from the energized part of the system.
It is important to note that Isolator switches are typically designed for operation under no-load conditions or extremely small charging currents. They are generally not rated to interrupt fault currents (like short circuits) or significant load currents without specific arc-quenching chambers (which differentiate them from load-break switches or circuit breakers). The "DDW" designation often implies some enhanced breaking capability for small load currents or magnetizing currents of transformers, making it more versatile than a pure Isolator switch.
Detailed Technical Specifications: Precision for Safe Operation
Typical Application Scenarios & Global Case Studies: Ubiquitous Safety in Outdoor Power
The GW1-10(DDW)-630/1250 outdoor high voltage isolator switch, with its clear isolation and operational flexibility, plays a vital role across various outdoor power distribution networks globally.
Substation Feeder Line Isolation in the USA:
Client: A regional utility company in the Midwestern United States.
Project Challenge: The need for reliable, visible isolation points at the outgoing feeder lines of substations for routine maintenance and repair. The system required flexibility for both new construction and retrofitting existing infrastructure.
Weisho Solution: Weisho Electric supplied the GW1-10(DDW) Isolator switches, specifically favoring the combined-type for its simplified installation at substation outlets. The switches provided clear, physical breaks, enhancing safety protocols for maintenance crews.
Client Feedback: "The Weisho GW1-10(DDW) switches offer the robust isolation we need at our feeder points. Their straightforward operation and clear visual indication are key for our safety procedures." — Sarah Chen, Substation Operations Manager.
Line Sectionalizing in Canadian Rural Grids:
Client: A rural electric power distributor in Canada.
Project Challenge: Long overhead lines in remote, often forested areas required effective sectionalizing points to minimize the impact of outages. The climate included severe winters with snow and ice.
Weisho Solution: The split-type GW1-10(DDW) switches were ideal for distributed sectionalizing, easily installed on utility poles. Their robust design ensured reliable performance even during harsh winter conditions.
Client Feedback: "These Isolator switches are crucial for managing our extensive rural network. The ability to isolate specific sections quickly and safely, even in tough winter weather, has significantly improved our outage response times." — David Miller, Field Operations Supervisor.
Primary Isolation for Pole-Mounted Equipment in the Australian Outback:
Client: A contractor for remote off-grid power solutions in Australia.
Project Challenge: Providing safe isolation for pole-mounted transformers and other equipment in the vast, high-temperature, and often dusty Australian Outback. Equipment needed to be highly durable and simple to operate.
Weisho Solution: The GW1-10(DDW) Isolatorswitches were chosen for their robust outdoor performance and simple, reliable manual operation. They provided essential primary isolation points for critical equipment.
Client Feedback: "The GW1-10(DDW) switches have been perfect for our remote installations. They're built tough for the Outback conditions, and their simplicity is a big advantage for our field teams." — Mark Davies, Project Lead.
Installation, Maintenance, and Safety Assurance: Streamlined Operations, Uncompromising Safety
Efficient and Versatile Pole-Mounted Installation: The GW1-10(DDW) is engineered for straightforward outdoor pole-mounted installation. Its standardized mounting brackets and adaptable split-type/combined-type configurations facilitate quick and secure attachment to utility poles. This significantly streamlines construction timelines and simplifies installation logistics.
Direct Visual Confirmation for Safe Maintenance: A key advantage of this Isolator switch is the clear, visible air gap it creates when opened. This provides unambiguous visual confirmation of circuit isolation. Maintenance crews can verify the de-energized state directly, enhancing safety protocols and building confidence during line work.
Designed for Robustness and Longevity: Built with high-quality, weather-resistant materials, the GW1-10(DDW) ensures exceptional durability in various outdoor conditions. Its robust mechanical design minimizes wear and tear, contributing to a long operational lifespan and reducing the need for frequent maintenance.
Weisho Electric: Dedicated to Power Distribution Safety and Innovation
As a leading enterprise with 12 years of profound expertise in high-voltage electrical equipment, Weisho Electric Co., Ltd. is unwaveringly committed to delivering innovative, robust, and high-performance power solutions to clients worldwide. The GW1-10(DDW)-630/1250 Split-type/Combined-type Outdoor High Voltage Isolator Switch exemplifies our dedication to "quality first, practicality as foundation."
We rigorously adhere to the ISO9001 quality management system, meticulously selecting raw materials, implementing lean manufacturing processes, and conducting every stringent test before factory shipment. This ensures that every Weisho Electric product exhibits exceptional weather resistance and ultimate reliability. Choosing Weisho Electric means partnering with a trusted leader in outdoor power distribution, ready to advance with you.
Frequently Asked Questions (FAQ): What You Might Want to Know About Isolator Switches
Q: What is the primary function of the GW1-10(DDW) Isolator Switch?A: The main function of the GW1-10(DDW) Isolator switch is to provide a visible and reliable isolation point in a high-voltage circuit. This allows for the safe de-energization of a line or piece of equipment for maintenance, repair, or planned outages. It is not designed to interrupt fault currents.
Q: Can the "DDW" model interrupt load currents?A: The "DDW" designation often implies that this specific Isolator switch has an enhanced capability to interrupt small load currents, such as transformer magnetizing currents or line charging currents, or to be operated under very light load conditions. However, it is crucial to understand that it is not a circuit breaker and should generally not be used to interrupt significant load or fault currents. Always consult the product manual for specific operating parameters.
Q: What are the advantages of Split-type vs. Combined-type configurations?A: The Split-type configuration (individual poles) offers greater flexibility for installation in challenging spaces or for adapting to existing structures, and can simplify transportation. The Combined-type (all poles on a single frame) provides a more compact and unified installation, often preferred where space permits and simplified mounting is desired.
Q: How does the GW1-10(DDW) ensure safety during operation?A: The primary safety feature is the visible air gap created when the switch is opened, providing clear confirmation of isolation. Operators must use an insulated hot stick for manual operation, ensuring a safe distance from energized components. The robust design also minimizes the risk of accidental closures.
Q: What kind of maintenance does the GW1-10(DDW) require?A: Given its robust outdoor design and simpler mechanism compared to circuit breakers, the GW1-10(DDW) typically requires minimal maintenance. This includes periodic visual inspections to check for physical damage, insulation integrity, and proper contact alignment. Cleaning of insulators may be necessary in highly polluted environments.
Contact Us Now to Empower a Safe and Efficient Distribution Future!
Are you interested in the exceptional performance and reliable isolation provided by the GW1-10(DDW)-630/1250 Split-type/Combined-type Outdoor High Voltage Isolator Switch? Whether you require detailed product information, customized technical consultation, or precise project quotations, the professional team at Weisho Electric Co., Ltd. is ready to provide you with dedicated, one-on-one service.
