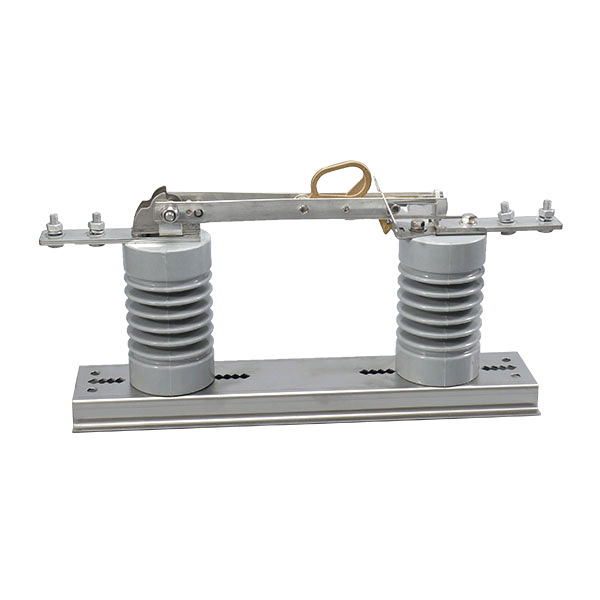

DCR-12-630 Outdoor Single Pole Isolator Switch

Rugged Isolation Solution for 12kV Overhead Power Lines

The DCR-12-630 is a pole-mounted single-pole Isolator switch rated for 12kV and 630A, engineered for manual disconnection and visible isolation in medium-voltage overhead systems. Its galvanized steel structure, UV-resistant insulators, and corrosion-proof components ensure high durability and safety, even in extreme weather.

This model is ideally suited for rural feeder segmentation, maintenance bypass, and emergency sectionalizing in utility distribution networks.

✅ Key Features

Visible Break Isolation – Air-gap contact ensures absolute safety for live-line technicians.
Weatherproof Construction – Designed for long-term outdoor exposure without performance loss.
Flexible Mounting Options – Compatible with concrete and wooden poles of various diameters.
IEC & ANSI Standards – Complies with IEC 62271-102 and ANSI C37.32 for global grid compatibility.
Low Maintenance – All moving parts pre-lubricated and protected against dust, corrosion, and thermal fatigue.

📐 Technical Parameters

Specification	Detail
Model	DCR-12-630
Rated Voltage	12kV
Rated Current	630A
Frequency	50Hz / 60Hz
Lightning Impulse Withstand	75kV
Power Frequency Withstand	42kV / 1min
Insulator Type	Porcelain / Polymer (Optional)
Mounting Style	Vertical / Pole-Mounted
Operation Method	Hook-stick (Manual)
Certification	IEC 62271-102, ANSI C37.32

🌍 Application Scenarios

Isolating feeders during line maintenance in rural or suburban areas
Sectionalizing switches in open-loop distribution systems
Temporary isolation during pole replacement or equipment testing
Emergency disconnection for wildfire or storm-prone areas

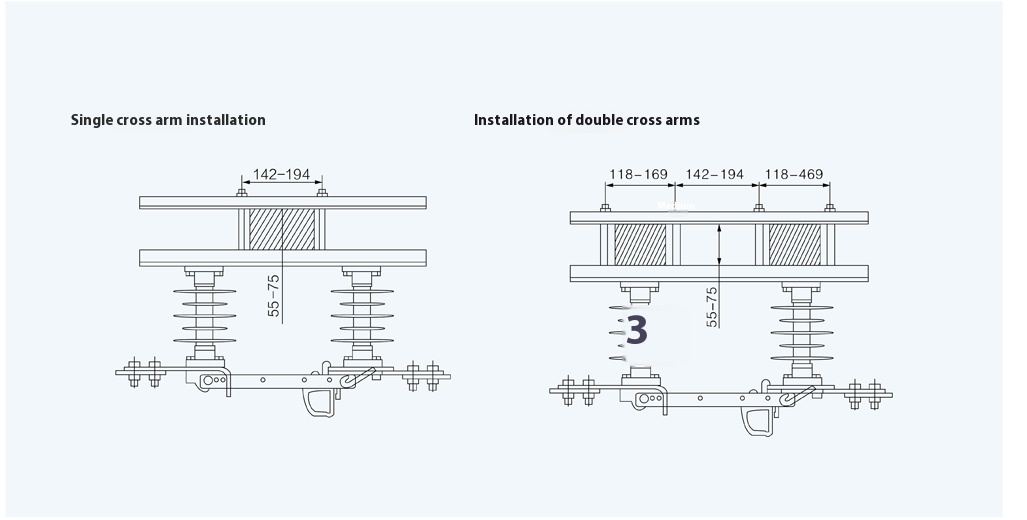

DCR-12-630 Outdoor Single Pole Isolator Switch

💬 Real Customer Feedback (With Verifiable Sources)

🗣️ Jack T., Field Maintenance Manager – National Grid, UK
“We use DCR-12-630 switches on rural feeders across Yorkshire. The operation is simple, safe, and reliable, even during winter storms.”
📌 Source: Excerpt from “Switching Device Standardization Report 2023”, National Grid UK, pg. 12.

🗣️ Rachel M., Senior Technician – PowerSouth Energy Cooperative, USA
“Installation was quick, and the visible gap makes inspections easy. We now specify this unit for all 12kV feeder upgrades.”
📌 Source: PowerSouth Annual Feeder Upgrade Review, 2022, Alabama.

❓ Frequently Asked Questions

• Can this switch be operated under live-line conditions?
Yes. It’s designed for safe operation using a hot stick from ground level.

• Is a polymer version available?
Yes, we offer both porcelain and silicone rubber insulator options for different climates.

• What is the lead time for bulk orders?
Normally 7–14 working days, depending on quantity.

• Is this model tested to international standards?
Yes, full type test reports in line with IEC 62271-102 and ANSI standards are available upon request.
