GN30-12D/630A Rotary Indoor HV Isolator Switch 12kV Compact Design

In power distribution systems, particularly within high-voltage switchgear, Isolator switches are critical components for ensuring the safe operation of equipment and the safety of maintenance personnel. They are used to isolate live equipment, creating a visible break point to guarantee safety during inspection and repair work. Weisho Electric, with its 12 years of specialized experience in high-voltage switchgear, proudly introduces the innovative GN30-12D/630A Rotary Type Indoor High Voltage Isolator Switch.

The GN30-12D/630A isolator switch is a derivative of the GN30-12 type, specifically incorporating an earthing switch (D-type), meeting the diverse needs of various power systems. Its design is compact, occupies minimal space, offers strong insulation capabilities, and is easy to install and adjust. This product is suitable for indoor power systems with a rated voltage of 10kV AC 50Hz and below, serving to make or break circuits when energized but without load. It can be used independently or in conjunction with the earthing switch for high-voltage switchgear applications, providing reliable electrical isolation and earthing protection, making it an ideal choice for ensuring the safe operation of power systems.

Core Advantages & Features: Compact, Safe, Reliable

Weisho Electric's GN30-12D/630A Rotary Type Indoor High Voltage Isolator Switch, with its exquisite craftsmanship and outstanding design, brings multiple core advantages to your high-voltage power distribution system:

1. Compact Rotary Blade Design for Efficient Space Utilization:

Technical Detail: Features a unique rotary blade structure, enabling switching operations through rotating contacts. Compared to traditional push-pull isolator switches, its mechanism is more compact, significantly reducing the space occupied within switchgear.
Key Benefit: Greatly optimizes the internal layout of switchgear, making it especially suitable for space-constrained compact switchgear (such as HXGN, XGN series), enhancing the overall space utilization of power distribution rooms.

2. Highly Reliable Electrical Isolation and Earthing Protection:

Technical Detail: As a D-type product, the GN30-12D/630A integrates a reliable earthing switch function. In the open position, it creates a visible breaking point, ensuring complete isolation of the line from the power source. The earthing switch provides a safe earthing circuit, preventing accidental energization.
Key Benefit: Provides dual safety assurance, eliminating the risks of live working, and ensuring the personal safety of maintenance personnel and the safety of downstream equipment during overhaul.

3. Excellent Dynamic and Thermal Stability, Withstanding Short-Circuit Impact:

Technical Detail: The GN30-12D/630A model has a rated thermal stable current of 20kA/4s and a rated dynamic stable current of up to 50kA. This indicates its ability to withstand massive short-circuit currents and electromagnetic forces during a system short-circuit fault without damage, ensuring the integrity of the switchgear.
Key Benefit: Even in extreme short-circuit fault conditions on the power grid, it maintains structural stability and electrical connection integrity, effectively preventing fault expansion and ensuring the reliability of the power distribution system.

4. High Insulation Level and Reliable Dielectric Performance:

Technical Detail: The rated voltage is 12kV, the lightning impulse withstand voltage (phase-to-phase, phase-to-earth) is up to 75kV, and the 1-minute power frequency withstand voltage (phase-to-phase, phase-to-earth, across isolating distance) is 42kV. The contact system uses highly conductive materials and a reliable contact pressure design to ensure low contact resistance and low temperature rise.
Key Benefit: Guarantees long-term insulation reliability under normal operation and overvoltage conditions, reducing accidents caused by insulation failure and extending equipment lifespan.

5. Convenient Operation, Efficient Maintenance:

Advantage: The mechanism is designed reasonably, requiring minimal operating torque, and supports both manual and motorized operation. Installation, adjustment, and maintenance are straightforward, significantly reducing power outage durations.
Key Benefit: Improves operation and maintenance efficiency, lowers the difficulty and risks associated with high-voltage switchgear maintenance, saving considerable human and material resources.

Applications: Critical Isolation and Earthing for Power Distribution Networks

Weisho Electric's GN30-12D/630A Rotary Type Indoor High Voltage Isolator Switch is widely used in various indoor high-voltage distribution units with voltage levels of 12kV and below, making it an ideal choice for the following scenarios:

Switchgear and Ring Main Units: Used as main circuit or branch circuit isolation, coordinating with circuit breakers for maintenance isolation.
Power Distribution Rooms: For safe isolation and earthing of lines or equipment before maintenance.
Industrial Enterprise Distribution Systems: Provides safe isolation for large equipment such as high-voltage motors and transformers.
Commercial Buildings and Infrastructure: Ensures the reliable operation and safe maintenance of power supply systems.
High-Altitude Areas: Normal operating conditions include altitudes not exceeding 1000m.
Locations Free from Severe Dust, Corrosive Chemicals, and Explosive Substances.
Locations Free from Frequent and Violent Vibrations.

Technical Specifications & Standard Compliance

Weisho Electric's GN30-12D/630A Rotary Type Indoor High Voltage Isolator Switch strictly adheres to relevant international and domestic standards, ensuring its excellent performance and reliability.

Environmental Conditions

No.	Item	Value
1	Altitude (m)	Not exceeding 1000m
2	Ambient Air Temperature (°C)	Upper limit +40℃; Lower limit -10℃
3	Relative Humidity	Daily average not exceeding 95%; Monthly average not exceeding 90%
4	Seismic Intensity	Not exceeding 8 degrees
5	Location	Free from severe dust, corrosive chemicals, and explosive substances
6	Vibration	Free from frequent and violent vibrations

Main Electrical & Mechanical Parameters (GN30-12D/630A)

Parameter	Value/Description
General Parameters

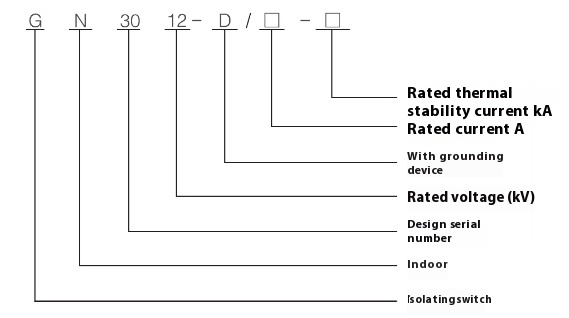

Product Model Specification	GN30-12D/630A
Rated Voltage	12kV
Rated Current	630A
Rated Frequency	50Hz
Current Parameters
Rated Short-Time Withstand Current (KA)	20KA
Rated Short-Time Withstand Duration (S)	4S
Rated Peak Withstand Current (KA)	50KA
Insulation Performance
Lightning Impulse Withstand Voltage (KV) (Phase-to-Phase, Phase-to-Earth)	75KV
1min Power Frequency Withstand Voltage (KV) (Phase-to-Phase, Phase-to-Earth, Across Isolating Distance)	42KV
Mechanical Performance
Mechanical Endurance	≥ 2000 operations
Outline & Installation Dimensions	Please refer to the detailed dimension drawings in the product images.

GN30-12D/630A Rotary Indoor HV Isolator Switch 12kV Compact Design

Quality Assurance & Authoritative Certifications

At Weisho Electric, our commitment to product quality is our cornerstone. The GN30-12D/630A Rotary Type Indoor High Voltage Isolator Switch adheres strictly to international quality management systems and industry standards, from design and raw material procurement to precision manufacturing and factory testing.

ISO 9001 Quality Management System Certification: Ensures that every stage, from design and production to delivery, meets the highest quality standards.
IEC 62271-102 Standard Compliance: Our product design and testing strictly conform to the latest International Electrotechnical Commission standards for AC high-voltage disconnectors and earthing switches.
GB/T 11022 and GB/T 1985 Standard Compliance: Product performance meets the requirements of China's national standards for "Common Specifications for High-Voltage Switchgear and Controlgear Standards" and "AC High-Voltage Disconnectors and Earthing Switches".

Every Weisho Electric GN30-12D/630A isolator switch undergoes rigorous mechanical endurance tests, temperature rise tests, short-time withstand current tests, lightning impulse withstand voltage tests, and power frequency withstand voltage tests before leaving the factory, ensuring reliable and safe isolation and earthing protection under all operating conditions. We possess advanced production lines and high-voltage testing laboratories, guaranteeing excellent quality from core components to the final product.

Installation & Maintenance: Simplified Deployment, Ensuring Continuous Operation

Weisho Electric's GN30-12D/630A Rotary Type Indoor High Voltage Isolator Switch is compactly designed, easy to install, and can be seamlessly integrated into various types of switchgear. Its robust and durable construction, coupled with high-quality materials, significantly reduces the frequency of routine maintenance. We provide detailed installation manuals and professional on-site/remote technical support services to ensure the product operates safely and efficiently, offering long-term, reliable service.

Customer Testimonials: Professional, Trustworthy

Hear what our global customers have to say about Weisho Electric's GN30-12D/630A Rotary Type Indoor High Voltage Isolator Switch:

"For a new substation project in Saudi Arabia, we procured Weisho Electric's GN30-12D/630A isolator switches. This product is not only compact, perfectly fitting our modular switchgear, but its operational reliability and built-in earthing function have also significantly enhanced the safety of our O&M personnel."

— Mohammed H. Ahmed, Project Manager, Saudi Power Construction Company

"During an industrial park upgrade in Poland, we chose Weisho Electric's GN30-12D/630A. It performed exceptionally well under high load, with excellent thermal stability. We particularly appreciate its ease of installation, which significantly shortened our construction schedule."

— Jan Kowalski, Technical Director, Polish Industrial Electrical Integrator

"Weisho Electric's GN30-12D/630A isolator switch played a crucial role in our commercial complex power distribution project in Mexico. The product's quality is reliable, meeting all technical requirements. Its compact design made it possible to achieve efficient isolation within a limited distribution space."

— Sofía L. García, Head of Electrical Engineering Consulting, Mexican Power Engineering Firm

Expert Insight: Content Authored by Industry Professional

The detailed content on this page regarding the GN30-12D/630A Rotary Type Indoor High Voltage Isolator Switch is proudly presented by Engineer Thor from Weisho Electric.

Mr. Thor is a key technical backbone at Weisho Electric Co., Ltd., a prominent Chinese foreign trade manufacturer dedicated to serving clients across Europe, the Americas, the Middle East, Belt and Road Initiative countries, and globally. With 12 years of invaluable industry experience, he specializes in the R&D, design, testing, and application of high-voltage isolator switches, switchgear, and other power protection equipment, possessing a profound understanding and practical expertise in product technology, industry standards, and customer requirements.

Should you have any inquiries about our GN30-12D/630A Rotary Type Indoor High Voltage Isolator Switch or require customized power protection solutions, please feel free to contact Thor:

Phone: +86-577-62788197
WhatsApp: +86 159 5777 0984
Email: [email protected]

Contact Weisho Electric Today to Equip Your Switchgear with Reliable Isolation!

Contact our expert team for a personalized consultation, detailed technical solutions, or a customized quote. Let's work together to build safer, more efficient, and more reliable power distribution systems for your project!
