GN19-12/1250 Indoor Horizontal Isolator Switch

🧩 Compact Form, Trusted Safety – For Efficient Indoor Isolation in MV Networks

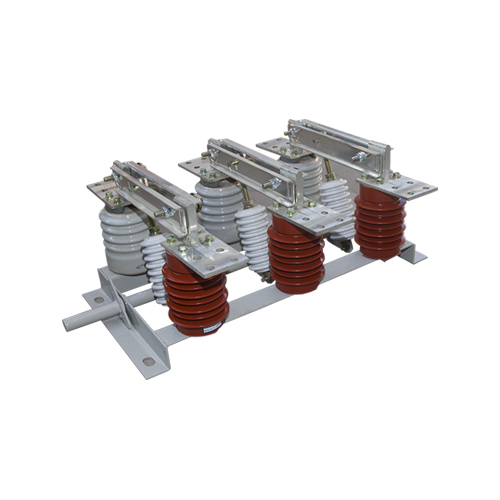

The GN19-12/1250 horizontal-mounted indoor  isolator switch is specifically designed for 12kV indoor medium voltage switchgear systems where space-saving installation and reliable mechanical isolation are required. It features a robust horizontal knife-blade structure, suitable for manual or motorized operation in industrial and utility substations.

This unit complies with GB/T 1985 and IEC 62271-102, ensuring secure disconnection during maintenance, inspection, or emergency isolation.

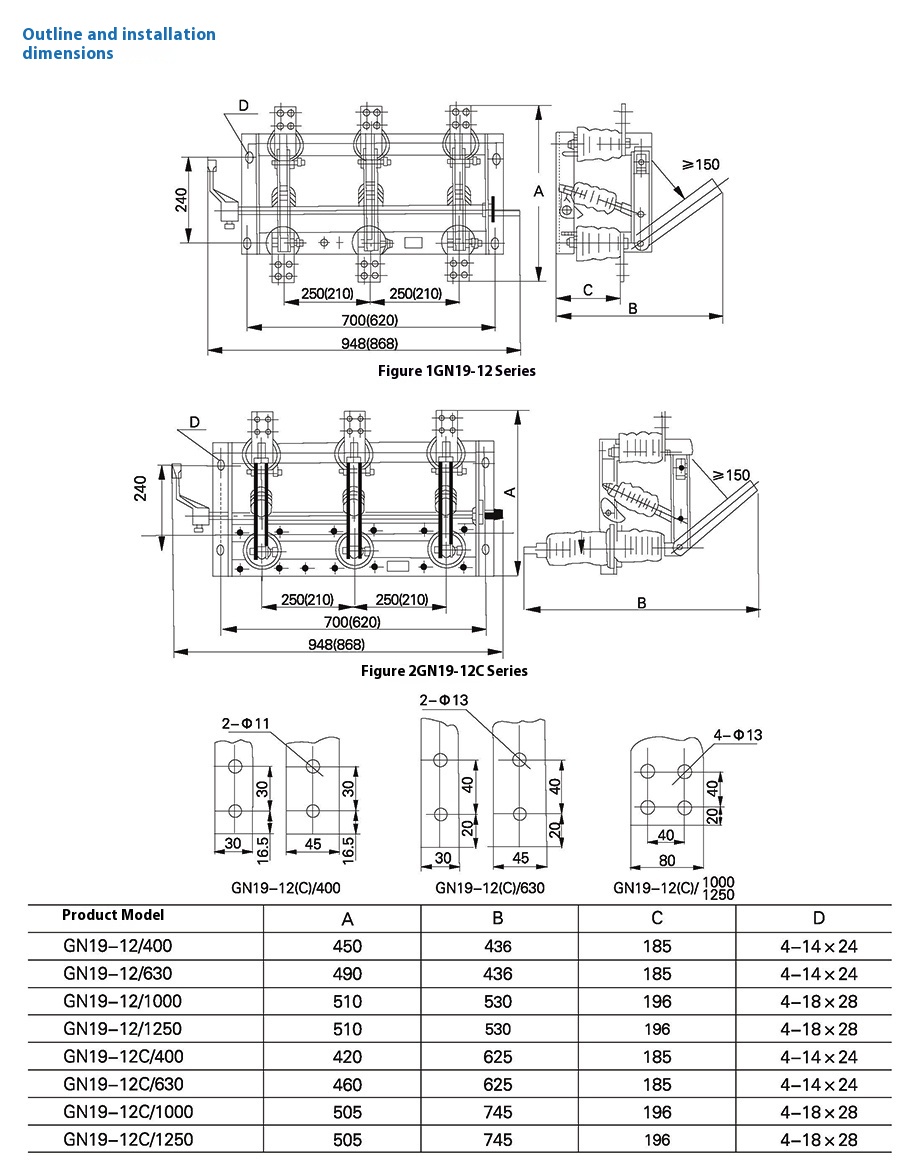

📊 Technical Specifications

Parameter	Specification
Model	GN19-12/1250
Rated Voltage	12 kV
Rated Current	1250 A
Rated Short-time Withstand Current (4s)	31.5 kA
Peak Withstand Current	80 kA
Insulation Level	42 kV (1 min), 75 kV (impulse)
Operating Mechanism	Manual / Electric Optional
Mounting	Horizontal Fixed
Phases	3-pole
Conformity Standard	IEC 62271-102, GB/T 1985

✅ Key Features

• Horizontal Blade Design: Compact footprint for cabinet-mounted applications.

• Double Break Contacts: Enhances arc quenching and visible break.

• Silver-Plated Contacts: Corrosion-resistant, low contact resistance.

• Modular Assembly: Easy replacement and servicing of contact parts.

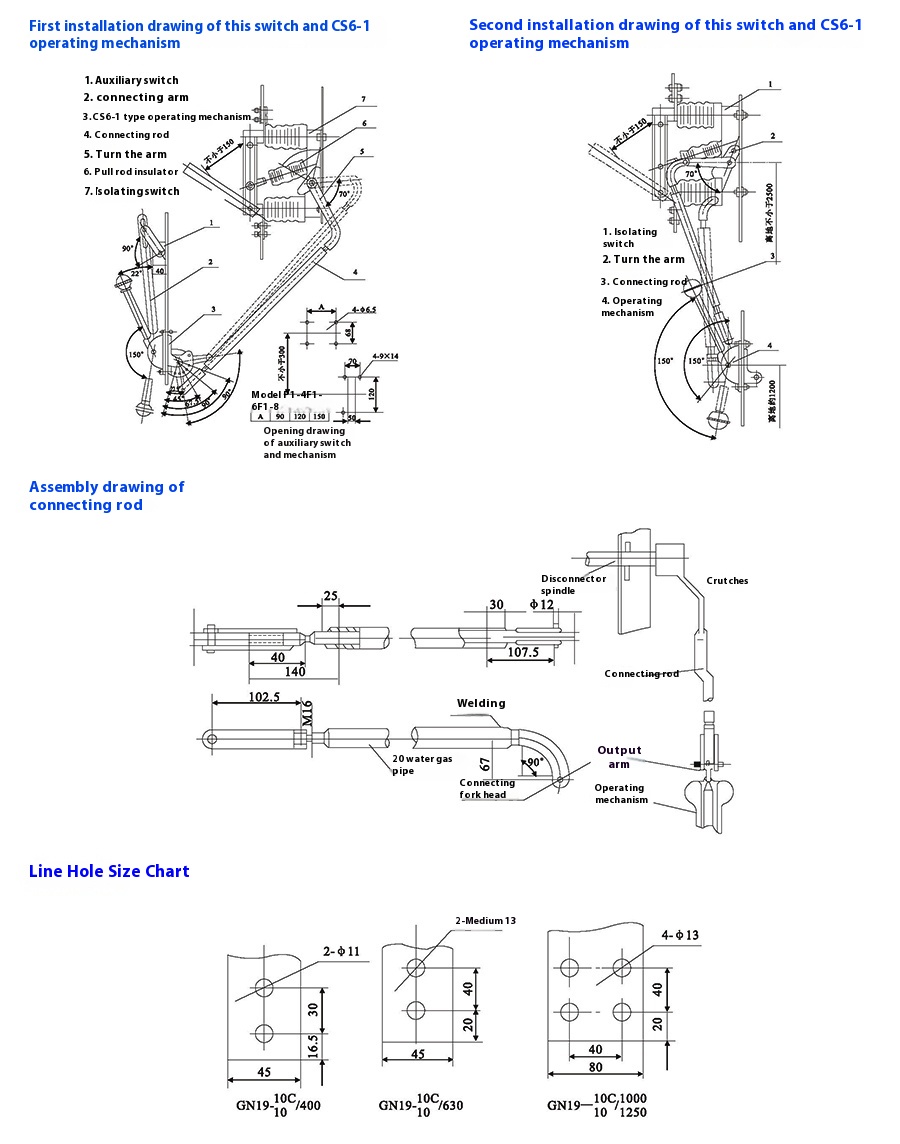

• Mechanism Options: Compatible with CS6 manual handle or electric actuator.
