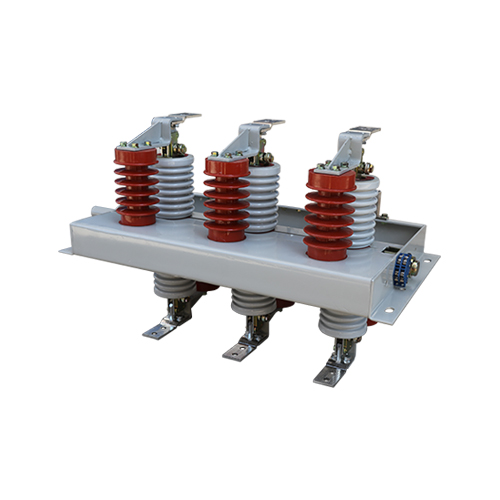

GN30-12/D Indoor High Voltage Isolator Switch with Insulators
Core Overview: How to Achieve Efficient, Reliable Electrical Isolation in Limited Spaces?
In modern industrial and civil power systems, especially in increasingly valuable indoor substations and distribution rooms, engineers face a common challenge. They need switchgear that provides reliable electrical isolation while optimizing space utilization to the absolute maximum. Weisho Electric's GN30-12 Indoor High Voltage Isolator Switch was specifically developed to address this critical need.
It is an innovative rotary-type high-voltage isolator switch. This product is meticulously crafted for indoor power systems with a rated voltage of 12kV and below, AC 50Hz.
The core value of the GN30-12 lies in its ability to safely connect or disconnect circuits under energized, no-load conditions, all within a compact footprint. Whether integrated into mainstream high-voltage switchgear like KYN28A-12 or HXGN, or used as a standalone isolation unit, the GN30-12 delivers. Its unique design and stable performance ensure your distribution system not only complies with GB1985-89 and IEC international standards, but also offers unprecedented convenience and peace of mind during daily operation and maintenance.
Product Features & Core Advantages: Small Size, Great Intelligence – Born for Complex Indoor Environments
Every detail of the GN30-12 Isolator switch embodies Weisho Electric's deep understanding and innovative response to the specific needs of indoor power distribution systems.
Revolutionary Rotary Contact Knife Design for Ultimate Space Saving: Unlike traditional Isolator switches with translational or vertical opening/closing, the GN30-12 features a unique rotary contact knife structure. This design minimizes the radial space occupied during operation.
The ingenious vertical arrangement of phase contacts further compresses the overall volume. For indoor switchgear and distribution rooms where space is at a premium, this translates into more flexible layouts and higher integration density.
Unparalleled Clarity of Electrical Isolation: In energized, no-load conditions, the GN30-12 instantaneously creates a clear and visible air insulation gap. This intuitive physical isolation allows maintenance personnel to confirm at a glance that the circuit is completely disconnected.
This significantly enhances the safety of inspection work, far surpassing some enclosed or less visually intuitive isolation solutions on the market.
Long-Lasting Reliability, Durable Operational Assurance: Weisho Electric understands the stringent requirements for long-term stability in indoor equipment. The GN30-12 has demonstrated exceptional performance in rigorous mechanical endurance tests.
Its design life meets and exceeds 2000 operation cycles. This is attributed to our selection of high-quality conductive materials, wear-resistant components, and precise assembly processes, ensuring consistent performance even under frequent operation.
Flexible Grounding Protection Solution (GN30-12D Model): For scenarios requiring a higher level of maintenance safety, the GN30-12D model offers an integrated grounding knife function. After the main circuit is opened, operating the grounding knife reliably grounds the line.
This effectively eliminates induced charges and accidental electric shock risks, providing dual safety protection for maintenance personnel. This is a key advantage that many basic Isolator switches lack.
Installation and Commissioning, Time and Effort Saving: The GN30-12's standardized modular design simplifies the installation process, significantly reducing on-site construction time. Its user-friendly structural design also makes future inspections and maintenance remarkably easy.
This reduces the need for complex tools or extended power outages, thereby lowering operational costs.
Optimized for Indoor Environments, Stable and Reliable: Compared to outdoor equipment that must contend with wind and rain erosion, the GN30-12 is specifically optimized for indoor environmental characteristics. It operates stably at altitudes below 1000m and temperatures between -10°C and +40°C.
The product design also accounts for typical humidity and seismic conditions, ensuring its long-term reliability in various indoor substations, distribution rooms, and factory switchhouses.
Working Principle: A Visible Break, An Unwavering Commitment to Safety
The core working principle of the GN30-12 Indoor Rotary High Voltage Isolator Switch revolves around its unique rotational operation. When the operating mechanism (either the manual CS6-1 or an optional motorized mechanism) is activated, the switch's internal rotary contact knife rotates around its axis. This action achieves the separation or closing of the fixed contacts.
When the switch is in the "open" position, you will clearly see the wide air gap formed between the rotating knife and the fixed contacts. This physically visible break is the GN30-12's most intuitive safety feature.
It ensures that the high-voltage circuit is completely isolated when energized but under no load. This mechanism is crucial for performing equipment inspections, line modifications, or fault isolation, providing operators with maximum safety confidence.

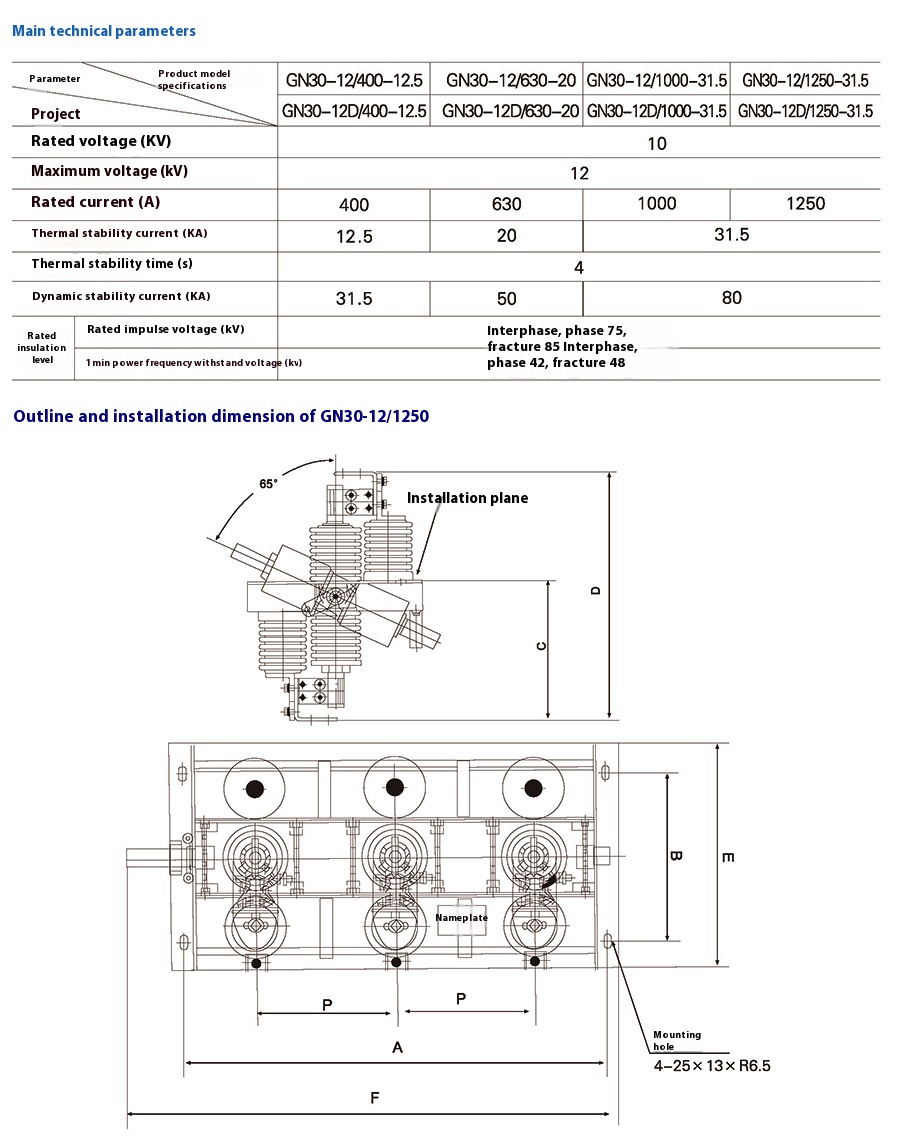

Detailed Technical Specifications: Precisely Matching Your System Requirements
Typical Application Scenarios & Global Case Studies: Deeply Rooted in Indoor Power Distribution, Earning Global Trust
The GN30-12 Indoor High Voltage Isolator Switch, with its outstanding performance and high adaptability, has become a preferred device in various indoor power projects worldwide. These case studies not only illustrate the product's versatility but also demonstrate how it precisely solves specific challenges for clients across different industries.
Asia Pacific Region's Modern Data Center Infrastructure
Client: A leading cloud service provider in Asia.
Project Challenge: This data center demanded extremely high reliability from its power system. Its internal space planning was exceptionally compact, requiring high-voltage power distribution equipment to be both stable and reliable, while also maximizing space savings for future expansion and maintenance.
Weisho Solution: Weisho Electric supplied the GN30-12 Isolator switch, whose unique rotary contact knife design perfectly met the data center's need for compact switchgear. The product's stable insulation performance and optional grounding knife function provided the highest level of power isolation safety for the data center.
Client Feedback: "The GN30-12 performed exceptionally well in our data center project. Its compact design allowed us to install more equipment in limited space, and its reliable isolation capability gave us great confidence in power continuity." — Mr. Li, Project Director.
European High-End Medical Equipment Manufacturing Plant Distribution Center
Client: A renowned European medical technology company.
Project Challenge: The factory's production lines had stringent requirements for power quality and operational stability, demanding minimal downtime. The distribution center upgrade required indoor isolation equipment that was easy to integrate, safe to operate, and simple to maintain.
Weisho Solution: We recommended the GN30-12D model with a grounding knife for this factory, assisting with its seamless integration into existing HXGN high-voltage switchgear. This configuration significantly enhanced the safety and efficiency of the factory's power maintenance, reducing downtime for inspections.
Client Feedback: "The GN30-12D's grounding function has brought immense convenience and safety assurance to our daily maintenance work. Weisho Electric's solution is not only technologically advanced but also highly efficient in service." — Ms. Anna Schmidt, Factory Electrical Supervisor.
North American Urban Rail Transit Substation
Client: A major metropolitan public transportation authority in North America.
Project Challenge: Urban rail transit demands extremely high power supply reliability, and substations must operate safely within limited underground spaces. Equipment needed to withstand frequent operations and meet high standards for electrical and mechanical life.
Weisho Solution: The GN30-12, with its durable and highly reliable characteristics, was the ideal choice for this project. Its robust design, tested for 2000 mechanical operations, ensured long-term stable operation under the frequent dispatch and maintenance needs of a rail transit system.
Client Feedback: "We chose the GN30-12 specifically for its reliability and durability. In an area as sensitive to power continuity as rail transit, Weisho's product has demonstrated exceptional adaptability." — David Miller, Chief Electrical Engineer.
Installation, Maintenance, and Safety Assurance: Thinking More for You, Doing Better
Quick and Convenient Installation and Integration: The GN30-12's standardized modular design means it can be easily integrated into various indoor high-voltage switchgear cabinets or installed as a standalone unit. We provide detailed installation dimension drawings and wiring guides.
Additionally, based on your project's specific characteristics, Weisho Electric can offer professional on-site technical support and integration guidance, ensuring rapid equipment commissioning.
User-Friendly Design, Reduced Maintenance Costs: Weisho Electric has thoroughly considered the convenience of future maintenance in the GN30-12's design. Its open contact structure and easily accessible components make routine inspections, cleaning, and necessary adjustments simple and quick.
This significantly extends the maintenance-free cycle, saving you valuable operational expenses.
Multiple Safety Protections, Worry-Free Operation: The GN30-12 not only provides a visible electrical isolation break but can also be configured with mechanical interlocking functions, if required, with switchgear doors and circuit breakers, to prevent misoperation. Rigorous testing, compliant with international standards, ensures the equipment provides a robust and reliable safety barrier under all operating conditions. This allows your operating personnel to work with peace of mind.
Weisho Electric: Focused on High Voltage Electrics, Innovating for the Future
As a leading enterprise with 12 years of deep experience in the high-voltage electrical equipment sector, 伟秀电气 (Weisho Electric Co., Ltd.) is committed to providing innovative, reliable, and high-performance power solutions to global clients. The GN30-12 Indoor Rotary High Voltage Isolator Switch is another perfect embodiment of our dedication to exceptional quality and customer needs.
We strictly adhere to the ISO9001 quality management system, meticulously controlling every stage from the careful selection of raw materials to lean manufacturing processes and every rigorous test before ex-factory shipment. This ensures that every Weisho Electric product meets or even exceeds the highest industry standards. Choosing 伟秀电气 means selecting a strategic partner grounded in innovation and reliability, growing together with you.
Frequently Asked Questions (FAQ): Your Questions, Our Expert Answers
Q: What is the biggest advantage of the GN30-12 compared to traditional Isolator switches?A: The GN30-12's greatest advantage lies in its innovative rotary contact knife design, achieving extreme compactness. It effectively saves space in indoor power distribution rooms and switchgear cabinets.
It also provides a clear, visible electrical isolation break, enhancing operational safety and layout flexibility, which is an unparalleled advantage over traditional Isolator switches.
Q: How does the grounding knife function of the GN30-12D model enhance safety? A: The GN30-12D model integrates an additional grounding knife. After the main circuit is opened, the grounding knife can directly and reliably ground the equipment or line.
This quickly eliminates any potential residual charges or induced voltages, providing dual physical safety protection for subsequent maintenance personnel and effectively preventing accidental electric shock risks.
Q: How does this Isolator switch adapt to different switchgear models?A: The GN30-12 features standardized installation dimensions and modular design, making it highly compatible with mainstream indoor high-voltage switchgear on the market, such as KYN28A-12 and HXGN. We can also provide customized installation solutions tailored to your specific switchgear model.
Q: How does Weisho Electric ensure the reliability of the GN30-12 in long-term operation?A: Weisho Electric employs a strict ISO9001 quality management system to control raw material quality from the source. The GN30-12 undergoes FEA (Finite Element Analysis) and extensive mechanical endurance testing during its design phase.
Every product undergoes comprehensive electrical and mechanical performance testing before leaving the factory. This ensures its long-term stable operation and durability under various working conditions.
Q: If my project has specific requirements for operation methods (e.g., remote control), does the GN30-12 support them?A: The standard configuration for the GN30-12 is a CS6-1 manual operating mechanism, known for its robust structure and intuitive operation. We also understand the demand for automated control in modern power systems.
Therefore, the GN30-12 can be flexibly configured with compatible motorized operating mechanisms based on specific client requirements, enabling remote or integrated automated control.
Contact Us Now to Empower a Safe and Efficient Electrical Future!
Are you impressed by the exceptional performance and innovative design of the GN30-12 Indoor Rotary High Voltage Isolator Switch? Whether you require detailed product information, customized technical consultation, or precise project quotations, the professional team at 伟秀电气 (Weisho Electric Co., Ltd.) is ready to provide you with personalized service.
