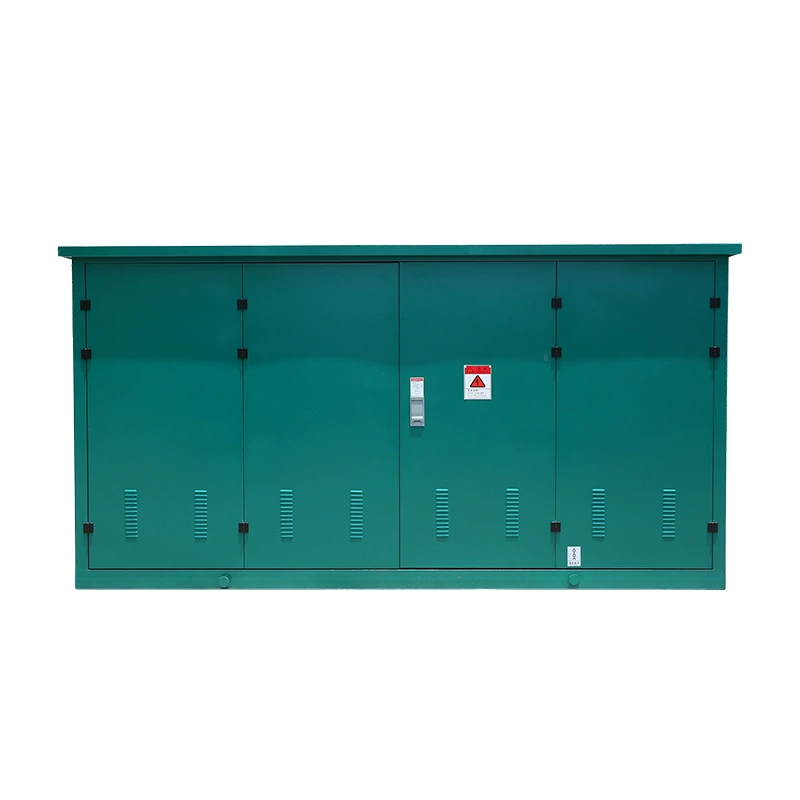

YB Preinstalled Compact Substation

High-Quality Casing, 3-Day Deployment, and Built for Your Project

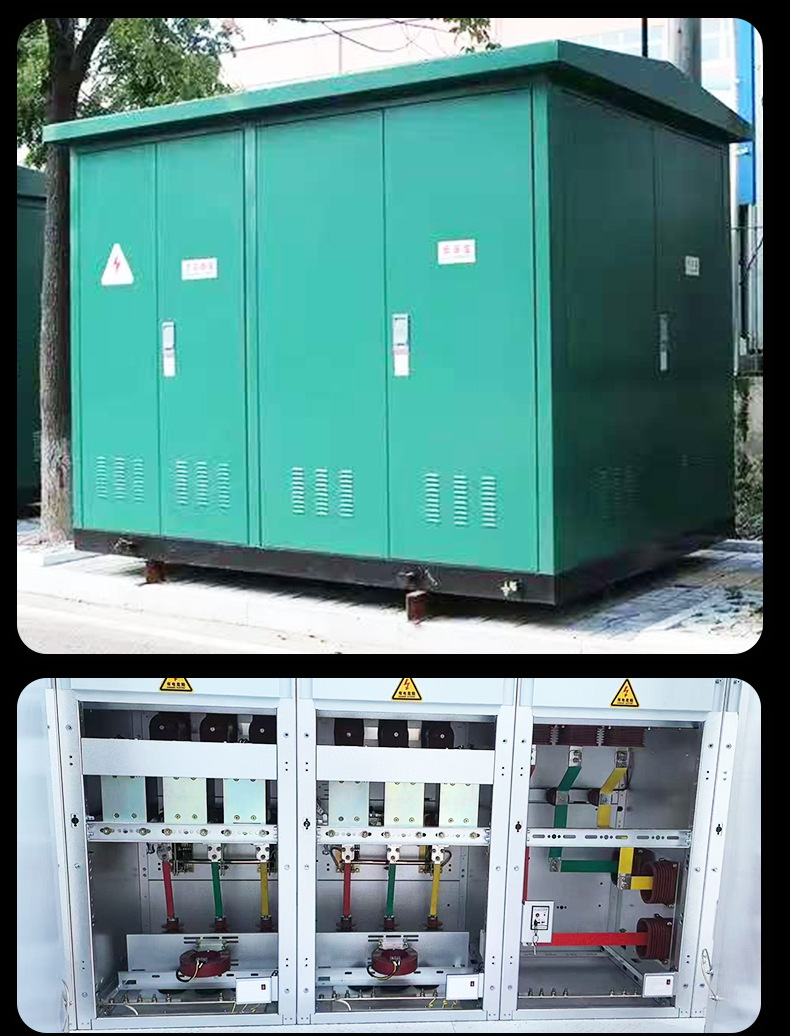

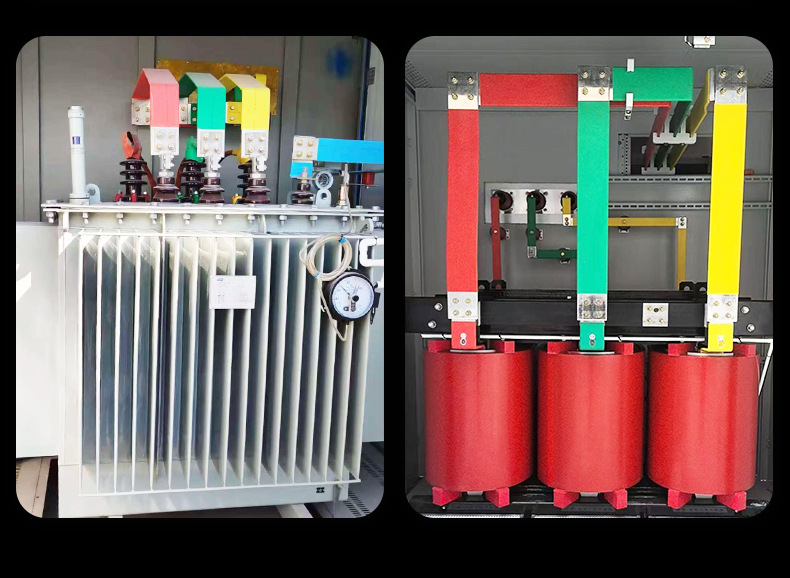

The YB Preinstalled Compact Substation is Weisho Electric’s modular, all-in-one power solution designed for rapid grid connection. It integrates the MV switchgear, power transformer, and LV distribution units into a single enclosure made with a thickened cold-rolled steel casing forged through an integrated molding process. We don't just offer a piece of equipment; we provide a pre-tested, plug-and-play system that can be installed and powered on-site within 1-3 days. With its superior craftsmanship and durable performance, our YB substation is the ideal choice for factories, schools, residential communities, and transportation stations.

Material & Manufacturing Advantages

High-Quality Casing: The casing is made from high-quality, thickened cold-rolled steel plate. Manufactured through an integrated molding process, the strengthened material ensures exceptional structural stability and durability.
Electrostatic Powder Coating: The exterior undergoes an electrostatic powder coating process, forming a durable anti-corrosion layer that is highly heat-resistant and anti-aging, withstanding severe weather and sun exposure.
Precision Craftsmanship: We strictly follow engineering blueprints for all grinding and drilling operations, ensuring every dimension is highly precise with a low defect rate for a perfect fit.
Agile Chassis Design: The chassis uses an industry-standard size with high-hardness, flexible casters. This design allows for easy and precise on-site movement and positioning, making installation simple and safe.

YB Preinstalled Compact Substation

Detailed Technical Specifications

Item	Unit	Parameters
Rated voltage	kV	12
Rated frequency	Hz	50
Main bus bar rated current	A	630/125（Max. fuse breaker rated current）
Short-time endurable rated current	kA/s	20/3（Main loop, earthed loop）
Peak endurable rated current	kA	50（Main loop, earthed loop）
Short circuit on-and-off rated current	kA	50（Main loop, earthed loop）
Load switch opening cycles	Cycles	100
Rated closed-loop opening current	kA	31.5 - 40
Rated shift current	A	630
Rated transfer current	A	1600
Mechanical life	Cycles	2000
1min line frequency voltage resistance	kV	42/48（Phase-to-phase, phase-to-ground）<br>75/85（Lightning impulse）
Secondary loop 1min line frequency voltage	kV	2
Protection grade	-	IP3X

Application Scenarios & Customization Services

Our YB preinstalled substations are widely used in:

Industrial: Factories, power distribution rooms, mines, energy sites
Public Facilities: Transportation stations, shopping malls, schools
Residential: Residential communities, office buildings
Specialized Environments: We can customize our products based on specific blueprints or individual requirements to meet demanding environmental needs.

As a source manufacturer, we offer deep customization services. You can customize the casing size, internal hole layouts, steel thickness, and color to perfectly match your project’s blueprints or unique needs.

Customer Success Case

Project: Solar Farm Grid Connection for RWE Renewables, Germany

The Challenge: The customer needed a substation that could be deployed quickly and operate reliably in a remote outdoor environment to match the pace of the solar farm’s construction.

Weisho’s Solution: We provided a customized YB preinstalled substation. The unit underwent a series of rigorous vibration and performance tests to ensure reliability during transport and on-site installation.

The Result: The RWE team reported that our solution was the fastest grid connection they had ever used. Our substation saved them weeks of on-site installation time, and its sturdy casing successfully passed all their environmental tests, ensuring the smooth progression of the entire project.

Frequently Asked Questions (FAQ)

Q: What are the core advantages of your YB substation over a traditional substation?

A: Our YB substation is a highly integrated, prefabricated solution that saves up to 70% of the footprint compared to a traditional substation. Its modular design also shortens on-site installation time from weeks to just 1-3 days.

Q: Can your product be used in harsh environments, like a -40°C cold region?

A: Yes, it can. Our standard product operates reliably from -25°C to +45°C. For extreme cold, we offer a custom version with an anti-condensation heater and HVAC system to ensure reliable operation in sub-zero temperatures.

Q: How do you ensure the product’s safety during transport?

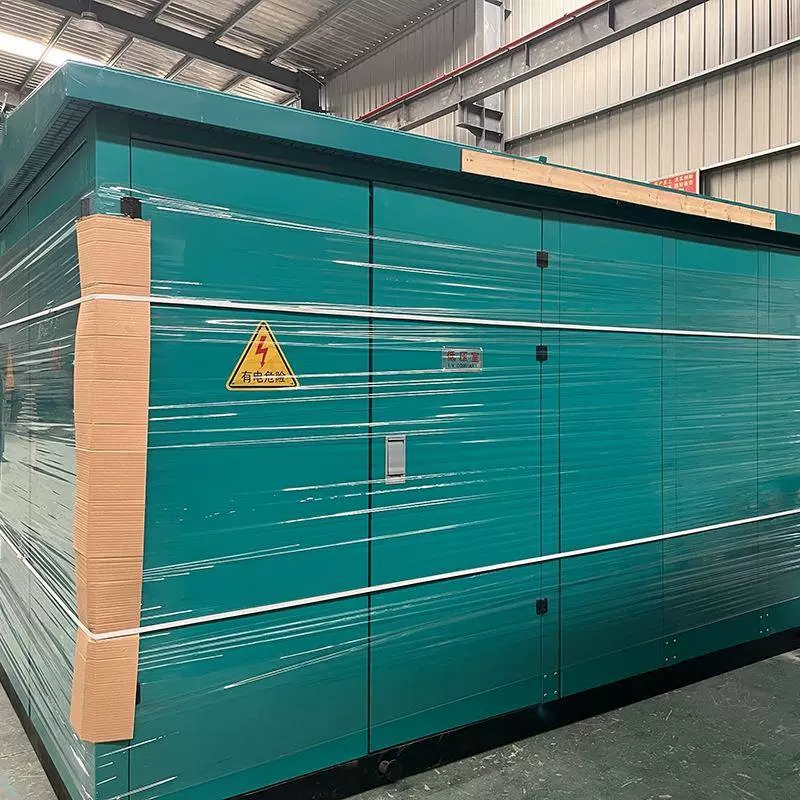

A: We use professional reinforced packaging, and the chassis is designed for stability during transport. This minimizes the risk of damage, ensuring the unit is fully functional upon arrival and reducing on-site installation failures.

Contact Us

Thor – Electrical Engineer, Weisho Electric

Expertise: Over 10 years of experience in electrical equipment design and project implementation, specializing in prefabricated substations.

Contact Information:

📞 Tel: +86-0577-62788197

📱 WhatsApp: +86 159 5777 0984

📧 Email: [email protected]

Let our YB preinstalled substations provide a fast, safe, and space-saving power solution for your next project. Contact us today to customize your layout or request a technical data sheet.
