YB6-12/0.4 Photovoltaic Box Transformer for Solar Power Stations

☀️ All-in-One PV Substation Solution for 11–33kV Solar Grids

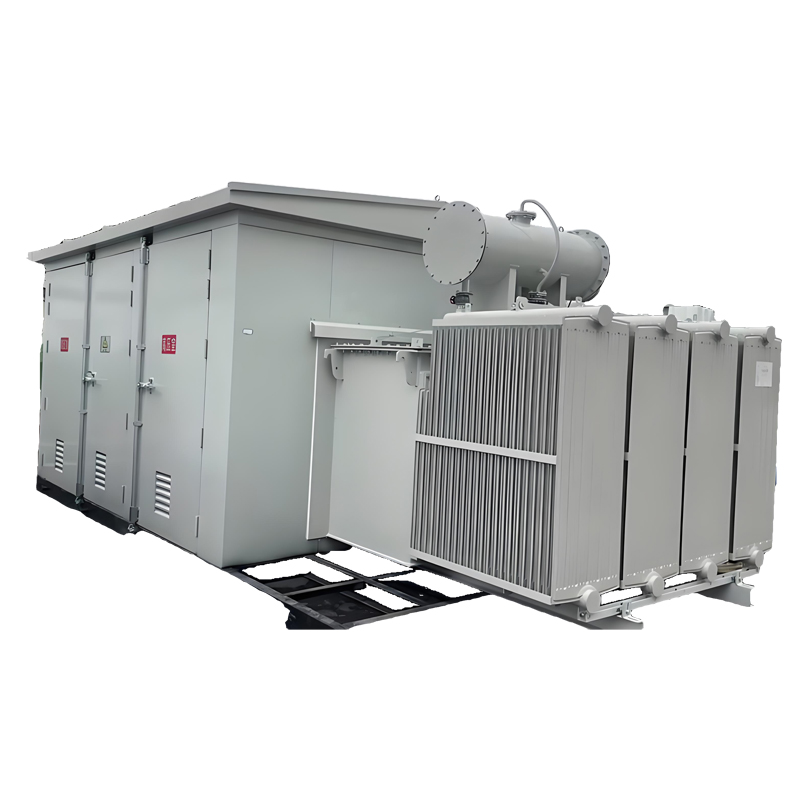

The YB6-12/0.4 Photovoltaic Box Transformer Substation is a fully integrated power conversion unit tailored for solar photovoltaic plants and hybrid energy systems. It combines a step-down oil-immersed transformer, MV switchgear, LV distribution cabinet, and optional energy storage interface in a weatherproof steel enclosure.

Optimized for outdoor use in solar farms, desert PV arrays, rooftop clusters, and containerized battery storage systems, this prefabricated substation ensures fast deployment, simplified logistics, and cost-effective grid connection.

🔧 Technical Parameters

⚡ Application Scenarios

• Solar PV Stations (Utility-scale)
  Used in 10MW+ installations for efficient grid integration.

• Industrial Rooftop PV + Storage
  Enables peak shaving and time-shifting with energy storage in factories.

• Remote Desert or Plateau Sites
  Salt-resistant, corrosion-protected enclosures support extreme conditions.

• Containerized Hybrid Systems
  Easily paired with battery cabinets or microgrid solutions.

📌 Unique Advantages

• Rapid Installation： Delivered pre-assembled for plug-and-play setup.

• Custom Layouts： Modular design fits multiple inverter brands and battery types.

• Thermal Optimization： Ventilation ducts and air-conditioning are optional.

• Smart Monitoring： Integrated sensors and RS485/Modbus support.

• Safety Assured： Equipped with grounding, arc protection, and anti-theft doors.

✅ Verified Customer Feedback

🔹 Liam T. – Project Manager, EDF Renewables UK
"Reliable substation design, especially for utility-scale PV in the Midlands."

🔹 Angela M. – Energy Solutions Lead, AES Chile
"We integrated it with BYD battery units—smooth interface and high durability."

🔹 Carlos R. – Grid Engineer, Enel Green Power Spain
"All-in-one system helped us reduce project commissioning time by 30%."

🔹 Jack H. – EPC Director, Nexamp USA
"No overheating even under full 45°C desert load. Outstanding thermal control."

🔹 Sophia K. – Senior Procurement, NTPC India
"Customized configuration matched all site needs. IEC reports were complete and valid."

❓ Frequently Asked Questions – YB6-12/0.4 PV Box Substation

• Does it support 33kV grid connection?
Yes, available up to 35kV input voltage.

• Can it be delivered with inverters or batteries?
It can be paired with an inverter skid or a battery skid; we also provide integration design.

• Is certification included?
Yes. GB/T 17467, IEC 62271-202, ISO9001, and type test reports are provided.

• Can it be used in cold or humid climates?
Optional anti-condensation heaters and dehumidifiers are available for wet zones.

• What’s the delivery time?
Typically 15–25 working days, depending on customization.
