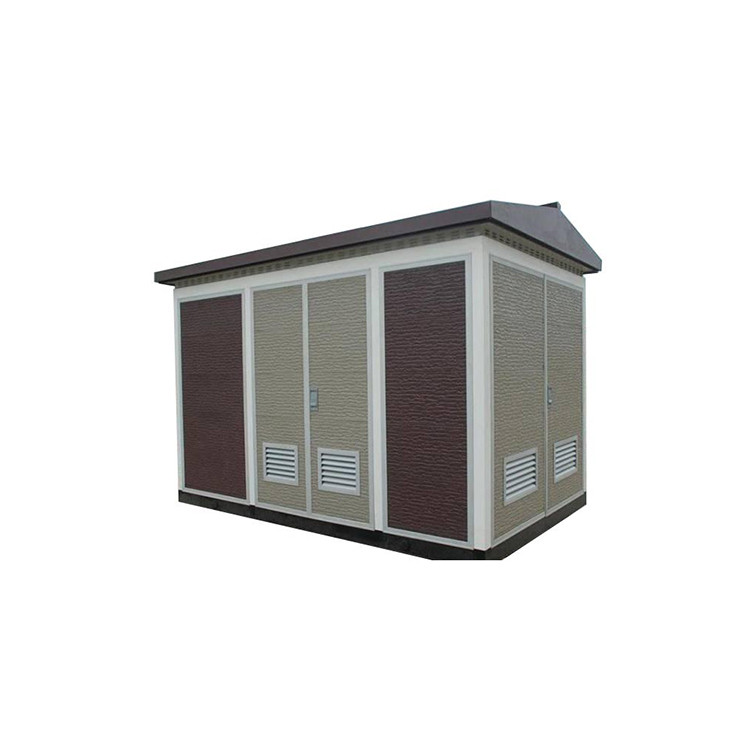

Semi buried Compact Substation

Our semi-buried prefabricated substation is a paragon of excellence, offering a remarkable combination of features. It is highly complete in functionality, boasting a compact structure that doesn't compromise on performance. Operation is both safe and reliable, instilling confidence in its users. Its sleek and attractive appearance is complemented by rapid installation and convenient construction, making it a top choice for various projects. Moreover, it is user-friendly, with a high level of reliability that stands the test of time.

Product Introduction

The design of our semi-buried prefabricated substation is truly innovative. Approximately one-third or two-thirds of the entire box transformer's height is ingeniously buried underground. This strategic design significantly reduces the above-ground height, ensuring that it doesn't obstruct the view of pedestrians or drivers. As a result, the substation seamlessly integrates with its surroundings, creating a harmonious blend between the equipment and the environment.

The underground section of the substation is built on a robust steel structure skeleton, providing exceptional strength and stability. The outer shell of the sealed bottom compartment is crafted from BFE high-strength cement short glass fiber composite material. This material not only offers excellent durability but also provides reliable protection against the elements.

When it comes to electrical configurations, our substation offers unparalleled flexibility. On the high-voltage side, users can choose between a ring network or terminals, while the low-voltage section provides the option of fixed or panel-type setups. This wide range of choices allows for tailored solutions to meet specific power distribution requirements.

In terms of production and installation, our substation shines. With a short production cycle, it can be quickly manufactured. The foundation requirements are minimal; a simple cushion layer is sufficient for installation. Once the cables are connected, the area can be directly backfilled with soil and compacted. This streamlined process not only saves on foundation materials but also significantly shortens the construction period, enhancing overall project efficiency.

Usage Conditions

1. Innovative Design: The substation features a compact and novel structure that sets it apart from traditional models. Its unique design is both functional and aesthetically pleasing.

2. Superior Build Quality: Despite its small size, it is incredibly strong and designed to last. The high-quality materials used in its construction ensure a long service life, reducing the need for frequent replacements and maintenance.

3. User-Friendly Operation: Operation is straightforward, making it accessible to a wide range of users. Its high reliability means it can be depended on to perform consistently, even in demanding conditions.

4. Environmental Harmony: The substation is highly coordinated with the environment. It is a green and healthy, environmentally friendly product, minimizing its impact on the surroundings while providing essential power services.

5. Robust Underground Structure: The lower part of the ground structure is made from reinforced concrete and special anti-seepage solidification materials. These materials are poured and formed to create a structure that is waterproof, antifreeze, anti-seepage, and corrosion-resistant, ensuring the substation's integrity in various soil and climate conditions.

6. Efficient Manufacturing: The manufacturing process is simple, which contributes to the short production cycle. This allows for quicker turnaround times and faster delivery to projects, keeping construction schedules on track.

7. Simplified Installation: By burying the non-metallic parts underground and connecting the cables, there is no need for a dedicated foundation. This simplifies the installation process, saving time and costs associated with complex foundation work.

8. Flexible Low-Voltage Options: The low-voltage section offers the flexibility of a fixed cabinet or panel-type configuration, providing diverse choices to meet different electrical distribution needs.

9. Reliable High-Voltage Components: The high-voltage part is equipped with an imported combined high-voltage ring main unit. This component is known for its high reliability, ease of operation, and excellent performance, ensuring a stable and efficient power supply at the high-voltage level.
