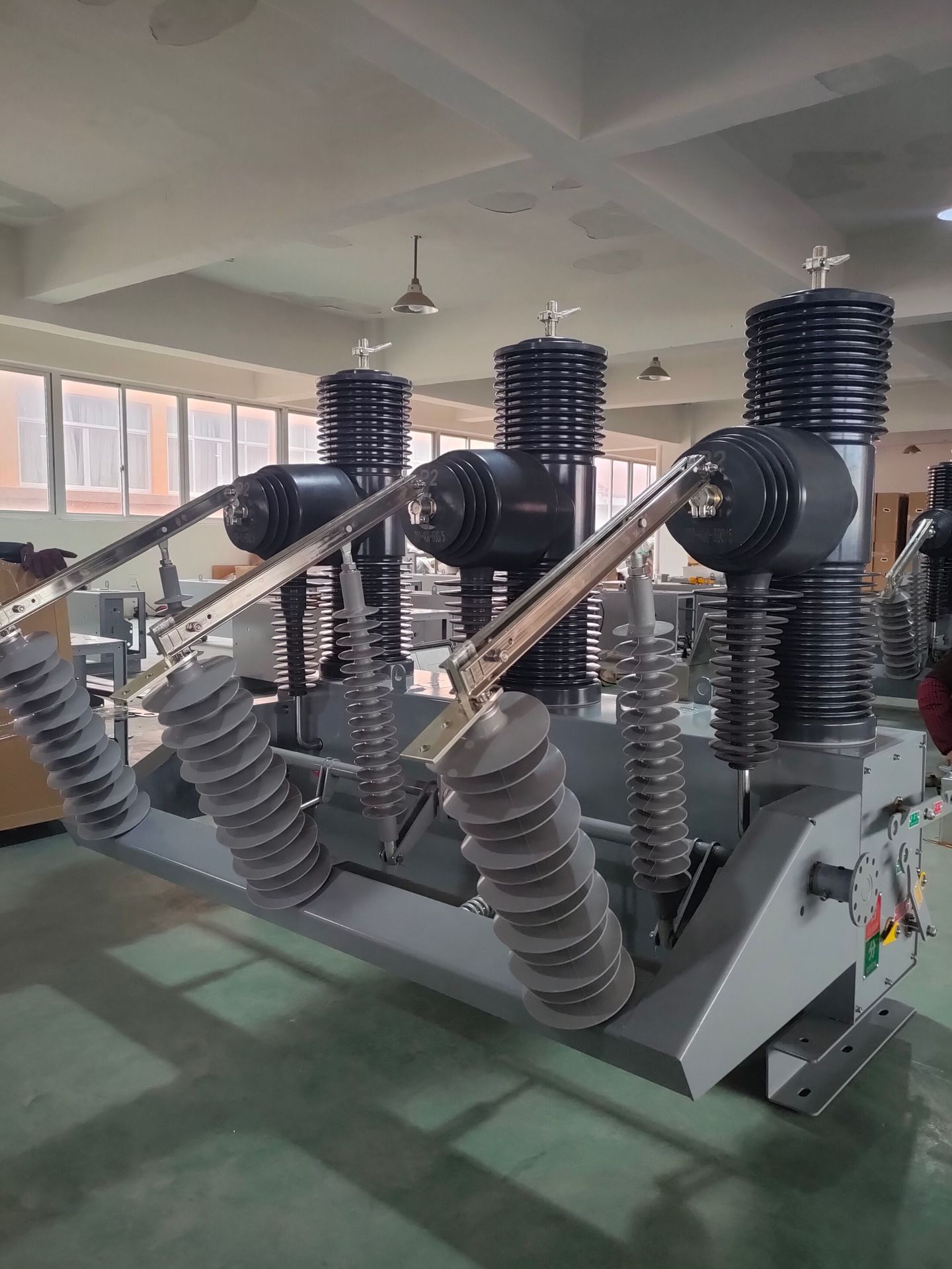

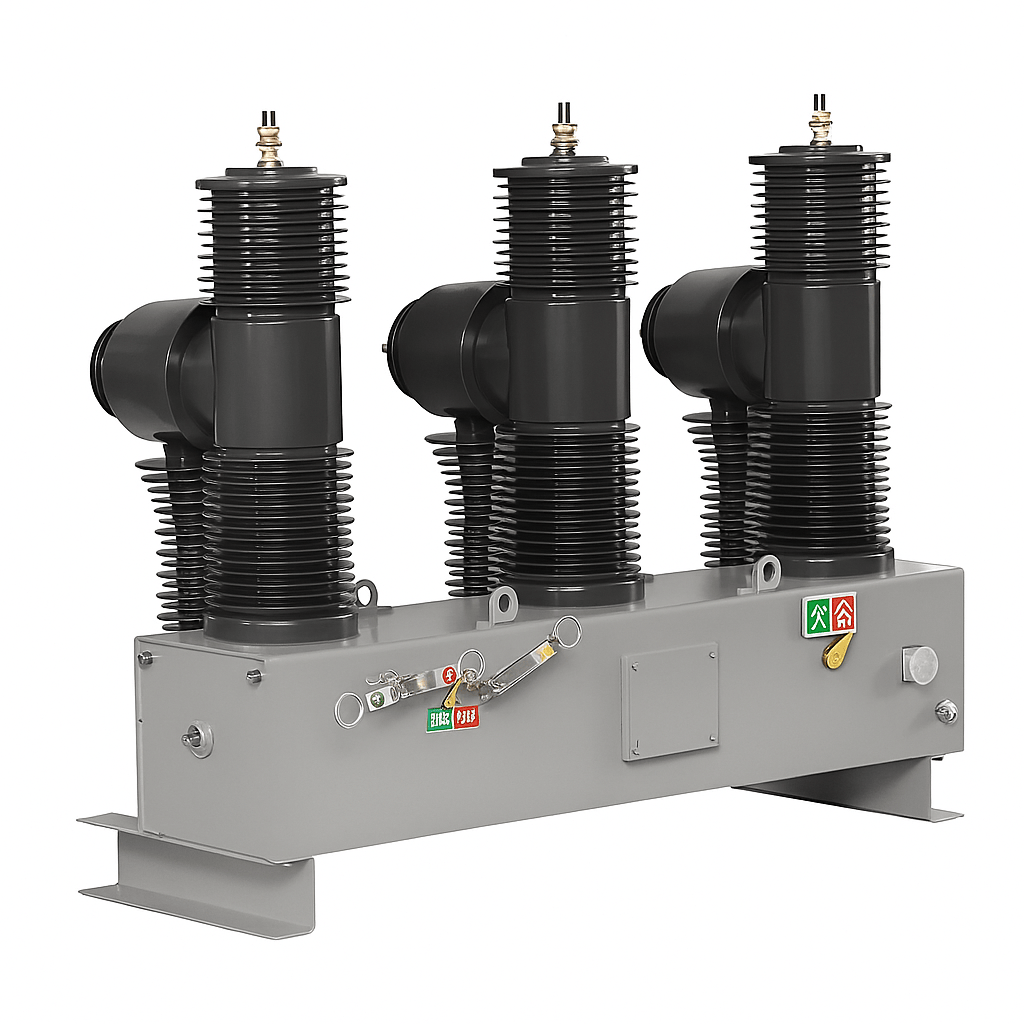

27kV auto recloser​ Vacuum Recloser with Control

⚡ Boost Grid Reliability with 27kV Pole-Mounted Auto Recloser

The 27kV Auto Vacuum Recloser is a smart pole-mounted switching device engineered for automatic fault isolation and self-reclosing in medium-voltage distribution networks. Ideal for 27kV overhead lines, this recloser minimizes service interruptions caused by temporary faults, such as lightning or tree contact.

Manufactured under IEC 62271-111 / IEEE C37.60, the recloser integrates vacuum interrupters, a high-speed control unit, and wireless communication options for SCADA systems. It’s widely used in rural electrification, smart grids, and renewable energy systems.

🔧 Technical Specifications

Parameter	Value
Rated Voltage	27kV
Rated Current	630A / 800A
Short-Circuit Breaking	12.5kA / 16kA
Rated Frequency	50Hz / 60Hz
Rated Insulation Level	60kV/125kV BIL
No. of Reclose Attempts	Configurable (1~4 times)
Control Unit Type	Integrated or Remote
Communication Protocol	IEC 60870-5-101/104, Modbus, DNP3
Operation Mechanism	Motor spring-charged
Ambient Temperature	-40°C to +55°C
Protection Grades	IP65 (Main body), IP67 (Controller)

🌍 Why Utilities Choose This Recloser

• Fast Automatic Fault Isolation
  Detects and isolates transient faults, improving system uptime and reducing truck rolls.

• Vacuum Interruption + Polymer Housing
  Arc-quenching vacuum chambers are combined with weather-resistant, insulated composite material.

• Integrated Smart Controller
  Supports logic reclosing, remote monitoring, event logs, and fault diagnostics.

• Wide Climate Adaptability
  Built for harsh weather, from Canadian winters to Southeast Asian humidity.

• SCADA-Ready
  Seamlessly integrates with utility supervisory control systems.

🚀 Application Scenarios

• Rural Electrification Grids
  Prevents prolonged blackouts in long radial lines.

• Solar/Wind Collector Networks
  Protects feeder lines and enhances grid resilience under variable load.

• Industrial Parks & Data Centers
  Enables rapid fault clearing and minimizes downtime.

• Storm-Prone Utility Regions
  Automatically restores service after lightning-induced trips.

🌟 Verified Customer Feedback

🔹 Claire D. – Asset Manager, Duke Energy (USA)
"Recloser performance is outstanding during storm seasons. Saved us hours of outage each month."

🔹 Jan Eriksson – Lead Engineer, Vattenfall (Sweden)
Operates flawlessly even under snow and ice buildup. Remote diagnostics are accurate."

🔹 Rafael M. – Grid Planner, Energisa Group (Brazil)
"Installation was smooth, and integration with SCADA took under 2 hours. Highly recommended."

🔹 Timothy O. – Procurement Officer, Kenya Power
"We deployed 40+ units across rural grids—no major service calls since deployment."

🔹 Lucy W. – Substation Supervisor, Ausgrid (Australia)
"Helps us meet SAIDI/SAIFI targets by reducing manual switching delays."

❓ FAQ – 27kV Auto Vacuum Recloser

• How many times can it reclose after a fault?
Typically set to 3 or 4 times, programmable through the control panel.

• Can it detect permanent vs. transient faults?
Yes. Smart controller differentiates fault types and locks out on persistent failures.

• Is communication encrypted?
Supported protocols use industry-standard security layers.

• Is the device maintenance-free?
Designed for minimal intervention. Yearly inspection is sufficient in most settings.

• Does it support GPS time-sync?
Yes, GPS-based time synchronization is optional for event tracking accuracy.
