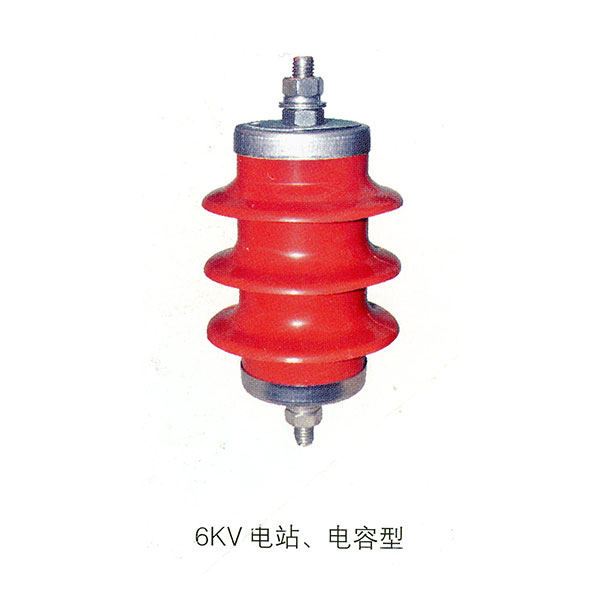

6kV Substation Surge Arrester for Medium Voltage Systems

The 6kV metal oxide surge arrester is designed for indoor and outdoor medium-voltage substations, providing reliable protection against lightning strikes and switching surges. It uses a gapless ZnO varistor core, offering high energy absorption, fast response, and long operational life under polluted or humid conditions.

🔧 Product Overview

This arrester is typically installed on the incoming side of distribution transformers, medium-voltage busbars, or cable terminals to absorb transient overvoltages and prevent insulation breakdown.

Key Features:

Rated voltage: 6kV (effective for 3–6.6kV systems)
Non-linear zinc oxide varistor core
Gapless design ensures rapid discharge without spark gap
Weather-resistant polymer or porcelain housing
Optional leakage current monitoring is available

📐 Technical Specifications

Parameter	Value
Rated Voltage (Ur)	6 kV
Continuous Operating Voltage (Uc)	4.8 kV
Rated Discharge Current (8/20μs)	10 kA
Residual Voltage at 10kA	≤ 18 kV
Leakage Current	≤ 20 μA
Housing Material	Silicone rubber / Porcelain
Installation Type	Flange-mount / Line-post
Altitude	≤ 2000 m
Standards	IEC 60099-4, GB 11032

🌍 Typical Applications

6kV and 6.6kV indoor/outdoor substations
Step-down transformer terminals
Medium-voltage switchgear panels
Railway traction substations
Small hydroelectric stations and rural feeders

📊 Case Study: 6kV Feeder Protection in Poland (2021)

In 2021, 6kV ZnO arresters were deployed in several rural distribution substations operated by Energa Group in eastern Poland.
Highlights:

Reduced transformer failure rate by 43% during storm season
Installed on compact, concrete pole-mounted units
Porcelain model chosen due to extreme cold resistance

Source: Energa Power Distribution Reliability Report, 2021

🛠 Installation Notes

Mount vertically with a proper grounding wire (≤ 4Ω impedance)
Avoid placing under overhead lines without drip cover
Ensure sufficient air clearance around terminals
For indoor use, select housing with an anti-condensation vent
Periodic inspection every 2 years is recommended

❓ Frequently Asked Questions (FAQ)

1. What does a 6kV arrester protect against?
It limits transient overvoltages from lightning or switching events in 6kV systems.

2. Is this suitable for both indoor and outdoor use?
Yes, housing options support both environments—porcelain for harsh conditions, polymer for lightweight use.

3. Can I monitor the condition of the arrester?
Yes, we offer models with leakage current sensors or counters for condition-based maintenance.

4. What’s the lifespan of this arrester?
Typically 10–15 years, depending on environmental stress and surge frequency.

5. Is there a minimum distance required from the equipment?
Yes, maintain standard phase-to-ground clearance per IEC recommendations.
