ZN85C-40.5/T2000-31.5 Indoor 40.5kV Vacuum Circuit Breaker

**Product Overview**

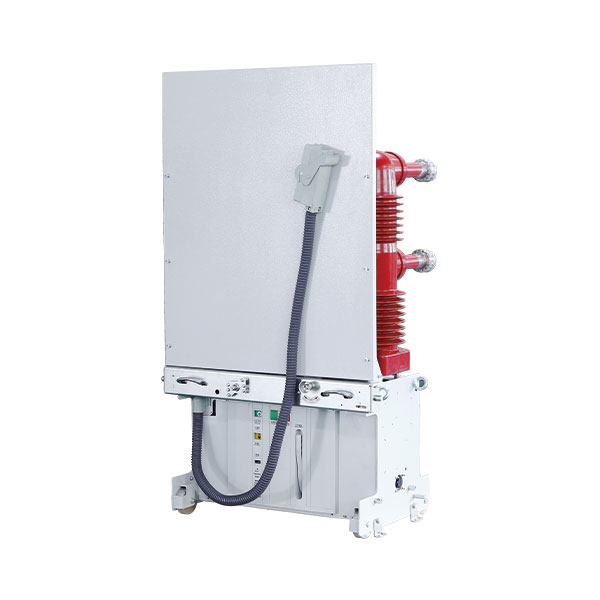

The ZN85C-40.5/T2000-31.5 indoor high-voltage vacuum circuit breaker

is engineered for use in three-phase AC 50Hz power systems with a

rated voltage of 40.5kV. It is widely applied in industrial plants,

mining operations, power stations, and substations for handling

load currents, overloads, and short-circuit interruptions.

Its innovative vertical design—featuring an upper and lower layout

for the vacuum interrupter and operating mechanism—significantly

reduces installation depth, making it ideal for space-constrained

environments.

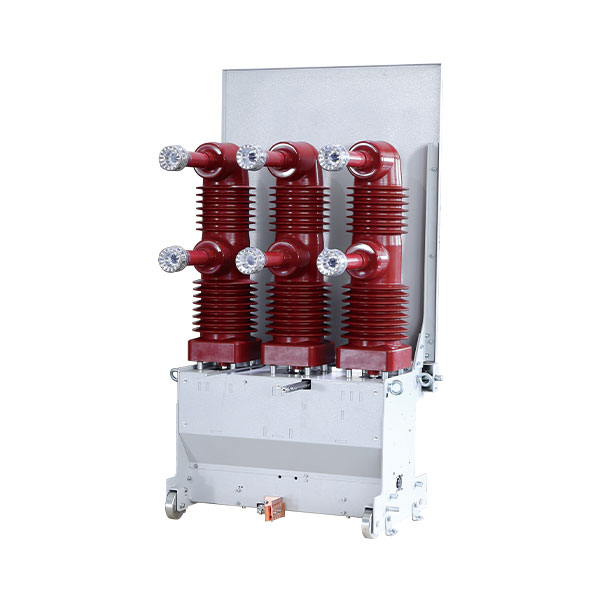

Each phase is isolated using an individual epoxy resin insulation

cylinder, forming a compact composite insulation structure. This

design ensures compliance with air and creepage distance

requirements, while the main circuit’s arc chambers and conductive

interfaces are securely enclosed within the cylinders. A narrow

phase spacing of only 300mm and all-fixed electrical connections

enhance safety and system reliability.

The built-in spring operating mechanism is specially designed to

match the structural and performance needs of 40.5kV vacuum

breakers. Integrated into the breaker frame, this mechanism features

a simplified layout, optimized performance curve, and seamless

compatibility with the breaker’s vertical configuration.

With its compact form factor, reliable switching capability,

low-maintenance design, and resilience under harsh conditions,

this circuit breaker is well-suited for frequent operations in

demanding applications.

Technical Data

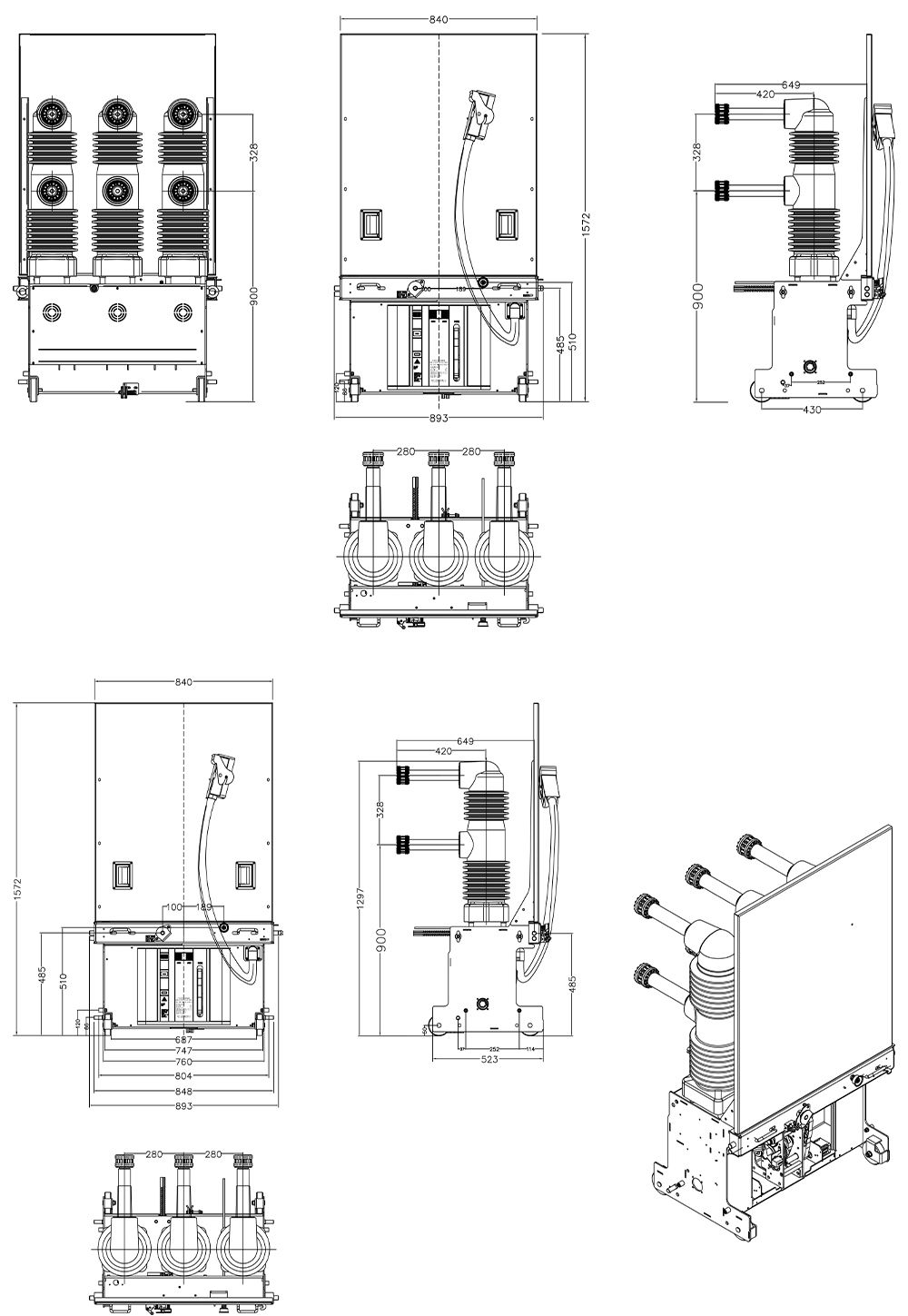

Installation size
