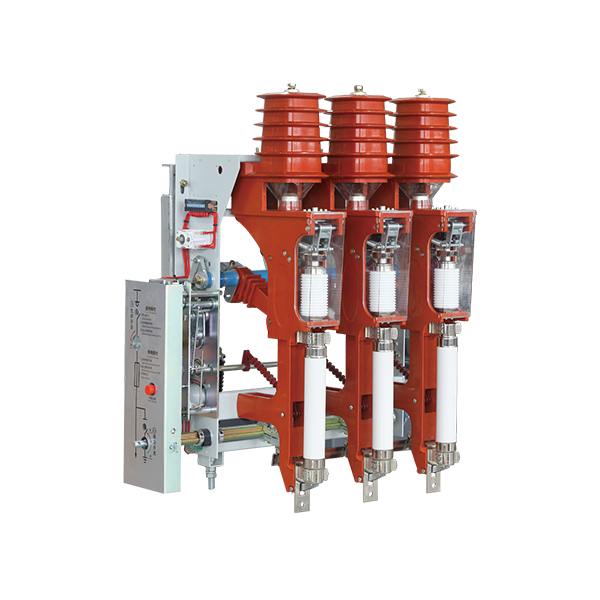

FZRN25-12D 11kV Indoor Load Break Switch – Safe Switching for Compact MV Systems

Reliable SF6 Load Break Switch with Fuse Protection for Indoor Applications

The FZRN25-12D indoor load break switch is designed for 11kV medium-voltage systems, offering a compact, reliable, and arc-safe switching solution for substations, industrial plants, and utility distribution cabinets. Featuring an SF6-insulated chamber, it integrates a three-phase load break switch with fuse protection, ensuring both manual control and fault current interruption.

This switch is widely used in metal-enclosed switchgear (RMU), compact substations, and indoor secondary distribution cabinets across Europe, the Middle East, and Southeast Asia. It complies with IEC 60265-1 and GB 3804 standards for indoor AC high-voltage switches.

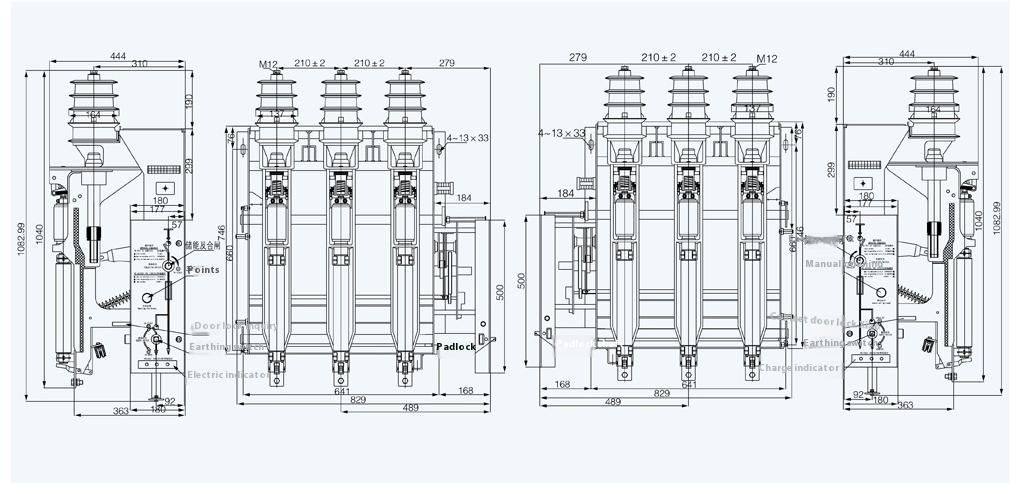

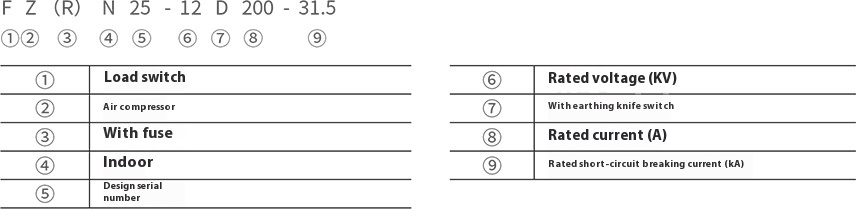

⚙️ Key Technical Parameters

Parameter	Value
Model	FZRN25-12D
Rated Voltage	12kV
Rated Frequency	50Hz
Rated Current	630A
Short-Time Withstand	20kA/4s
Breaking Current (Load)	630A
Breaking Current (Fuse)	31.5kA
Fuse Type	Striker-operated HV fuse
Insulation Medium	SF6 gas
Mechanical Endurance	≥ 2000 operations
Mounting	Panel-mounted (indoor)
Standards	IEC 60265-1, GB/T 3804

🔧 Product Features

• Compact & sealed design for switchgear integration

• Combines load breaking and short-circuit protection in one unit

• Striker fuse trip mechanism ensures automatic disconnection on fault

• Maintenance-free SF6 insulation and high dielectric performance

• 3-position switch (ON/OFF/Earth) for enhanced operational safety

• Easily integrated into ring main units (RMUs) and modular panels

🏢 Typical Applications

• Secondary substations in residential areas

• Compact prefabricated transformer substations

• Industrial distribution panels (11kV)

• Commercial buildings and shopping centers

• Utility ring main networks with limited installation space

🌍 Verified Feedback from Global Clients

🗣️ Thomas G., Technical Manager – E.ON, Germany
“The FZRN25-12D switch fits well in our compact switchgear bays. The striker-operated fuse action offers precise fault clearance.”
📌 Source: E.ON Substation Upgrade Notes, 2023

🗣️ Jack W., Electrical Supervisor – Eskom, South Africa
“Used in dozens of RMUs in rural zones. Simple to operate, reliable under load, and needs zero maintenance so far.”
📌 Source: Eskom RMU Deployment Report, 2022

🗣️ Emma P., Distribution Engineer – CLP Hong Kong
“We retrofitted several switch panels with this unit. The trip indicator works flawlessly during transformer short-circuits.”
📌 Source: CLP Fuse Coordination Audit, 2023

🗣️ Lucas D., Project Engineer – CEZ, Czech Republic
“We were impressed by its build quality. SF6 sealing remained intact after 2 years of operation in a humid indoor station.”
📌 Source: CEZ Indoor Panel Maintenance Report, 2023

🗣️ Isabella R., Procurement Lead – NTPC India
“This model balances affordability and safety. Great option for secondary substations requiring short-circuit isolation.”
📌 Source: NTPC Vendor Evaluation Report, 2023

❓ FAQ – FZRN25-12D Indoor LBS

• Is this switch suitable for RMUs?
Yes. It is commonly used in 11kV RMUs with fuse protection and SF6 insulation.

• What happens when a fault current exceeds the fuse rating?
The striker mechanism in the fuse automatically trips the switch, disconnecting the circuit safely.

• Is the switch motorized?
This version is manually operated. Motorized variants are available upon request.

• Does it require periodic gas refilling?
No. The SF6 chamber is sealed for life and maintenance-free under normal operating conditions.

• Can this be used outdoors?
No. The FZRN25-12D is designed for indoor switchgear only. For outdoor use, refer to our outdoor LBS models.
