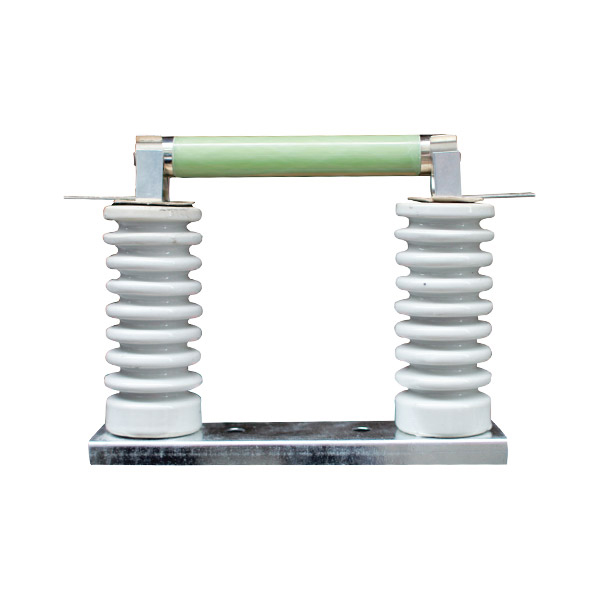

XRNP High Voltage Current-Limiting Fuse

The XRNP High Voltage Current Limiting Fuse is designed to protect high voltage transformers and electrical equipment from short-circuit currents. Engineered for fast response and minimal let-through energy, it ensures safe operation in demanding power environments.

Key Features

I. Rated voltage up to 12kV
II. Fast-acting response to overcurrent and short circuit faults
III. High breaking capacity with minimal energy release
IV. Ceramic body construction ensures high thermal and mechanical strength
V. Compact design suitable for both indoor and outdoor installations

Application Fields

I. Transformer protection in 6~12kV distribution networks
II. Power plant and substation control panels
III. Capacitor bank short-circuit protection
IV. Renewable energy systems and smart grid applications

Built to meet IEC and GB standards, XRNP fuses are trusted for their performance and reliability.
🔗 Request a Quote to get expert guidance and competitive pricing.

XRNP High Voltage Current-Limiting Fuse
