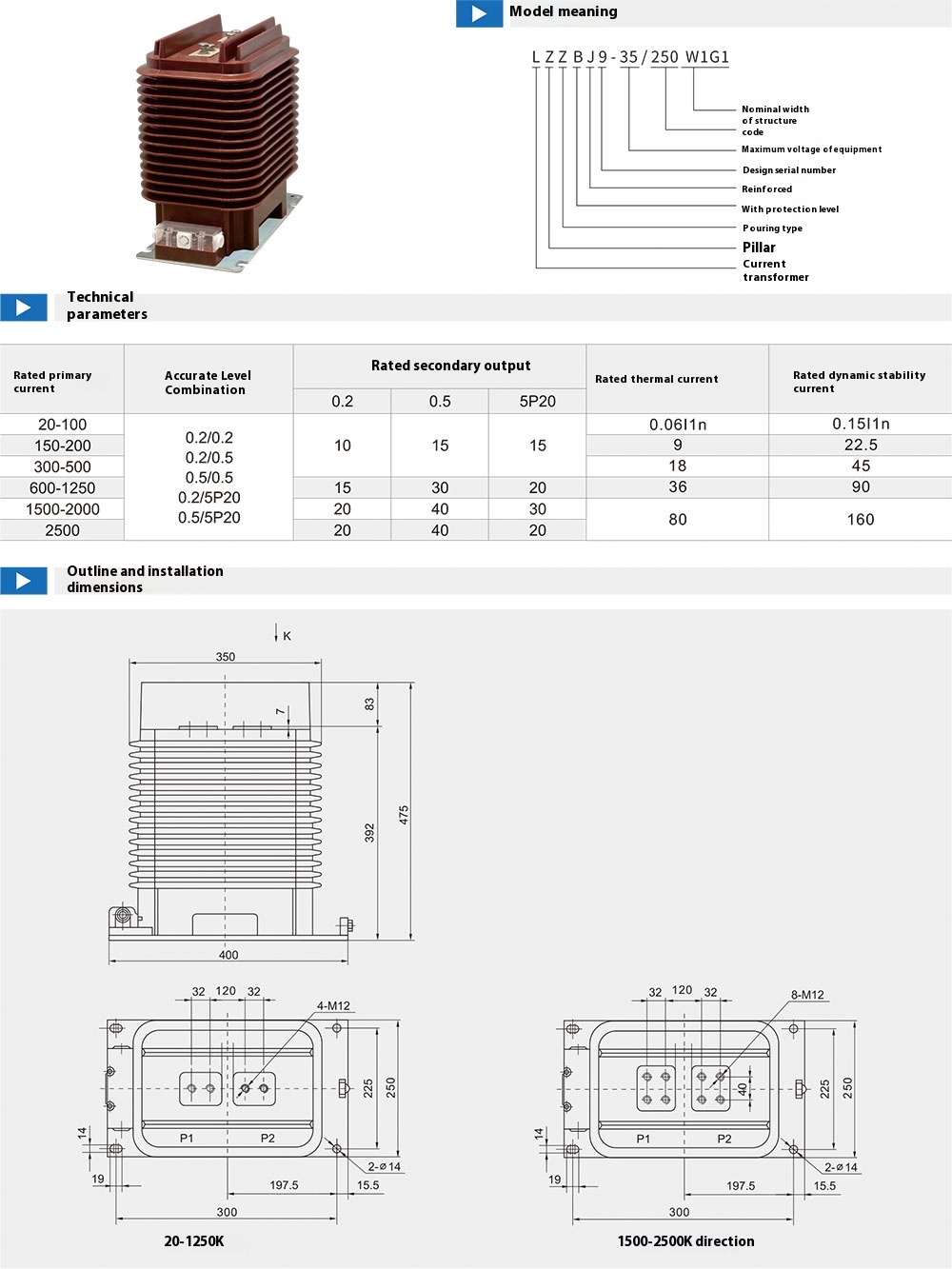

LZZBJ9-35/250W1G1 Current Transformer

The LZZBJ9-35-250W1G1 Current Transformer is engineered for accurate current measurement in 35kV electrical systems. Its cast-resin insulation design ensures high mechanical strength, stable performance, and long-term operation even under harsh environmental conditions.

Key Features

I. Rated voltage: 35kV – ideal for medium and high-voltage grids
II. Epoxy resin cast body with excellent insulation performance
III. High thermal stability, suitable for both indoor and outdoor use
IV. Designed for metering, protection, and control applications
V. Compact structure for easy installation in switchgear and control cabinets

Application Fields

I. Substations and transformer stations
II. Industrial switchgear systems
III. Grid monitoring and relay protection systems
IV. Smart grid and automation projects

🔗 Request a Quote now to enhance your measurement system with precision and reliability.
