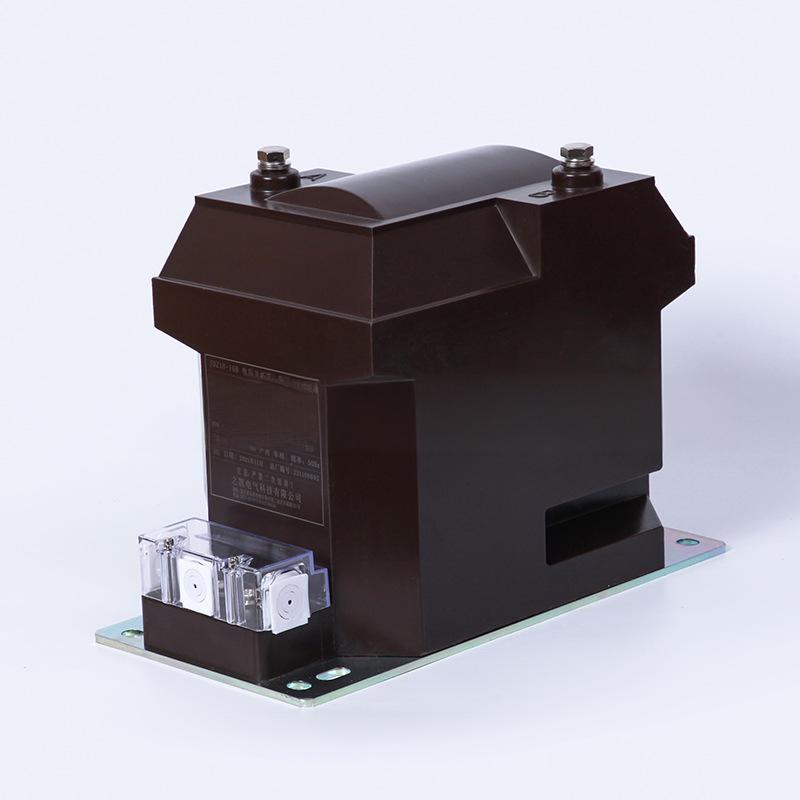

JDZ10-3.6/10 Indoor Voltage Transformer | Epoxy Resin VT

🔍 Compact Indoor Voltage Transformer for 3.6–10kV MV Systems

The JDZ10-3.6/10A1(A2/B) indoor voltage transformer is a single-phase epoxy-resin cast VT designed for indoor medium-voltage power distribution systems ranging from 3.6kV to 10kV. With high accuracy and strong insulation performance, it is ideal for use in switchgear, control panels, metering cabinets, and substations requiring precise voltage monitoring and relay protection.

This model conforms to IEC 60044-2 and GB 1207, and is frequently adopted in urban MV grids and renewable energy projects due to its compact size and fire-resistant epoxy casting.

📐 Technical Parameters

Item	Specification
Model	JDZ10-3.6/10A1 (or A2/B)
Rated Voltage	3.6kV / 6kV / 10kV
Frequency	50Hz
Accuracy Class	0.2 / 0.5 / 1.0 (optional)
Rated Output	10 VA ~ 100 VA
Insulation Material	Epoxy Resin, Flame-Retardant
Installation Position	Indoor, Fixed Mount
Cooling Method	Natural Air Cooled (AN)
Standard Compliance	IEC 60044-2, GB 1207
Pollution Level	II

⚙️ Key Features

High Dielectric Strength
Designed for long-term stability under high insulation stress.
Flame-Retardant Epoxy Casting
Suitable for enclosed switchgear panels with limited ventilation.
Flexible Secondary Configuration
Models available with 1 or 2 secondary windings (A1, A2, or B types).
Compact & Lightweight
Saves panel space, ideal for compact RMU or switchboard integration.
Wide Application Voltage Range
Supports multiple rated voltages from 3.6kV up to 10kV with the same frame.

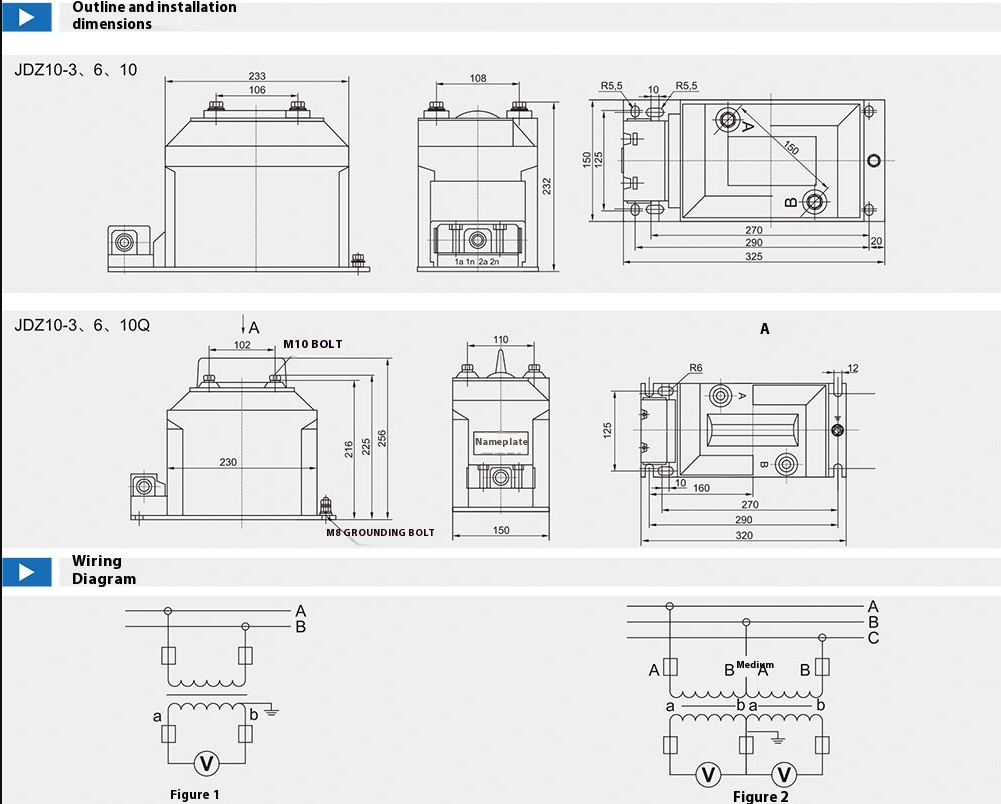

JDZ10-3.6/10 Indoor Voltage Transformer | Epoxy Resin VT

📌 Where JDZ10-3.6/10A1(A2/B) is Commonly Used

Indoor metal-enclosed switchgear
Transformer substations in urban grids
Solar and wind renewable power cabinets
Factory MV distribution panels
Metering and control rooms of industrial plants

🌐 Real Customer Feedback

🔹 Juan M. – Energy Projects Manager, Iberdrola (Spain)
"Stable accuracy even in high humidity environments. Reliable resin casing."

🔹 Clara R. – Procurement Engineer, Hydro One (Canada)
"The JDZ10 VT worked seamlessly with our medium-voltage switchgear upgrades."

🔹 Paul S. – Substation Installer, National Grid UK
"Compact, clean, and safe for confined cabinets. Easy wiring."

🔹 Martin D. – MV Switchgear Designer, Siemens Channel Partner (Germany)
"JDZ10 model fits well with our 6kV VCB panels. Consistent output under load."

🔹 Emily K. – QA Inspector, PowerCo NZ
"We use the A2/B version for dual metering and protection—accurate and stable."

❓ FAQ – JDZ10 Indoor Voltage Transformer

• What’s the difference between A1, A2, and B type suffixes?
These denote different secondary wiring configurations and the number of windings. For example, B-type typically includes an additional protective winding.

• Can this VT be used in metal-clad switchgear?
Yes. The compact epoxy body makes it suitable for enclosed applications.

• Is it oil-free and maintenance-free?
Yes. Fully dry-type epoxy insulation requires no oil or maintenance.

• What is the accuracy class available?
Available in 0.2, 0.5, and 1.0, depending on metering or protection requirements.

• Can this VT support dual output (metering + relay)?
Yes. Dual secondary windings (e.g., A2/B types) enable combined applications.
