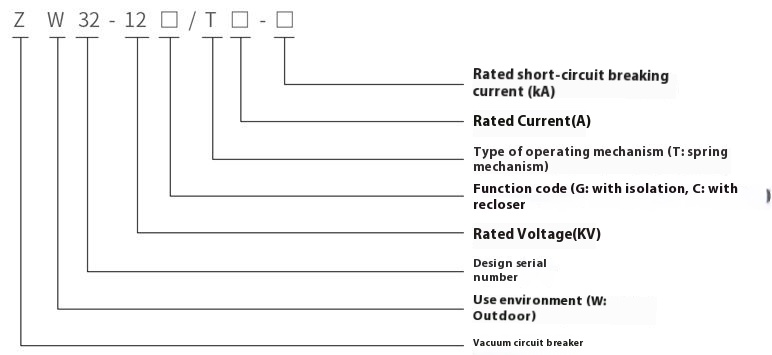

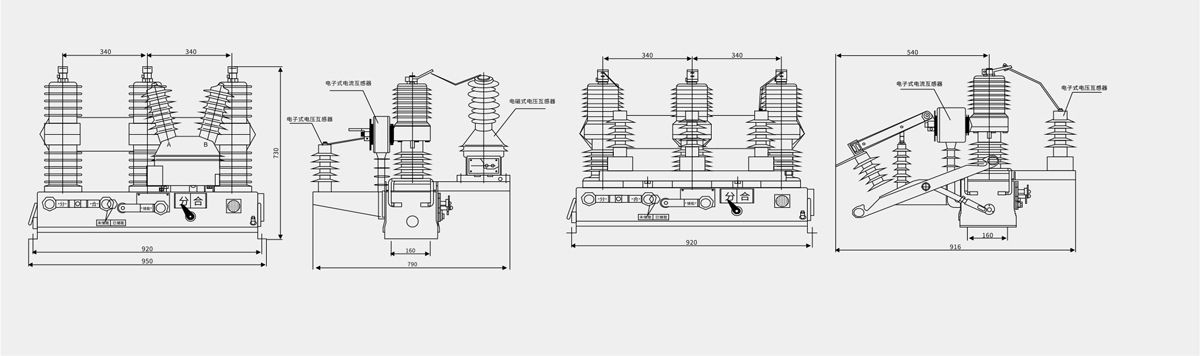

ZW32-12/T Integrated Pole-Mounted Vacuum Circuit Breaker

Compact Outdoor VCB for 11–24kV Distribution Networks

The ZW32 integrated vacuum circuit breaker is engineered for outdoor overhead lines in 11kV to 24kV medium-voltage systems. Its pole-mounted design and integrated control box enable efficient switching, reclosing, and protection in remote or urban power distribution networks. Built for durability in harsh weather, ZW32 breakers are widely installed in rural substations, smart grids, and renewables.

🔹 Key Features and Benefits

• Voltage Ratings: 11kV / 12kV / 24kV

• Breaking Current: Up to 20kA

• Recloser Compatible: Yes, integrates with smart controllers

• Enclosure: Corrosion-resistant stainless steel shell

• Installation: Pole-mounted; compact footprint

• Standards: IEC 62271-100, GB1984 compliant

• Withstand Conditions: Ice, rain, sandstorm, and humidity tested

🔹 Technical Specifications

Parameter	Value
Rated Voltage	12kV / 24kV
Rated Current	630A / 1250A
Breaking Capacity	16kA / 20kA
Operating Mechanism	Spring or motor operated
Insulation Medium	Vacuum interrupter
Mechanical Life	> 10,000 operations
Closing Time	≤ 80 ms
Control Box	Smart controller optional (FTU)

🔹 Where It’s Typically Used

• 🌲 Forested rural grid: Prevents line faults in remote regions

• 🌆 Urban distribution poles: Compact size fits congested areas

• ☀️ Solar & wind substations: Enables sectionalizing and reclosing

• 🏞️ Hilly terrain: Stainless-steel enclosure resists corrosion and lightning

ZW32 VCB is a reliable option when automation, maintenance access, and environmental resistance are key concerns.
