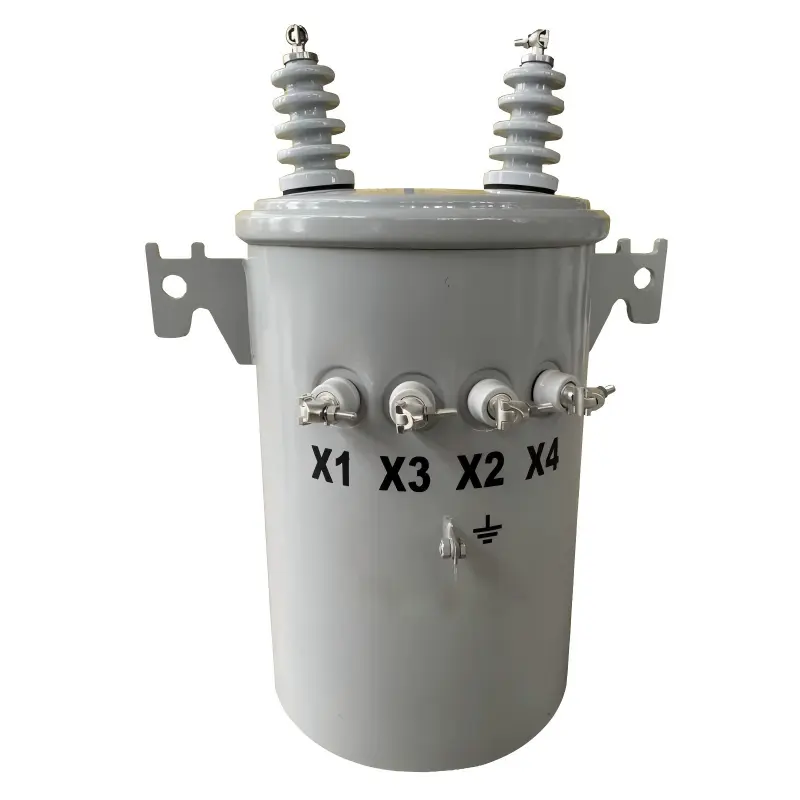

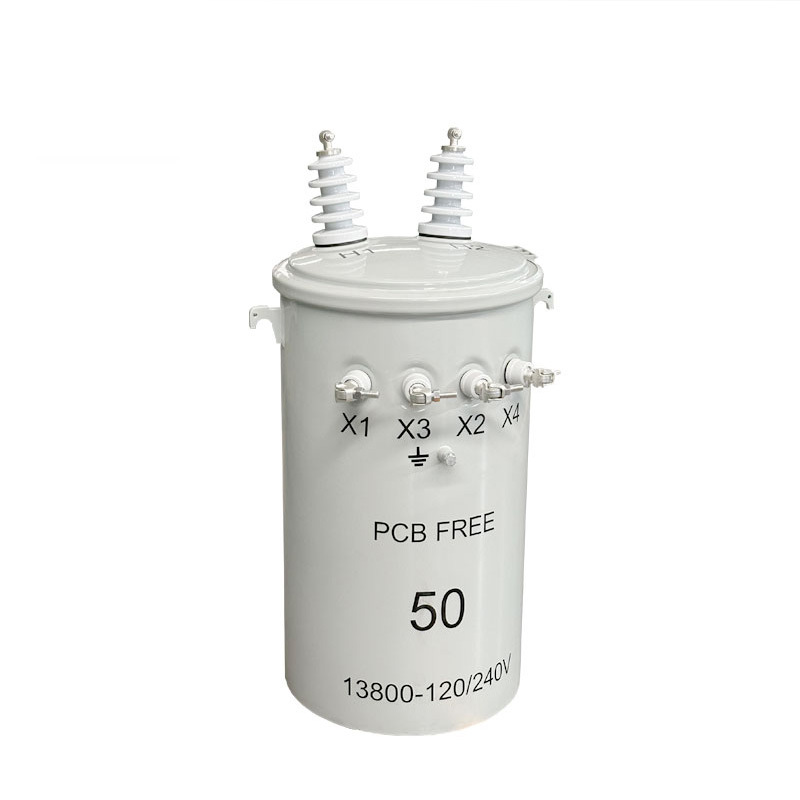

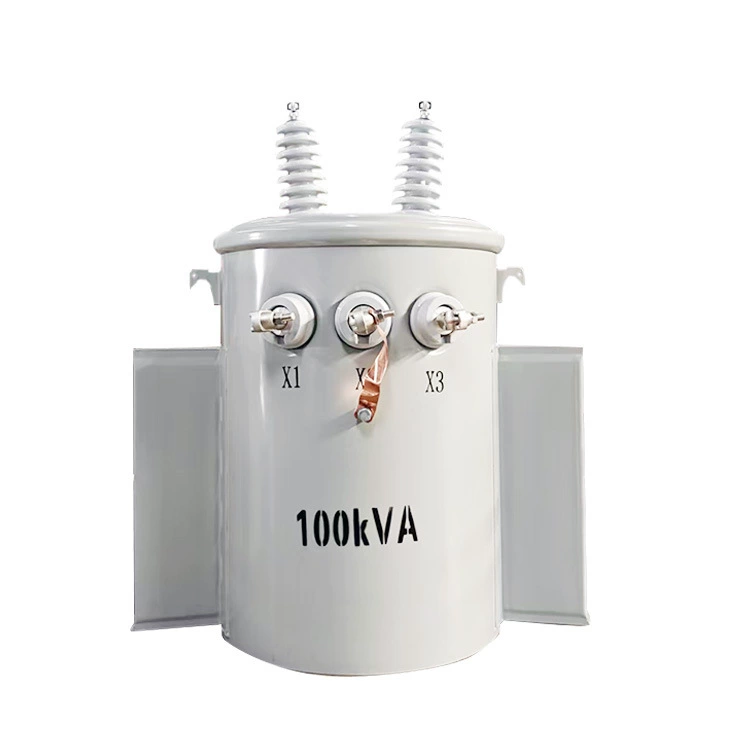

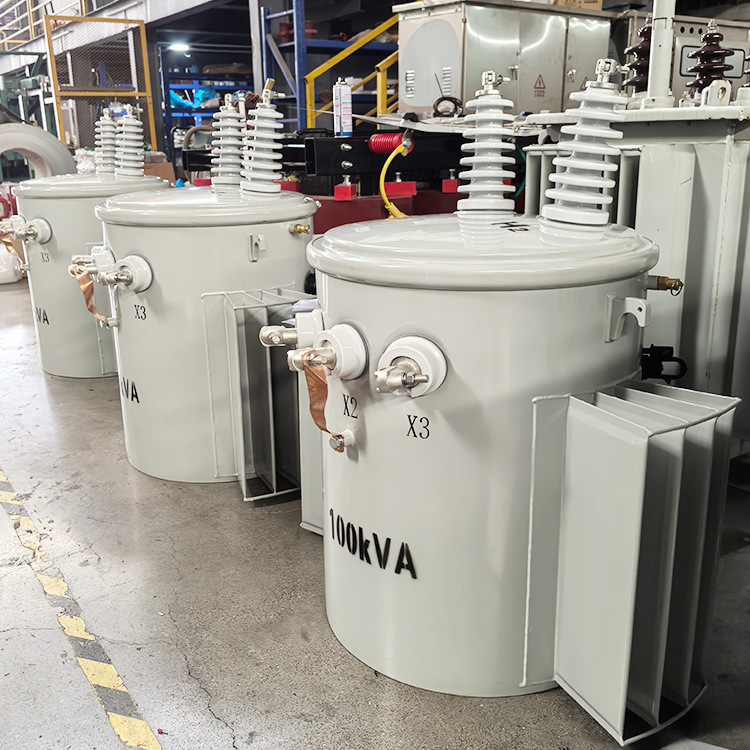

Single Phase Pole Mounted Distribution Transformer

A pole-mounted transformer is an electrical device mounted on a utility pole, designed to step down high voltage from transmission lines to a lower, usable voltage for residential, commercial, or industrial consumers. These transformers are compact, space-saving, and reduce the need for additional infrastructure. Available in a variety of sizes and capacities, typically ranging from a few kVA to several hundred kVA, they are ideal for smaller loads and distribution networks with limited space.

Parameters of single phase pole mounted distribution transformer (silicon steel sheet iron core)
Model	Rated Capacity(kVA)	Voltage (V)			Loss(W)		Dimensions (mm)				Weight (kg)
Model	Rated Capacity(kVA)	H.V.	lap Range	L.V.	No-load	On-load	A	B	C	D	Oil Weight	Total Weight
Dll-3	3	33000 30000 17321 11547 13800 7967 7620 6350	±2x2.5%	120 220 240 250	9	45	800	400	500	300	10	70
Dll-5	5				19	75	860	430	510	340	15	92
Dll-10	10				36	120	910	470	550	380	22	150
Dll-15	15				50	195	970	500	580	410	30	210
Dll-25	25				80	290	1025	550	630	450	45	258
Dll-37.5	37.5				105	360	1225	630	680	520	50	340
Dll-50	50				135	500	1235	630	680	520	62	395
Dll-75	75				190	650	1300	680	720	550	88	480
Dll-100	100				210	850	1350	780	810	610	94	530
Dll-167	167				350	1410	1460	830	890	660	138	680
Dll-250	250				500	2000	1570	960	950	660	250	990
Dll-333	333				650	2500	1660	960	960	660	300	1160

Space Efficiency:

Pole-mounted transformers are compact and directly attach to utility poles, saving valuable ground space. This is especially beneficial in densely populated urban areas or locations with limited land availability.

Cost-Effectiveness:

By utilizing existing poles, installation costs are significantly reduced. There's no need for additional land purchase or transformer stations, cutting capital expenditures and saving on infrastructure costs.

Simplified Installation:

The straightforward mounting process enables quicker and easier installation, reducing deployment times and labor costs.

Scalability:

Pole-mounted transformers come in various sizes and capacities, offering scalability to meet changing loads and future demand without requiring significant infrastructure changes.

Reduced Environmental Impact:

These transformers do not require land clearing or construction, reducing their environmental footprint—an advantage in conservation areas or regions with ecological concerns.
