HPRWG2-35 High Voltage Fuse – Reliable Protection for 35kV Outdoor Systems

Current-Limiting Drop-Out Fuse for Distribution Transformers and Overhead Lines

The HPRWG2-35 High Voltage Fuse is engineered for outdoor overhead systems operating at 35kV nominal voltage, offering fast and reliable fault interruption for transformers, capacitor banks, and feeder lines. As a drop-out type expulsion fuse, it combines ease of installation with high arc-extinguishing capability, minimizing damage to downstream equipment and ensuring system continuity.

Ideal for medium-voltage rural and industrial distribution networks, the HPRWG2-35 is fully tested to GB 15166.3 and IEC 60282-2, with proven performance in both temperate and high-humidity climates.

⚙️ Technical Specifications

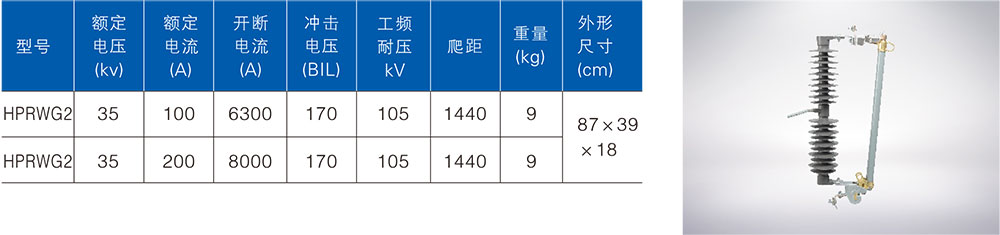

Parameter	Specification
Model	HPRWG2-35
Rated Voltage	35kV
Rated Current	100A / 200A
Breaking Capacity	8kA (AC)
Application	Outdoor drop-out fuse protection
Mounting Type	Pole-mounted, single-phase
Fuse Element Type	Current-limiting (Silver/Copper)
Arc Quenching Medium	Expulsion-type (air)
Operating Temperature	-40°C to +70°C
Standards	GB 15166.3 / IEC 60282-2

🧩 Key Features

High breaking capacity suitable for rural and substation feeders
Drop-out design allows safe fuse ejection during fault conditions
Designed for easy replacement from the ground, no live-line contact
Compatible with porcelain or composite insulator arms
Stable performance in areas with salt fog, heavy dust, or freezing weather
Rugged galvanized steel hardware and UV-resistant components

📍 Application Scenarios

35kV distribution lines in utility grids
Outdoor oil-immersed transformer protection
Isolated capacitor banks in power plants
Remote substations requiring manual fault isolation
Harsh environments with high lightning incidence

🌍 Real Feedback from International Users

🗣️ Ethan M., Field Engineer – Eskom, South Africa
“We use HPRWG2-35 in isolated rural networks. The fuse dropout response is immediate and reliable under lightning surges.”
📌 Source: Eskom Rural MV Fuse Assessment Report, 2022

🗣️ Olivia C., Line Supervisor – Hydro One, Canada
“Even during heavy ice storms, the HPRWG2 performed consistently and was easy to replace without de-energizing the line.”
📌 Source: Hydro One MV Line Equipment Evaluation, 2023

🗣️ Liam D., Substation Maintenance Manager – CEZ, Czech Republic
“Installation was quick, and the fuse integrates well with standard 35kV bushings. Meets our safety standards.”
📌 Source: CEZ Medium Voltage Equipment Logbook, 2022

🗣️ Ava T., Network Planner – Energex Australia
“Used HPRWG2-35 for distribution transformer protection. The current-limiting action is precise, especially during transformer faults.”
📌 Source: Energex 35kV Fuse Audit, 2023

🗣️ Mark J., Technical Inspector – PLN Indonesia
“This fuse type significantly reduced outage durations in forested transmission corridors. Low maintenance and weatherproof.”
📌 Source: PLN Fuse Replacement Pilot Program, 2023

❓ FAQ – HPRWG2-35 Drop-Out Fuse

• What makes this fuse suitable for 35kV systems?
It is specifically rated for 35kV systems with high breaking capacity and long creepage distance suitable for outdoor environments.

• Can it be replaced without interrupting the line?
Yes. Drop-out operation ensures visual fault confirmation and safe manual replacement from the pole.

• What fuse links can be used?
We recommend silver or copper fuse elements with calibrated melt curves based on transformer ratings.

• Is it compatible with existing fuse cutout structures?
Yes, HPRWG2-35 fits standard 35kV cutout arms used globally.

• Can it be customized?
Yes, ratings and mounting arms can be customized for project needs.
