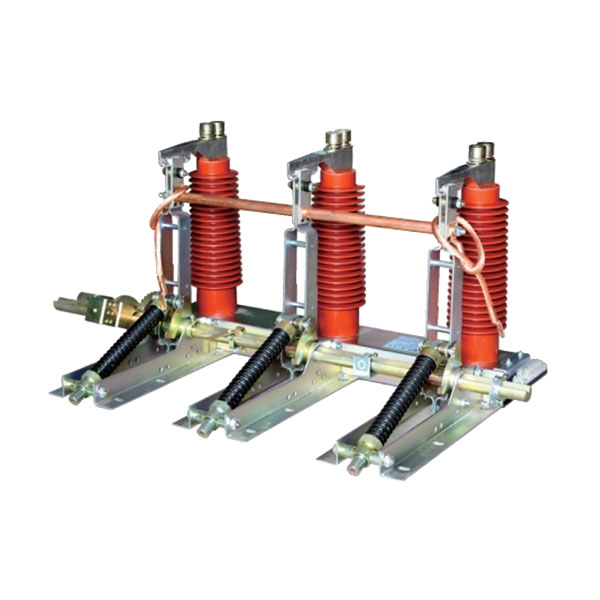

JN22-40.5/31.5 Indoor High Voltage Grounding Switch in 35kV Systems

In the complex world of high-voltage power distribution, safety is not merely a feature—it is the paramount requirement. The JN22-40.5/31.5 Indoor High Voltage Grounding Switch from Weisho Electric Co., Ltd. is meticulously engineered to provide the ultimate safeguard for 35kV switchgear, substations, and industrial power systems. This essential safety device ensures the rapid and reliable discharge of residual charges to ground, preventing accidental re-energization and protecting both personnel and equipment during maintenance, repairs, and system outages.

Built upon 12 years of specialized expertise, our JN22-40.5/31.5 grounding switch is more than just a component; it's a critical link in your power system's safety chain. Designed for indoor applications, its robust construction and precision engineering guarantee stable operation even under demanding conditions, offering peace of mind and strict adherence to international safety standards.

Operational Overview: JN22-40.5/31.5 High Voltage Grounding Switch [Video]Watch a demonstration of the JN22-40.5/31.5 grounding switch in action. Understand its robust mechanical interlock system, smooth operation, and critical role in ensuring safety within your 35kV switchgear.

Key Features & Technical Superiority: Designed for Maximum Safety and Performance

The JN22-40.5/31.5 Indoor High Voltage Grounding Switch incorporates advanced design principles and superior materials to deliver unparalleled safety and operational efficiency:

• 1. Robust Mechanical Interlock System:

• Technical Detail: Features a sophisticated mechanical interlock that physically prevents incorrect operations. This includes interlocks with circuit breakers or disconnector switches, ensuring that the grounding switch can only be closed when the main circuit is safely disconnected.

• Benefit: Eliminates human error in critical operations, drastically reducing the risk of accidental electrification and protecting maintenance personnel, which is paramount for high-voltage environments.

• 2. Exceptional Short-Circuit Withstand Capability:

• Technical Detail: Designed to withstand high short-circuit currents (up to 31.5kA for 4 seconds peak current of 80kA) ensuring it can safely conduct fault currents to ground without damage or failure.

• Benefit: Provides reliable protection for the entire power system during abnormal conditions, preventing catastrophic failures and minimizing equipment damage, thereby enhancing system stability and longevity.

• 3. High-Performance Contact System:

• Technical Detail: Utilizes high-conductivity, wear-resistant contact materials and optimized contact pressure, ensuring low contact resistance and excellent electrical conductivity throughout its operational life.

• Benefit: Minimizes energy loss, prevents localized overheating, and ensures reliable grounding connection every time, contributing to overall system efficiency and long-term reliability.

• 4. Durable and Corrosion-Resistant Construction:

• Technical Detail: Key components are made from high-strength, anti-corrosion materials with advanced surface treatments, designed for indoor environments.

• Benefit: Guarantees extended service life and consistent performance even in environments with varying humidity or potential corrosive elements, reducing maintenance frequency and replacement costs.

• 5. Compact Design for Integrated Switchgear:

• Technical Detail: Optimized dimensions and mounting configurations allow for seamless integration into 35kV indoor switchgear panels and compartments.

• Benefit: Maximizes space utilization within substations, simplifies panel design, and facilitates efficient assembly, making it an ideal choice for modern, compact power distribution units.

Applications: Critical Safety Across Industries

The JN22-40.5/31.5 Indoor High Voltage Grounding Switch is an indispensable component in any 35kV indoor power system where safety and reliability are paramount. Its applications include:

• 35kV Indoor Switchgear: A vital safety component for medium-voltage switchgear in substations and power distribution centers, ensuring safe isolation and grounding for maintenance.

• Power Plants: Used in auxiliary power systems and switchyards to provide secure grounding paths for generators and transmission lines during shutdown.

• Industrial Facilities: Critical for large industrial users, manufacturing plants, and mining operations, protecting personnel and equipment during electrical system servicing.

• Commercial Buildings & Data Centers: Ensures safe power distribution within the medium-voltage infrastructure of large commercial complexes and mission-critical data centers.

• Renewable Energy Integration: Provides a safe disconnecting and grounding point for medium-voltage lines connecting to renewable energy sources like solar farms or wind power substations.

Case Study Snippet: Ensuring Safety in a Philippine Industrial ComplexOur JN22-40.5/31.5 grounding switches were successfully integrated into the 35kV switchgear of a large industrial complex in the Philippines. The client required a robust, reliable, and space-efficient safety solution. The JN22-40.5's compact design and verified safety interlocks streamlined installation and significantly enhanced the overall operational safety protocols, earning high praise for its performance and ease of integration.

Technical Specifications & Environmental Conditions

To ensure precise integration and performance, please refer to the detailed technical parameters and environmental conditions for the JN22-40.5/31.5 Indoor High Voltage Grounding Switch.

Table 1-2 Environmental Conditions

Key Component Parameters (JN22-40.5/31.5)

Quality Assurance & Certifications

At Weishou Electric, the safety and reliability of our products are paramount. The JN22-40.5/31.5 Indoor High Voltage Grounding Switch undergoes rigorous testing and adheres to stringent international quality standards, including:

• ISO 9001 Quality Management System: Our manufacturing processes are certified to ensure consistent product quality.

• IEC Standards Compliance: Designed and tested by relevant International Electrotechnical Commission (IEC) standards for high-voltage switches.

• [Placeholder for specific national/regional certifications, e.g., CE, UL, etc. if applicable]: [Insert specific certification names and logos here].

Installation and Maintenance Guidelines

For optimal performance and longevity of your JN22-40.5/31.5 Grounding Switch, adhere to our professional installation and maintenance guidelines. We provide comprehensive manuals and expert technical support to ensure safe and efficient integration and long-term reliable operation within your high-voltage switchgear.

Frequently Asked Questions (FAQ)

We've compiled some common and critical questions about the JN22-40.5/31.5 Indoor High Voltage Grounding Switch to assist you:

• Q1: What is the primary function of the JN22-40.5/31.5 grounding switch, and why is it essential for 35kV systems?

• A1: The primary function is to provide a safe, visible, and reliable grounding path for high-voltage circuits (up to 35kV) after they have been de-energized. It's essential to rapidly discharge any residual voltage and prevent accidental re-energization during maintenance or repair work, thereby ensuring the safety of personnel and preventing equipment damage.

• Q2: How does the mechanical interlock system of this switch enhance safety?

• A2: The mechanical interlock system is a critical safety feature that physically prevents incorrect operational sequences. For instance, it ensures the grounding switch cannot be closed if the circuit breaker is still closed, or that the circuit breaker cannot be closed if the grounding switch is engaged. This robust design significantly minimizes human error, making high-voltage operations much safer.

• Q3: Can the JN22-40.5/31.5 be integrated into existing switchgear or is it only for new installations?

• A3: While ideal for new 35kV indoor switchgear installations due to its optimized design, the JN22-40.5/31.5 is also suitable for retrofitting into compatible existing switchgear panels, provided there is adequate space and design compatibility. We recommend consulting our technical team for specific integration assessments.

• Q4: What is the expected service life and typical maintenance requirements for this grounding switch?

• A4: Designed for long-term reliability and durability, the JN22-40.5/31.5 typically has a service life exceeding 20 years under normal operating conditions. Routine maintenance is generally minimal, focusing on periodic visual inspections, cleaning of insulators, and verification of mechanical operation. Detailed maintenance schedules are provided in the product manual.

• Q5: Is this grounding switch suitable for highly polluted indoor environments?

• A5: Yes, with a pollution level rating of 'e' and a creepage distance of ≥ 1.6 cm/kV, the JN22-40.5/31.5 is designed to perform reliably in indoor environments with moderate pollution. For extremely harsh or unique indoor conditions, please discuss your specific requirements with our engineers for tailored recommendations.

Customer Testimonials / Reviews

Hearing directly from our satisfied clients reinforces the trust and reliability associated with our JN22-40.5/31.5 High Voltage Grounding Switch.

• "Implementing Weishou Electric's JN22-40.5 grounding switches in our new 35kV substation significantly improved our safety protocols. The engineers appreciated the reliable mechanical interlocks and robust construction. A top-tier product for critical applications."

• — Mr. David Smith, Chief Safety Officer, Regional Power Grid Corp.

• "We chose the JN22-40.5 for its proven reliability and compact design, which seamlessly integrated into our industrial switchgear. Weishou Electric's technical support was excellent throughout the installation process. Highly recommended for any high-voltage system."

• — Ms. Sarah Khan, Electrical Project Lead, Global Manufacturing Solutions

• "The durability of the JN22-40.5 in challenging indoor environments has been exceptional. Its ability to withstand high short-circuit currents gives us complete confidence in our power system's safety. Weishou Electric truly delivers on its promise of quality."

• — Dr. Anya Sharma, Head of Engineering, Green Energy Solutions Inc.
