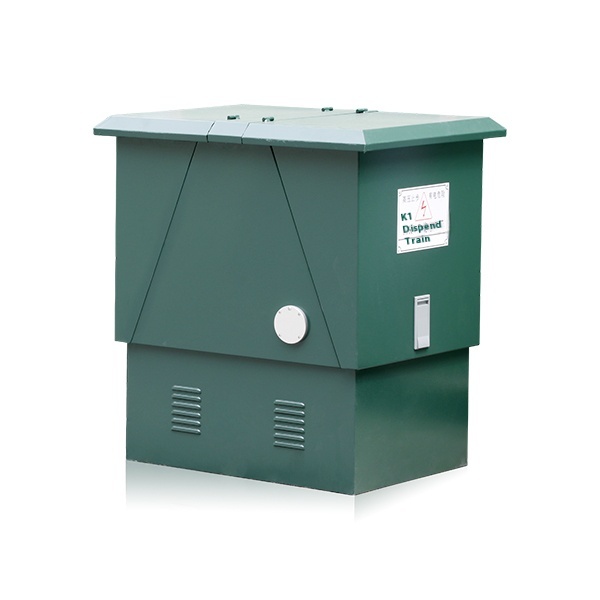

DWF-12 European Style Cable Distribution Box

 Overview

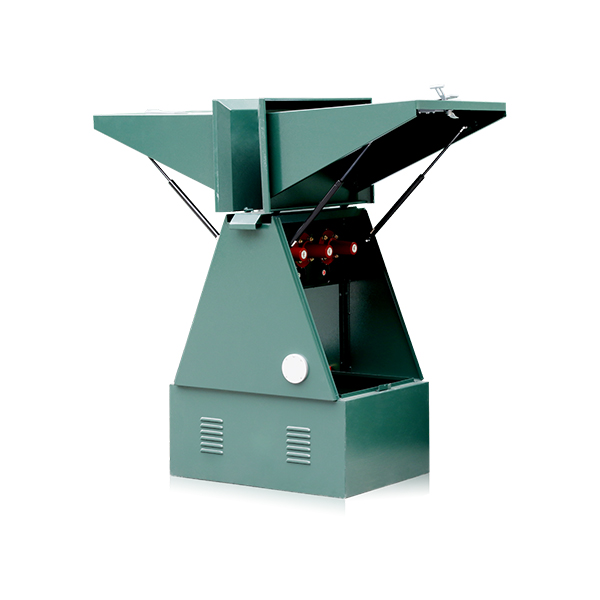

The DWF-12 Outdoor AC Cable Distribution Box has been widely used in cable engineering equipment within the power distribution network system in recent years. Its main features include double-sided opening doors and the use of butt - joint sleeves as connecting busbars. It offers advantages such as a compact size, clear cable arrangement, and the elimination of the need for large-span crossings of three-core cables. The cable joints employed in this distribution box comply with the DIN47636 standard. Generally, bolt-fixed connecting cable joints with a rated current of 630A are utilized.

Normal Service Environment

Ambient temperature: The highest air temperature is +40℃, and the lowest air temperature is -30℃. Wind speed: Equivalent to 34m/s (not greater than 700Pa) Humidity: The average daily relative humidity is not more than 95%, and the average monthly relative humidity is not more than 95%. Shock resistance: The horizontal acceleration is not more than 0.4m/s², and the vertical acceleration is not more than 0.15m/s². Inclination of the installation site: Not more than 3°. Installation environment: The surrounding air should not be significantly polluted by corrosive, flammable gases, water vapor, etc., and there should be no violent vibration at the installation site. If the order of this product exceeds the above - specified conditions, please consult with our company.
