JMB Series Low Voltage Landscape Lighting Transformer – NEMA 3R
Product Overview
The JMB Series Low Voltage Landscape Lighting Transformer is specially designed for indoor and outdoor low-voltage lighting applications. Featuring a NEMA 3R weather-resistant enclosure, it supports 380V/220V input voltage and customizable 36V/24V/12V output voltages. With power capacities ranging from 500VA to 15KVA, it is widely used in construction sites, tunnels, roads, factories, dormitories, landscape lighting, and machinery lighting systems.
This transformer provides safe, stable, and reliable low-voltage power supply for various lighting applications.
Key Features & Advantages
1. Safe and Durable Structural Design
Flame-Retardant Metal Enclosure
Constructed with thick cold-rolled steel plates, the enclosure offers excellent fire resistance, impact resistance, and corrosion protection. Multi-side ventilation louvers improve heat dissipation and moisture resistance, ensuring long service life in demanding outdoor environments.

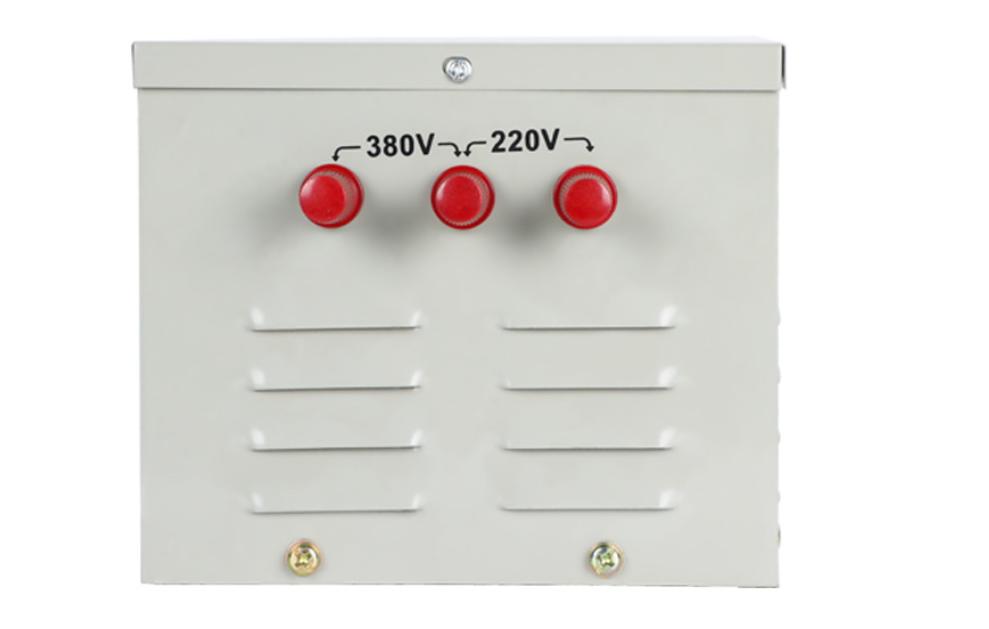

Clearly Marked Wiring Terminals
Input and output terminals are clearly labeled (such as 380V, 220V, 12V, etc.), making installation simple and convenient. The transformer supports quick external wire connection for plug-and-use operation.
Portable Handle Design
Integrated side handles make transportation, installation, and maintenance easier, especially suitable for temporary lighting applications on construction sites and tunnels.
2. Reliable Materials & Manufacturing

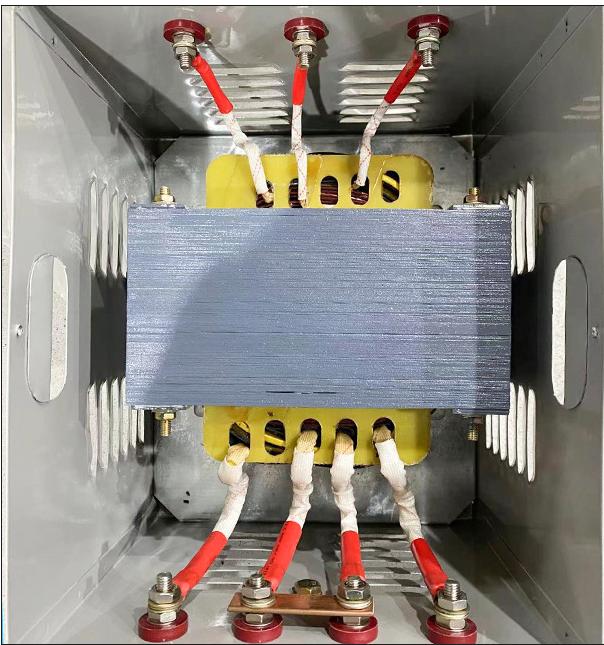

High-Quality Silicon Steel Core
Built with tightly laminated premium silicon steel sheets to reduce no-load losses and maintain stable voltage transmission. The transformer delivers clean power output with minimal waveform distortion.
High-Temperature Resistant Wiring
Internal wiring uses heat-resistant conductors combined with durable terminal blocks, ensuring stable long-term performance and reduced failure risks under continuous operation.
3. Flexible Electrical Configuration
| Item | Specification |
|---|---|
| Product Model | JMB Series |
| Input Voltage | 380V / 220V |
| Output Voltage | 36V / 24V / 12V (Customizable) |
| Rated Capacity | 500VA ~ 15KVA |
| Frequency | 50/60Hz |
| Ambient Temperature | -5°C ~ 40°C |
| Relative Humidity | ≤90% |
| Temperature Rise | ≤60°C |
| Protection Rating | NEMA 3R |
Applications
Outdoor Applications
Landscape lighting
Road lighting
Construction site lighting
Tunnel lighting
The NEMA 3R enclosure protects against rain and dust, making it ideal for outdoor environments.
Indoor Applications
Workshop lighting
Dormitory lighting
Machinery lighting
Provides safe low-voltage power supply and reduces electric shock risks.
Industrial & Temporary Power Environments
Suitable for humid, dusty, and temporary industrial environments thanks to its moisture-resistant, flame-retardant, and impact-resistant design.
Product Highlights
✅ Customizable voltage and power ratings for different lighting systems
✅ NEMA 3R weatherproof enclosure for indoor and outdoor use
✅ Flame-retardant housing with efficient heat dissipation
✅ Premium silicon steel core and heat-resistant wiring for stable performance
✅ Clearly labeled terminals and portable handles for easy installation and maintenance
