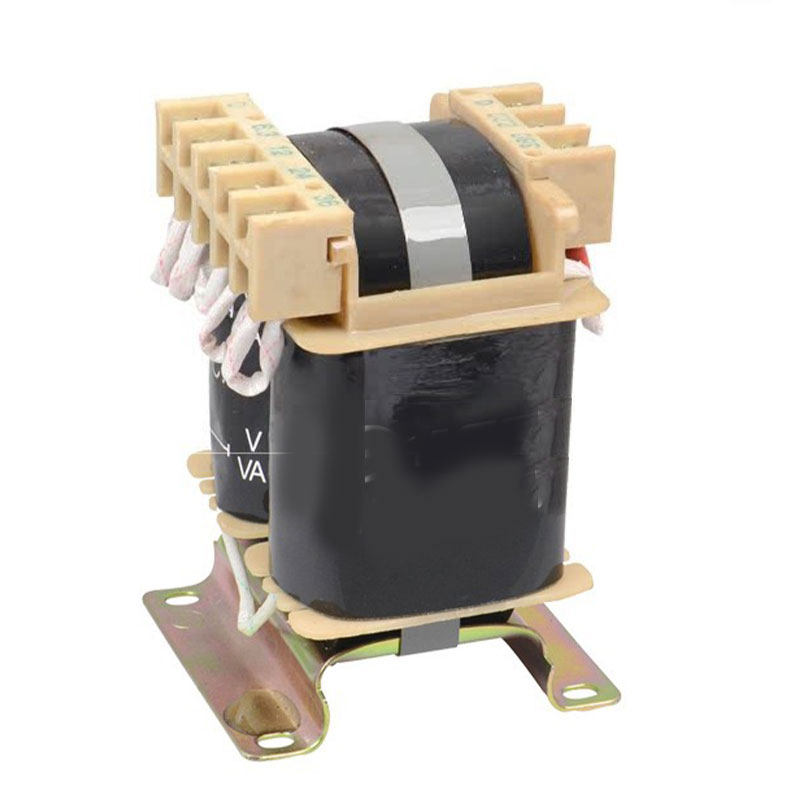

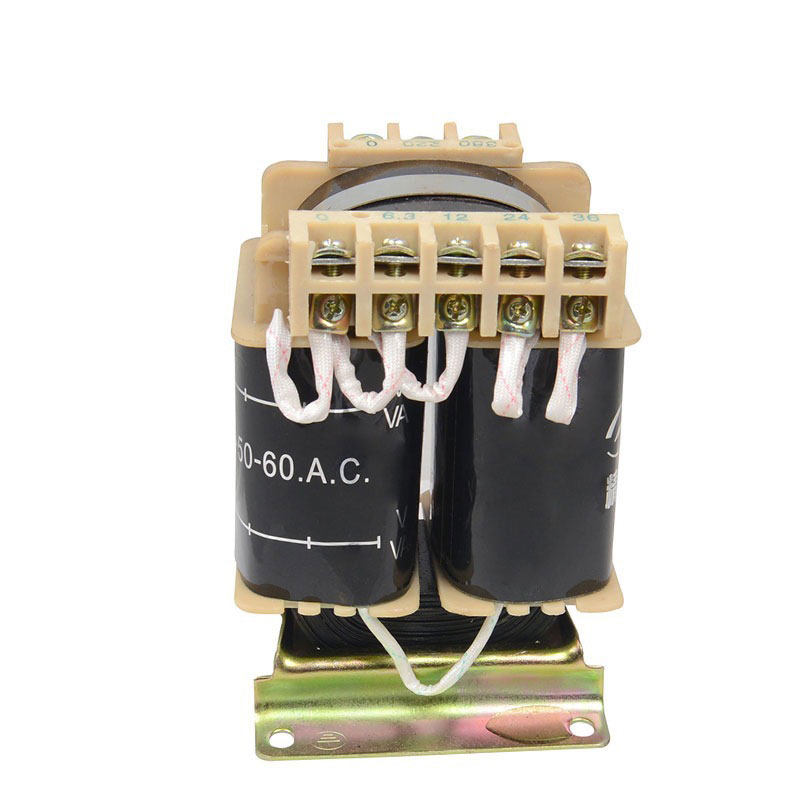

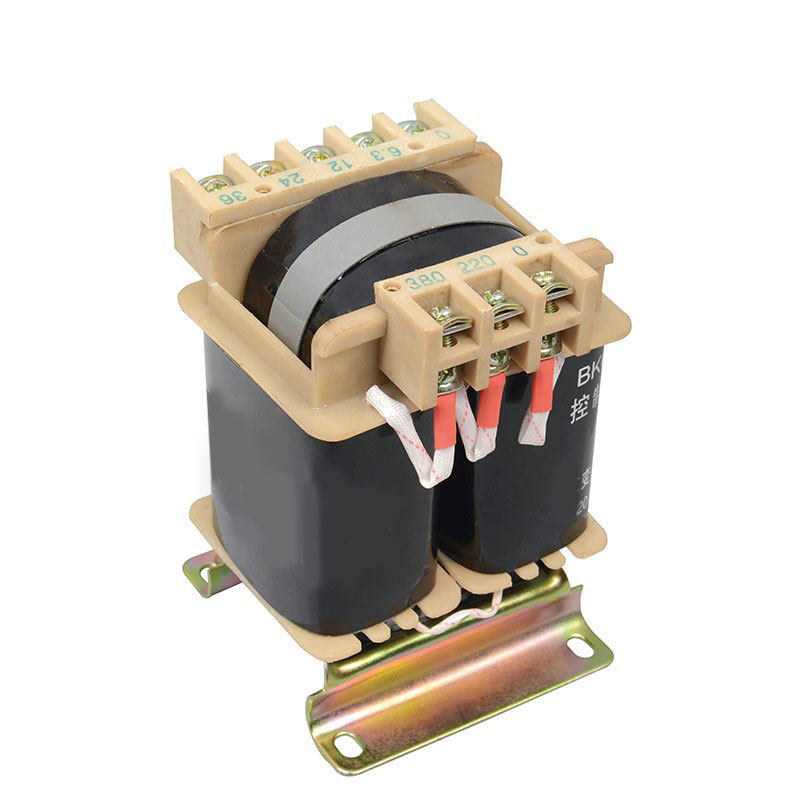

Product Overview

The BKC Series Epoxy Resin Encapsulated Mining Control Transformer is specially designed for mining equipment, underground power systems, and harsh industrial environments. Featuring a low-loss C-core structure, 100% copper winding, and full epoxy resin encapsulation process, the transformer offers excellent moisture resistance, dust protection, insulation performance, and operational stability.

It is widely used as a reliable control power supply for mining equipment control circuits, underground lighting systems, signal lamps, and industrial electrical systems operating in demanding environments.

Key Features

High-Performance C-Core Design

The transformer adopts a high-efficiency C-type wound silicon steel core with optimized magnetic circuit design for stable and energy-saving operation.

Advantages include:

• Lower magnetic loss

• Higher operating efficiency

• Reduced heat generation

• Low operating noise

• Stable continuous-duty performance

The core is manufactured from premium new silicon steel laminations with excellent oxidation resistance and long service life.

Compared with traditional laminated cores, the C-core structure provides:

• More compact size

• Better magnetic performance

• Improved structural strength

• Easier installation in compact control cabinets

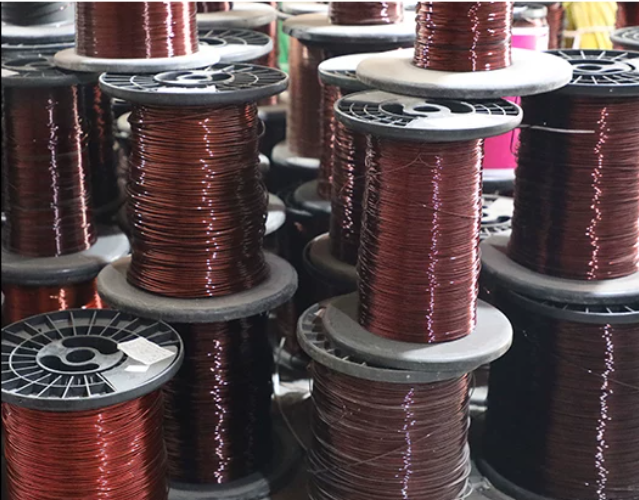

100% Copper Winding — Full Rated Power

The BKC transformer uses high-purity copper enameled wire winding with no aluminum substitution.

Benefits:

• Excellent electrical conductivity

• Low resistance

• Strong load capacity

• Stable voltage output

• Reduced voltage drop

• Lower operating temperature rise

The winding adopts precision compact winding technology to ensure accurate voltage transformation and reliable long-term operation.

Epoxy Resin Encapsulation for Harsh Environments

The transformer is fully encapsulated with high-quality epoxy resin, sealing both the winding and core structure completely.

Moisture & Dust Protection

The encapsulated structure effectively isolates:

• Underground humidity

• Water vapor

• Dust

• Corrosive gases

This greatly improves insulation performance and operational reliability in mining environments.

Anti-Vibration & Impact Resistance

After curing, the epoxy resin firmly secures the internal structure, helping the transformer withstand:

• Equipment vibration

• Mechanical shock

• Transportation impact

This reduces risks of:

• Coil breakage

• Core loosening

• Internal structural damage

Flame-Retardant & Enhanced Safety

The epoxy encapsulation material features excellent flame-retardant performance, helping reduce fire risks caused by short circuits or harsh underground operating conditions.

Suitable for:

• Mining systems

• Underground electrical equipment

• Harsh industrial environments

Flexible Custom Voltage & Capacity Options

Multiple Voltage Configurations

Input and output voltages can be custom-designed according to application requirements.

Supported input voltages:

• 110V

• 120V

• 220V

• 380V

Supported output voltages:

• 6V

• 12V

• 24V

• 36V

• 110V

Suitable for various mining equipment and industrial control systems.

Wide Capacity Range

Multiple rated capacities are available, including popular models such as:

• 100VA

• Custom larger capacities

Suitable for:

• Single control circuits

• Multi-circuit systems

• Lighting applications

• Signal systems

Designed for Demanding Industrial Conditions

The BKC mining control transformer is designed for stable operation under harsh environmental conditions.

Operating conditions:

• Ambient temperature: -25℃ to +40℃

• Relative humidity: ≤95%

• Altitude: ≤2000m

• Frequency: 50/60Hz

The transformer maintains stable performance under humid, dusty, and temperature-variable mining environments.

Safe Wiring & Convenient Installation

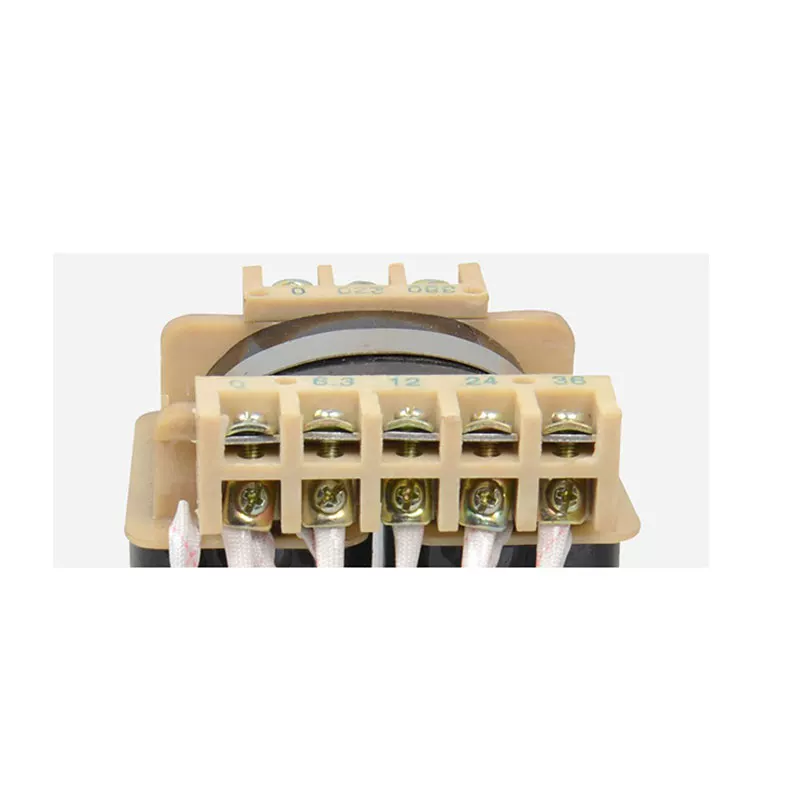

Insulated Flame-Retardant Terminals

The transformer adopts high-quality insulated terminals with flame-retardant protective housing.

Features:

• Stable electrical connection

• Reduced dust intrusion

• Improved operational safety

• Convenient wiring installation

Flip-Cover Protective Design

The protective cover design helps:

• Reduce dust accumulation

• Improve maintenance safety

• Protect wiring terminals

Technical Specifications

Typical Applications

The BKC Epoxy Encapsulated Mining Control Transformer is widely used in:

• Mining equipment

• Underground power systems

• Mining control cabinets

• Signal lighting systems

• Underground machinery

• Industrial automation systems

• Harsh industrial environments

• Machine control circuits

Why Choose BKC Mining Control Transformers?

• Low-loss C-core design

• Genuine 100% copper winding

• Full epoxy resin encapsulation

• Excellent moisture and dust protection

• Flame-retardant safety structure

• Strong anti-vibration performance

• Stable operation in harsh environments

• Flexible custom voltage solutions

Custom Service

We provide custom solutions, including:

• Input/output voltage

• Capacity range

• Terminal structure

• Mounting design

• OEM branding

• Mining project customization

Contact us for technical support, product drawings, and a quotation.
